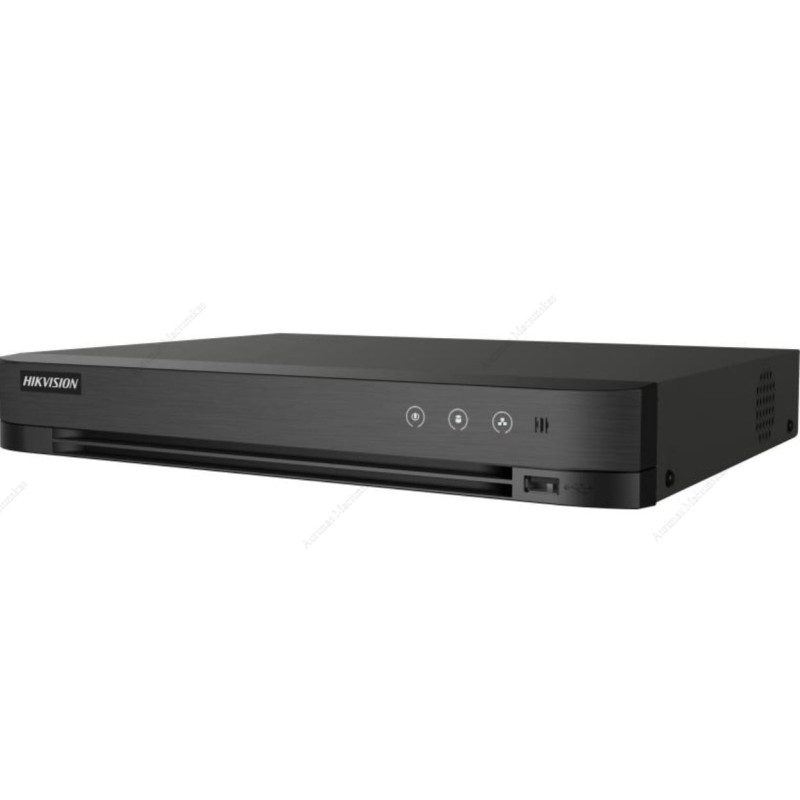

4-channel DVR Hikvision iDS-7204HTHI-M1/S
Product reference:
26-6931847160357
- 4 channels and 1 HDD 1U AcuSense DVR
- Reducing false alarms using deep learning-based human and vehicle target classification
- Efficient H.265 pro+ compression technology
- Encoding capability up to 3K/5M Lite @ 12 frames per second
- 5 adaptive input signals (HDTVI/AHD/CVI/CVBS/IP)
- Up to 6 network cameras can be connected.
4-channel DVR Hikvision iDS-7204HTHI-M1/S
Product reference:
26-6931847160357
- 4 channels and 1 HDD 1U AcuSense DVR
- Reducing false alarms using deep learning-based human and vehicle target classification
- Efficient H.265 pro+ compression technology
- Encoding capability up to 3K/5M Lite @ 12 frames per second
- 5 adaptive input signals (HDTVI/AHD/CVI/CVBS/IP)
- Up to 6 network cameras can be connected.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 6
business days
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter security
- Human/Vehicle Analysis Up to 2-ch
- Facial Detection
- Facial Detection and Capture Face picture detection, face picture search
- Image and sound
- IP video input
1-ch (up to 5-ch)
Up to 6 MP resolution
Enhanced IP mode on:
2-ch (up to 6-ch), each up to 4 Mbps
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog video input 4-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
HDMI/VGA simultaneous output
- CVBS Input PAL/NTSC
- CVBS output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous playback 4-channel
- HDTVI Input 3K(2960 x 1665)@20 fps, 5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@30 fps, 4 MP(2560 x 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- HDCVI Input 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- Audio output 1-ch, RCA (Linear, 1 KΩ)
- Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
- Two-way speed 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Recording
- Image compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode is enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate 32 Kbps to 6 Mbps
- Double stream Support
- Flow type Video, Video Audio
- Audio compression G.711u
- Audio bit rate 64 Kbps
- Internet
- Total Bandwidth 72 Mbps
- Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote login 32
- Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
- Interfaces
- SATA 1 SATA interface
- Capacity Up to 10 TB capacity for each disk
- Serial interface RS-485 (half duplex)
- USB interface 2 × USB 2.0
- Warning signal input/output N/A
- Home
- Power supply 12VDC, 1.5A
- Energy consumption ≤ 18W
- Operating temperature -10 °C to +55 °C (+14 °F to +131 °F)
- Moisture resistance 10% to 90%
- Size 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weight ≤ 1.16 kg (2.6 lb)
| Weight | 1.34 kg |
