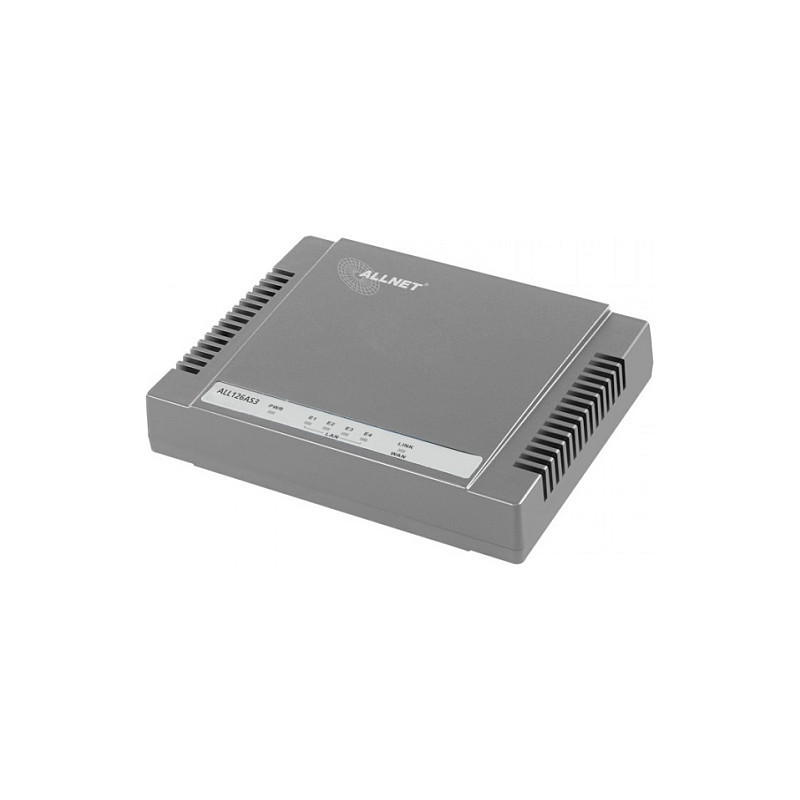

ALLNET ALL126AS3 modem

ALLNET ALL126AS3. Chipset: Lantiq VRX. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z. Power consumption (typical): 6.7 W. Compliance certificates: CE, Certification: CE. Weight: 385 g, Depth: 145 mm, Height: 36 mm
ALLNET ALL126AS3 / VDSL 100 Mbit Slave Modem "ADSL-Backward"
VDSL2 Master Modem for dedicated lines via 2-wire connections up to a
lenght of 2500 Meters and a bandwidth of 100 Mbit/s (depends on length). Supports DPBO (Downstream Power Back Off).
The ALLNET ALL126AS3 is a VDSL2 Router that leverages the extraordinary bandwidth promise of VDSL2 (max. 100Mbps Symmetric) technology, the next step in the delivery of new high-speed Internet applications to end-users in their homes or offices.
Quick, easy and economical to install and maintain, the ALL126AM2 works with the ALL126AS3 over existing copper wire infrastructure. ALL126AM2 is a CO (Central Office) device while ALL126AS3 is a CPE (Customer Premise Equipment) device.
The ALLNET ALL126AS3 will allow operators worldwide to compete with cable and satellite operators by offering services such as HDTV, VOD, videoconferencing, high speed Internet access and advanced voice services including VoIP, over a standard copper telephone cable. ALLNET ALL126Ax series is seen by many operators as an ideal accompaniment to a FTTP rollout, where for instance fiber is supplied direct to an apartment block and from there copper cable is used to supply residents with high-speed VDSL2.

Modem

Chipset: Lantiq VRX

Performance

Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z

Features

LED indicators: Yes
Flow control support: Yes

Ports interfaces

Modem (RJ-11) ports: 2
RS-232 ports: 1
Ethernet LAN (RJ-45) ports: 4

Power

Power consumption (typical): 6.7 W

Certificates

Compliance certificates: CE
Certification: CE

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -20 - 70 °C

Weight dimensions

Weight: 385 g
Depth: 145 mm
Height: 36 mm
Width: 183 mm

Packaging content

Cables included: LAN (RJ-45), Phone (RJ-11)
