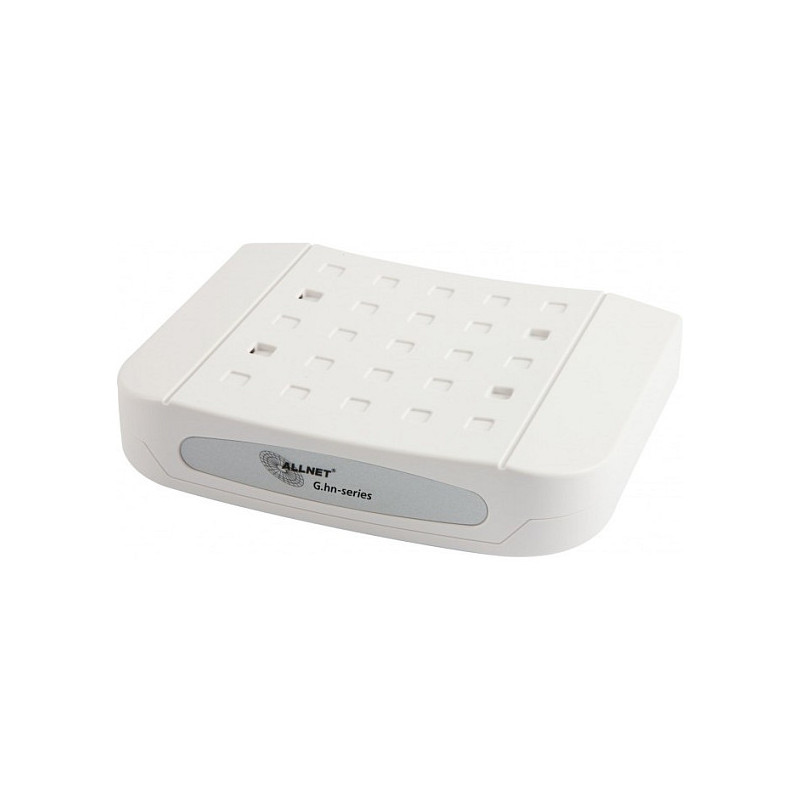

ALLNET ALL-GHN101-2wire network media converter

ALLNET ALL-GHN101-2wire. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, Ethernet LAN data rates: 100,1000 Mbit/s. Maximum transfer distance: 300 m. LED indicators: Activity, Link, Product colour: White. Connectivity technology: Wired. Power consumption (typical): 3.5 W

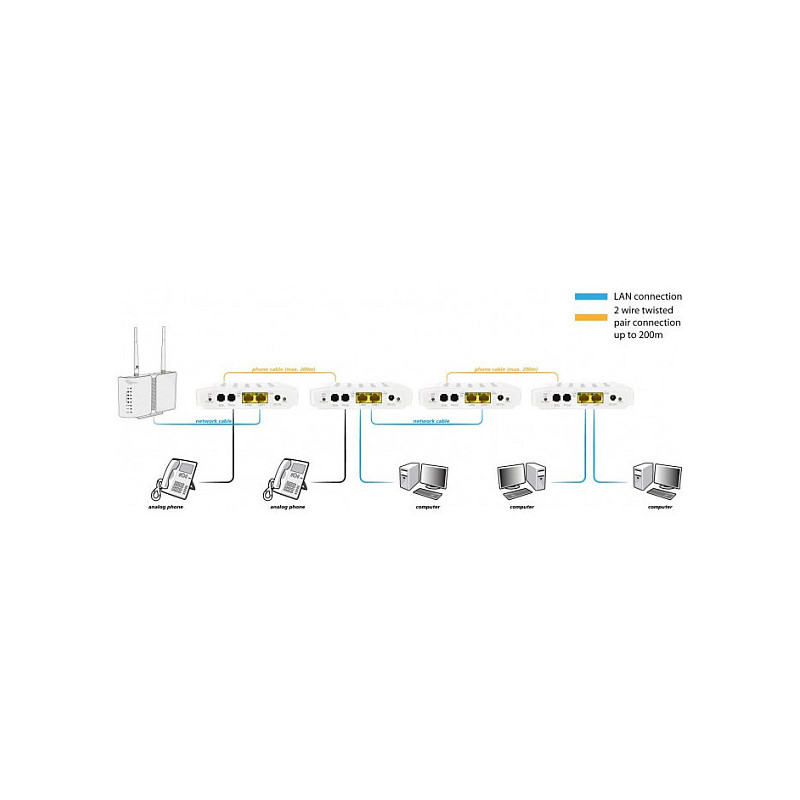

With the G.HN Gigabit Ethernet Bridge ALL-GHN102-2wire you can expand your home network at home with the existing telephone line. There is no additional network wiring required. You can simply use the existing telephone line in the wall. At a frequency of (36-96MHZ) coexistence with ADSL and VDSL is guaranteed. With the ALLGHN102-2wire they can as quickly expand your Netzerk without rewiring and with little effort.

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Ethernet LAN data rates: 100,1000 Mbit/s
VLAN support: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes

Performance

Maximum transfer distance: 300 m

Features

Internal: No
Web-based management: Yes
LED indicators: Activity, Link
Product colour: White

Ports interfaces

Connectivity technology: Wired

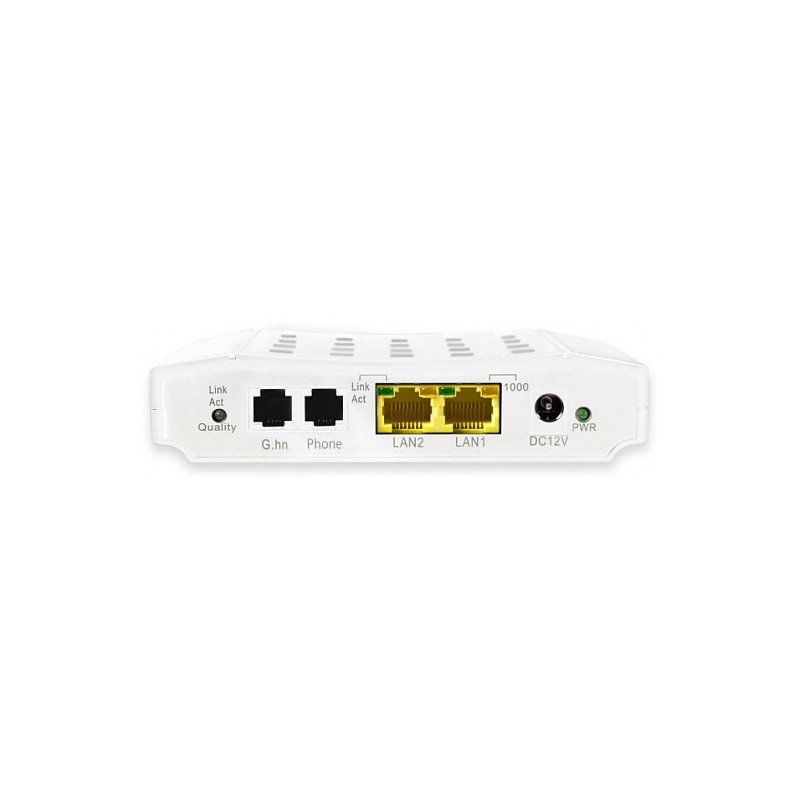

Ethernet LAN (RJ-45) ports: 2
RJ-11 ports quantity: 2

Power

Power consumption (typical): 3.5 W

Weight dimensions

Width: 130 mm
Depth: 95 mm
Height: 32 mm
Weight: 135 g

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -10 - 65 °C
Operating relative humidity (H-H): 10 - 95%

Certificates

Certification: CE
