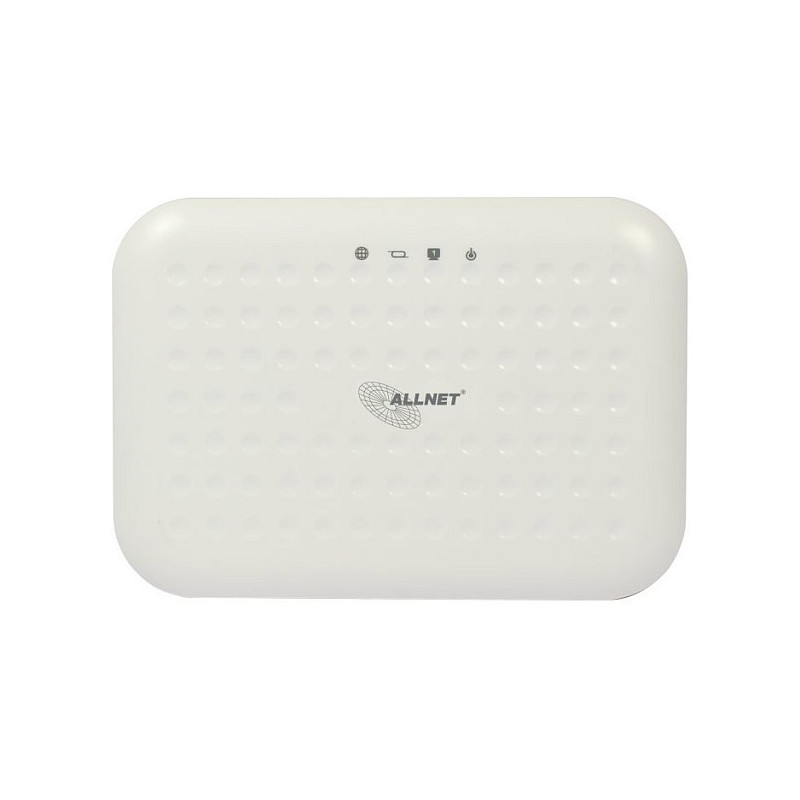

ALLNET ALL-BM200VDSL2V modem

ALLNET ALL-BM200VDSL2V. Internal memory: 32 MB, Chipset: Broadcom BCM63381 + BCM6303, Flash memory: 4 MB. Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, Upstream data rate: 50 Mbit/s, Downstream data rate: 100 Mbit/s. Product colour: White, LED indicators: DSL, LAN, Power. Cabling technology: 10/100. DC input voltage: 12 V
Product information "ALLNET ALL-BM200VDSL2 / VDSL2/ADSL Bridge Modem / Vectoring"
The ALLNET ALL-BM200VDSL2V is a ADSL VDSL2 bridge modem, which allows you access to the VDSL2 Internet quick and easy. The modem is easily connected to a broadband router, firewall PC or MAC, no further adjustments are necessary. The LAN port / terminal only needs to your router / firewall / PC etc. are connected.

Modem

Internal memory: 32 MB
Chipset: Broadcom BCM63381 + BCM6303
Flash memory: 4 MB
VDSL: Yes
VDSL2: Yes

Performance

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Upstream data rate: 50 Mbit/s
Downstream data rate: 100 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3u

Features

Product colour: White
LED indicators: DSL, LAN, Power

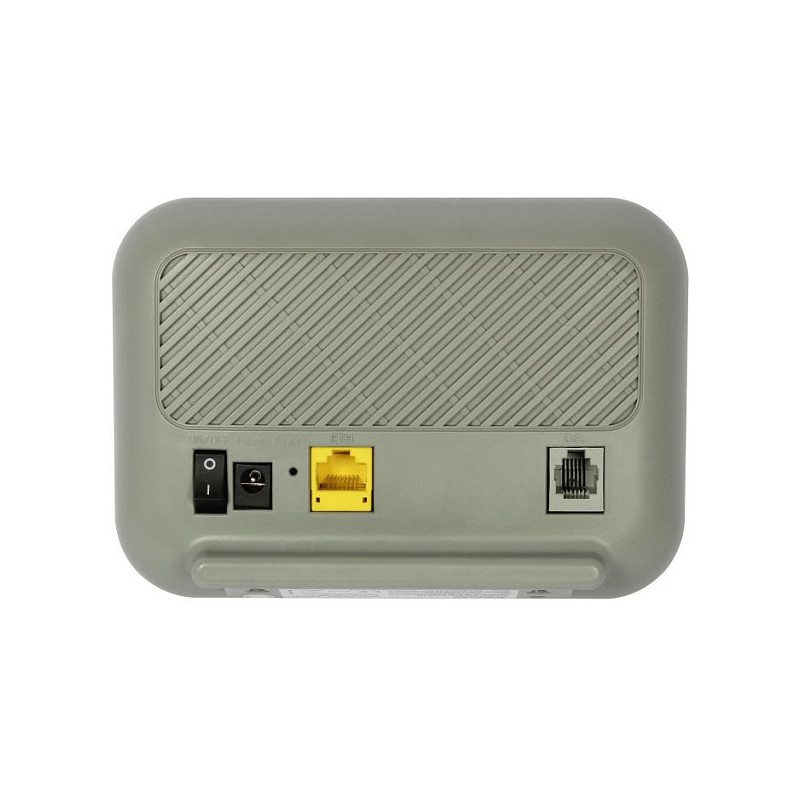

Ports interfaces

Cabling technology: 10/100
Modem (RJ-11) ports: 1
Ethernet LAN (RJ-45) ports: 1

Power

DC input voltage: 12 V

Certificates

Compliance certificates: RoHS, CE
Certification: CE, RoHS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -30 - 60 °C

Weight dimensions

Depth: 145 mm
Height: 35 mm
Width: 105 mm
