3D Printer Cooler - QiDi PCM4-Q2 Polar Cooler 60 W 12 V 5-10 °C Air Outlet Range
Product reference: 14-744581223334

QiDi PCM4-Q2 Polar Cooler - external extruder cooling unit for Q2 and Max4 series 3D printers with closed-loop control and an exhaust air temperature range of 5-10 °C. It features a 60 W rated power, 12 V voltage, integrated condensate filter and silicone air hose.

3D Spausdintuvo Aušintuvas - QiDi PCM4-Q2 Polar Aušintuvas 60 W 12 V 5-10 °C Oro Išleidimo Diapazonas
3D Spausdintuvo Aušintuvas - QiDi PCM4-Q2 Polar Aušintuvas 60 W 12 V 5-10 °C Oro Išleidimo Diapazonas
3D Spausdintuvo Aušintuvas - QiDi PCM4-Q2 Polar Aušintuvas 60 W 12 V 5-10 °C Oro Išleidimo Diapazonas
3D Spausdintuvo Aušintuvas - QiDi PCM4-Q2 Polar Aušintuvas 60 W 12 V 5-10 °C Oro Išleidimo Diapazonas

3D Printer Cooler - QiDi PCM4-Q2 Polar Cooler 60 W 12 V 5-10 °C Air Outlet Range

Product reference: 14-744581223334

QiDi PCM4-Q2 Polar Cooler - external extruder cooling unit for Q2 and Max4 series 3D printers with closed-loop control and an exhaust air temperature range of 5-10 °C. It features a 60 W rated power, 12 V voltage, integrated condensate filter and silicone air hose.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
231,04 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

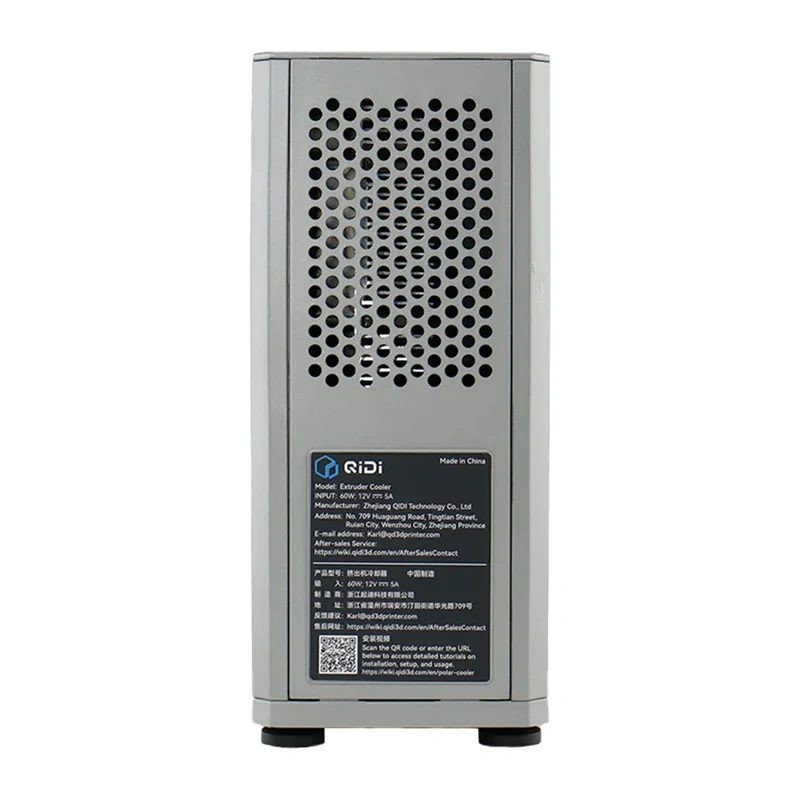

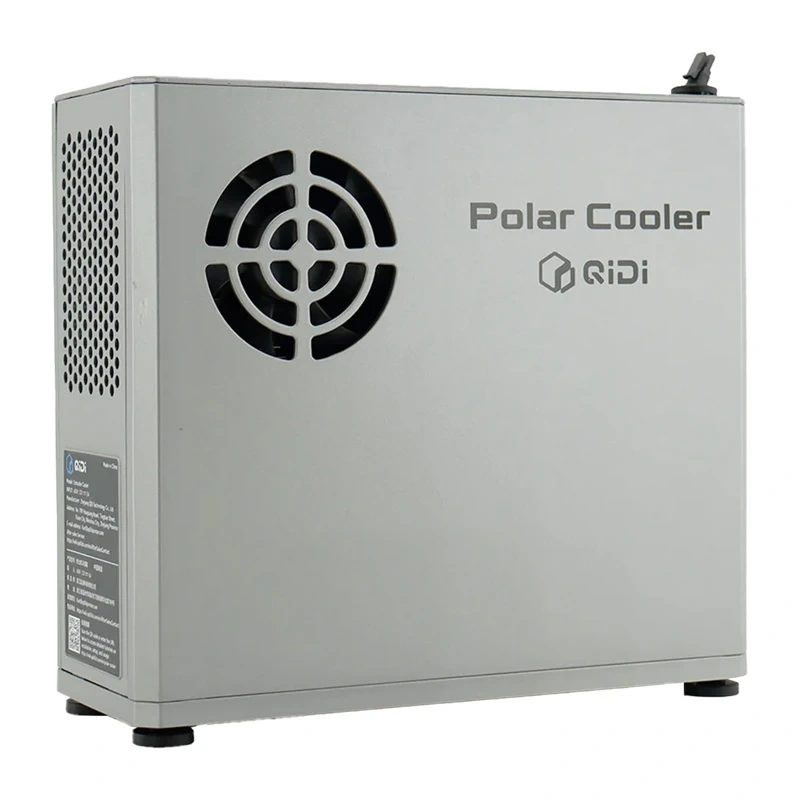

QiDi PCM4-Q2 Polar Cooler


QiDi PCM4-Q2 Polar Cooler - external extruder cooling unit for Q2 and Max4 series 3D printers with closed-loop control and 5-10 °C exhaust air temperature. Its rated power is 60 W, voltage is 12 V. The unit has a built-in condensate filter and uses a silicone air hose.


  • Active cooling system for QiDi Q2 and Max4 series 3D printers
  • Provides 5-10°C cooled air to help reduce extruder clogging and improve print quality
  • Closed-loop temperature control ensures stable chamber temperature and helps reduce warping
  • Built-in condensate filter, quick installation and included silicone air hose ensure convenient use

Product information

Product type External 3D printer extruder cooler
Brand QiDi
Model PCM4-Q2
Compatibility QiDi Q2 and Max4 series 3D printers

Specifications

Dimensions 234 × 92 × 214mm
Weight 1.6 kg
Housing material ABS
Air hose material Silicone, 5 × 7 mm
Control mode Closed-loop temperature control
Noise level 54 dB, measured at a distance of 1 m
Operating ambient temperature 0-65 °C; the printer chamber temperature must be lower than the filament softening temperature. In the case of PLA filament, the maximum chamber temperature is 45 °C.

Technical data

Rated voltage 12V
Cooling fan power 4W
Air pump power 8.4W
Air flow 2.8-3.2 mph
Cooler material Aluminum
Cooler dimensions 100 × 95 × 25mm
Included accessories Power supply, power cable, Q2 air intake tube, M2,5 × 6 self-tapping screw, T-shaped cable strap and user manual

Safety warning

Use and installation Use only with compatible QiDi Q2 or Max4 series 3D printers and only for extruder cooling. Install and use the cooler according to the instruction manual. Do not block the ventilation openings, protect the device from water and condensation, and disconnect the power supply before performing maintenance or installation.

Height250mm
Length300mm
Weight2080 grams
Width150mm
