3D Scanner - Creality Pico Blue Laser NIR 0.03 mm 110 FPS Wi-Fi 6 Gray
Product reference:
14-6977905749737
" Creality Pika" - a compact 3D scanner with blue laser and NIR structured light modes, designed to scan objects from 10 to 2,000 mm in size. It provides accuracy up to 0.03 mm, scanning speed up to 110 frames per second, color reproduction, Wi-Fi 6 connectivity and has two replaceable 3,350 mAh batteries.
3D Scanner - Creality Pico Blue Laser NIR 0.03 mm 110 FPS Wi-Fi 6 Gray
Product reference:
14-6977905749737
" Creality Pika" - a compact 3D scanner with blue laser and NIR structured light modes, designed to scan objects from 10 to 2,000 mm in size. It provides accuracy up to 0.03 mm, scanning speed up to 110 frames per second, color reproduction, Wi-Fi 6 connectivity and has two replaceable 3,350 mAh batteries.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

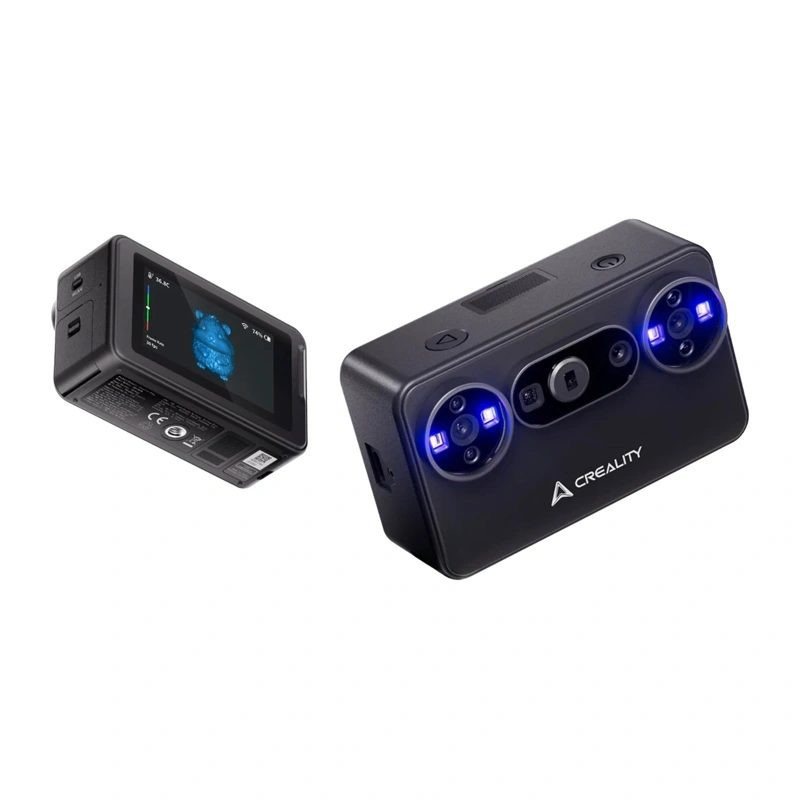

Creality Pika 3D Scanner
" Creality Pika" - a compact 3D scanner with blue laser and NIR structured light modes, designed to scan objects with a size of 10-2,000 mm. It provides accuracy up to 0.03 mm, scanning speed up to 110 frames per second, color matching, Wi-Fi 6 connectivity and two replaceable 3,350 mAh batteries.
- Dual-mode scanning: 7 parallel blue laser lines for fine details and NIR structured light for larger objects and human silhouettes.
- In laser mode, accuracy of up to 0.03 mm is ensured, and when connected to a computer, the scanning speed reaches up to 110 frames per second.

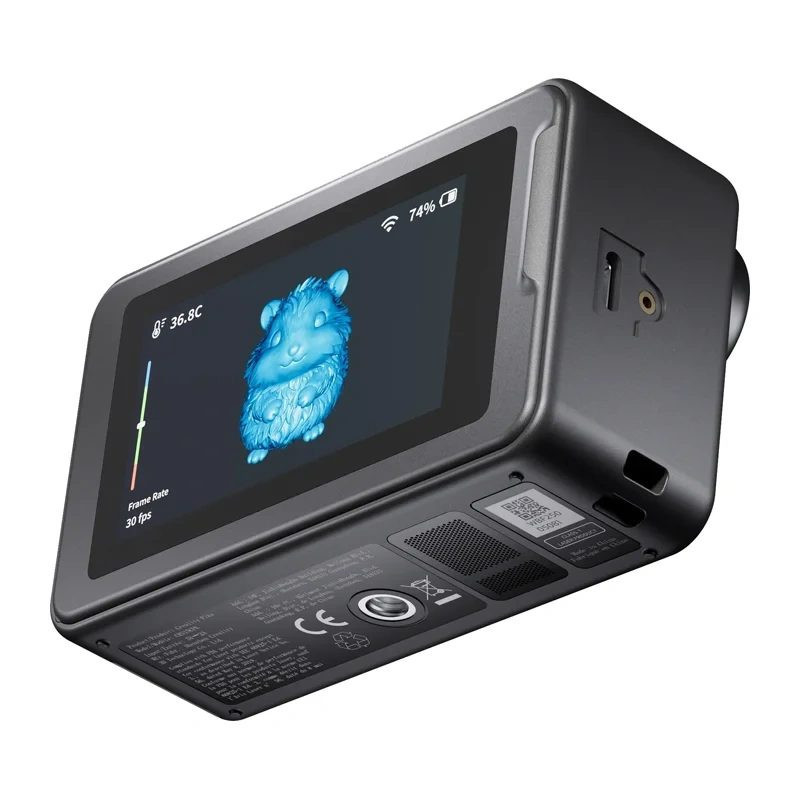

- Compact and portable design, 3-inch touchscreen, Wi-Fi 6 connectivity, and two replaceable 3,350 mAh batteries.
- Supports color matching and scanning of black and metal surfaces without spray coating. Files are exported in STL, OBJ, PLY and ASC formats.
Product information | |
|---|---|
| Product type | Portable 3D scanner |
| Brand | Creality |
| Model | Pica |
| Color | Gray |
| Dimensions | 100 × 60 × 35mm |
| Weight | 260g with battery |
Scanning specifications | |
| Scanning technologies | 7 parallel blue laser lines and NIR structured light |
| Accuracy | Up to 0.03 mm in blue laser mode; up to 0.1 mm in NIR mode |
| 3D resolution | 0.1-2 mm in blue laser mode; 0.15-2 mm in NIR mode |
| Minimum scan volume | 10 × 10 × 10 mm in blue laser mode; 150 × 150 × 150 mm in NIR mode |
| Working distance | 160-400 mm in blue laser mode; 140-1,000 mm in NIR mode |
| Single capture area | Laser: 101 × 107 mm at 160 mm distance and 344 × 268 mm at 400 mm distance; NIR : 144 × 134 mm at 200 mm distance and 764 × 670 mm at 1,000 mm distance |
| Alignment modes | Laser: markers, universal markers or no markers; NIR : geometry or texture |
| Color fixation | Color mapping and 24-bit color capture in NIR mode |
| Surface compatibility | Supports scanning of black and metal surfaces without spray coating |
Performance and connectivity | |
| Scanning speed with a computer | Up to 110 frames per second in laser mode; up to 30 frames per second in NIR mode |
| Scanning speed with a smartphone | Up to 40 frames per second in laser mode; up to 20 frames per second in NIR mode |
| Working lighting conditions | Up to 110,000 lux in laser mode; up to 80,000 lux in NIR mode with filter |
| Processor | 8-core, 2.0 GHz processor |
| Screen | 3-inch touch screen |
| Wireless connection | Wi-Fi 6 |
| Interface | USB Type-C / USB 3.0 |
| Supported platforms | Android, iOS, Windows and macOS |
| Wired connection with iOS | Not supported |
| Supply voltage and current | 5V / 3A |
| Operating temperature | From −10°C to 40°C |
| Operating humidity | 10-90% relative humidity |
Software and file support | |
| Software | CrealityScan |
| Software features | Scanning, point cloud processing, optimization, and basic model editing |
| Export formats | STL, OBJ, PLY and ASC |
Included accessories | |
| Included |
|
Safety information | |
| Safety warning | Use the scanner only for its intended purpose - to scan 3D objects. Do not look directly into the laser or point it at people's eyes. Protect the device and batteries from water, excessive heat, and unauthorized modification. Follow the manufacturer's instructions when charging, replacing, and storing batteries. |
| Height | 100mm |
| Length | 200mm |
| Weight | 390 g |
| Width | 150mm |
