Reversing camera Ford Tourneo Connect(SK) / VW Caddy(SK)

Vehicle Compatibility:
Ford:

• Tourneo Connect (SK) 05/2022 - 2025

Volkswagen:

• Caddy V (SK) 11/2020 - 2025

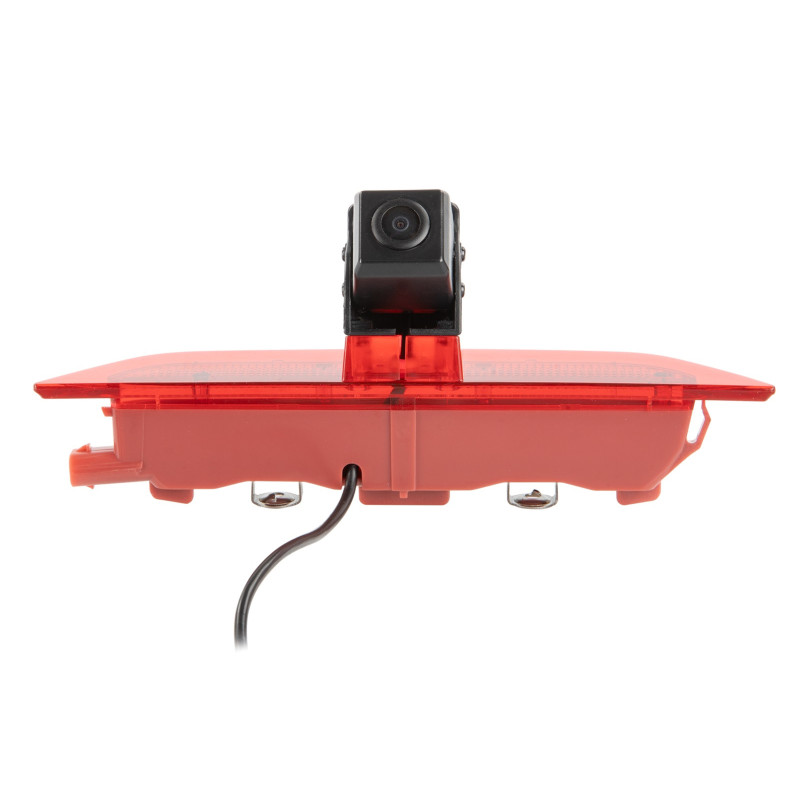

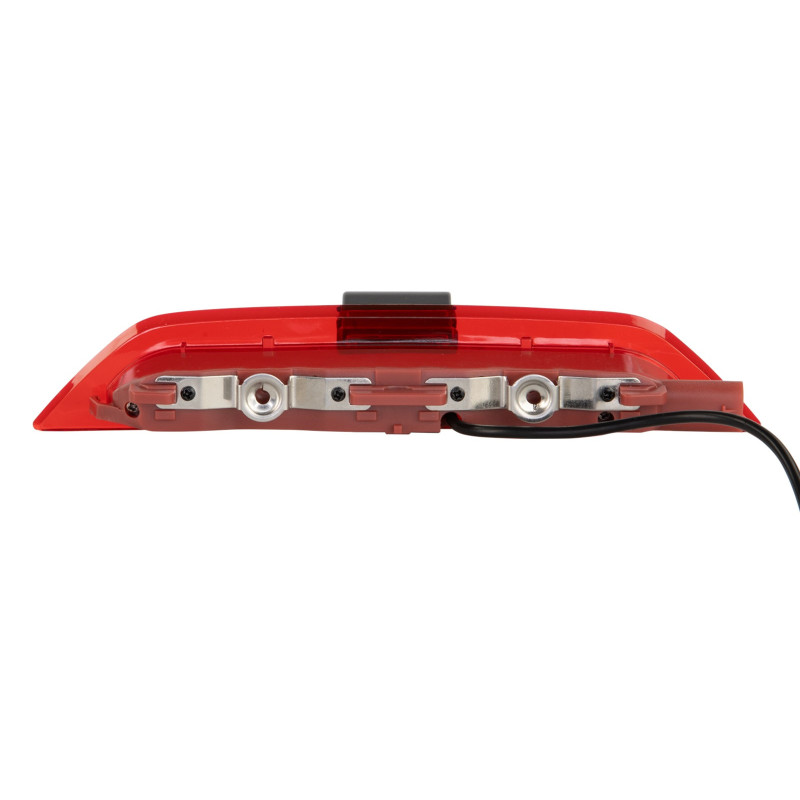

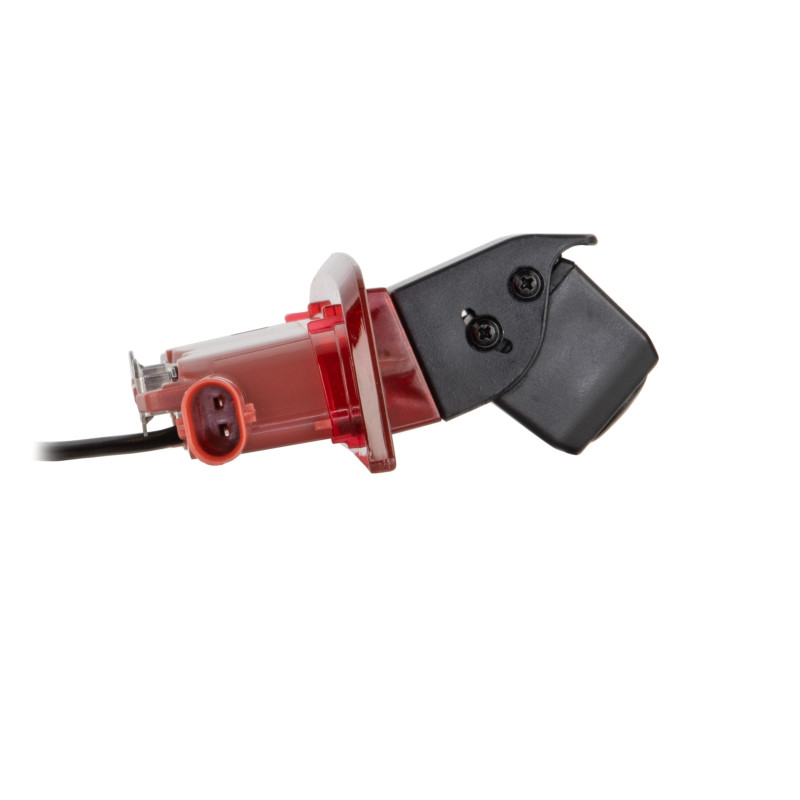

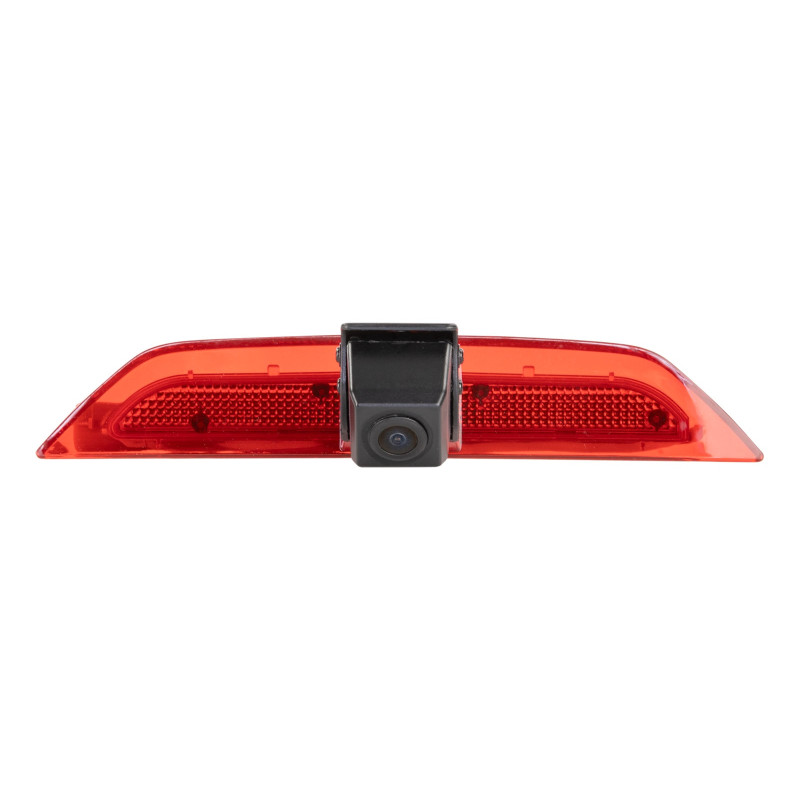

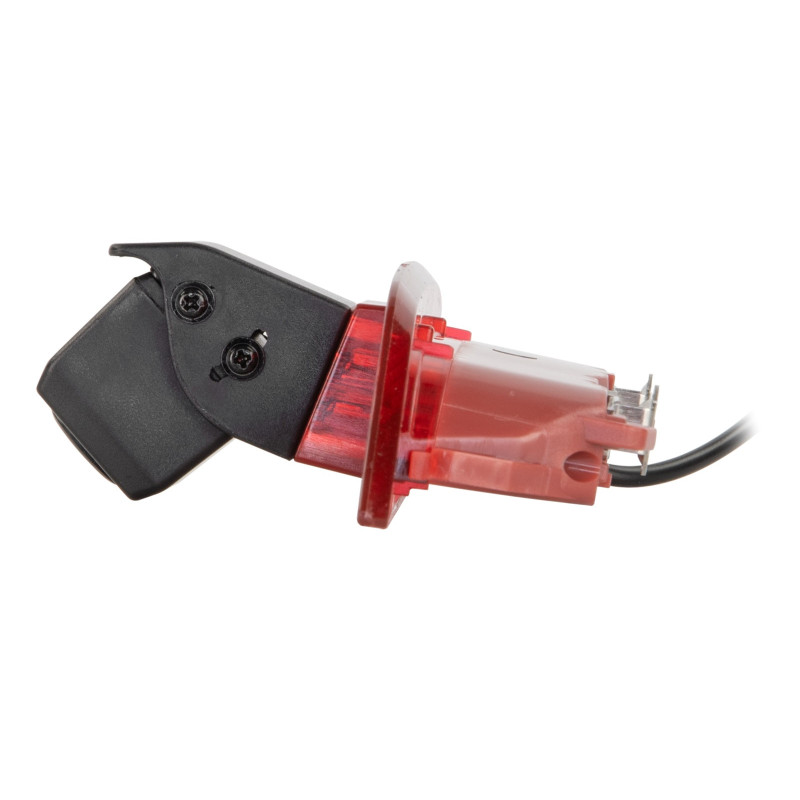

Reversing camera mounted in placeoriginal third brake light.
Equipped withauxiliary linesandadjustable viewing angle, enables safe maneuvering and parking.

• Dedicated OEM design - perfect fit to the original mounting location

• Auxiliary lines - can be activated/deactivated (jumper)

• Adjustable viewing angle

• High weather resistance (IP68)

• Supports 12/24 V voltage (with +3 V voltage converter)

• Designed for vehicles withsingle rear door

ParameterValueDesignPlasticColorBlack / RedImage sensor1/3" CMOSVideo systemNTSCResolution600 TV linesEffective pixels976 × 592Lens2.6 mmLens angle (D/H/V)160° / 115° / 80° (+5°)Degree of protectionIP68Camera operating voltage+3V DCPower supply+12 V / +24 V DC (with voltage converter)Power consumption100 mAOperating temperature-20°C ~ +70°CStorage temperature-40°C ~ +80°CConnector4-pin ACV (m) Ø5.2 mmDimensionsOEM - third brake lightContents of the set

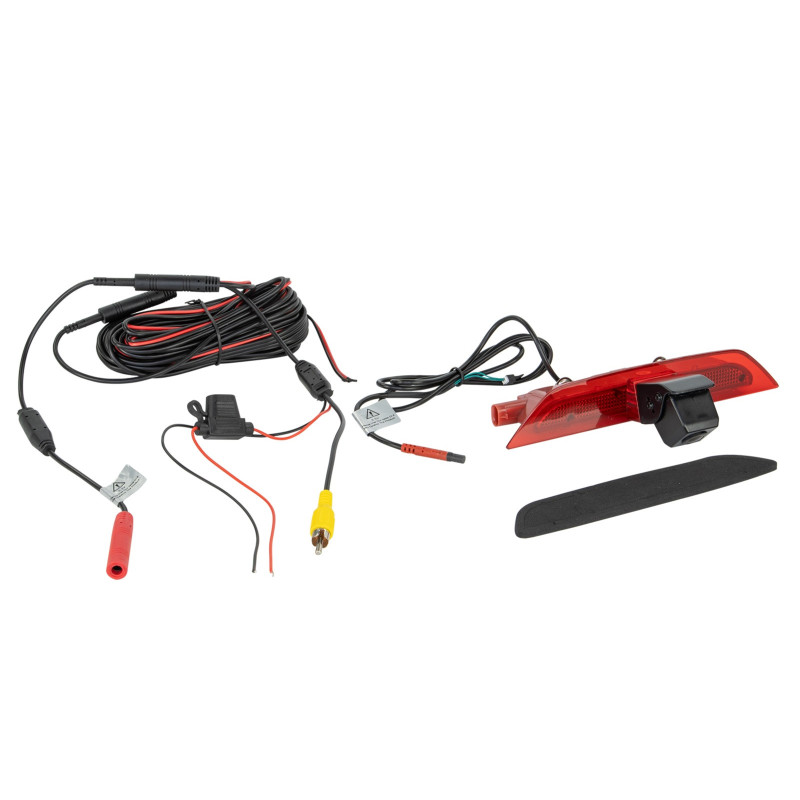

• Reversing camera in the third brake light housing

• Pigtail (3.3 m) with 4-pin ACV connector (m) Ø5.2 mm

• +3 V voltage converter (4-pin ACV f/m Ø10 mm / Ø5.2 mm)

• 6.5m extension cable (power + RCA video)

• 20 cm connection cable (RCA + power)

• Red:+12 V (switched, fused)

• Black:body weight

• Yellow RCA (m):video signal

• Green jumper:activation/deactivation of auxiliary lines
