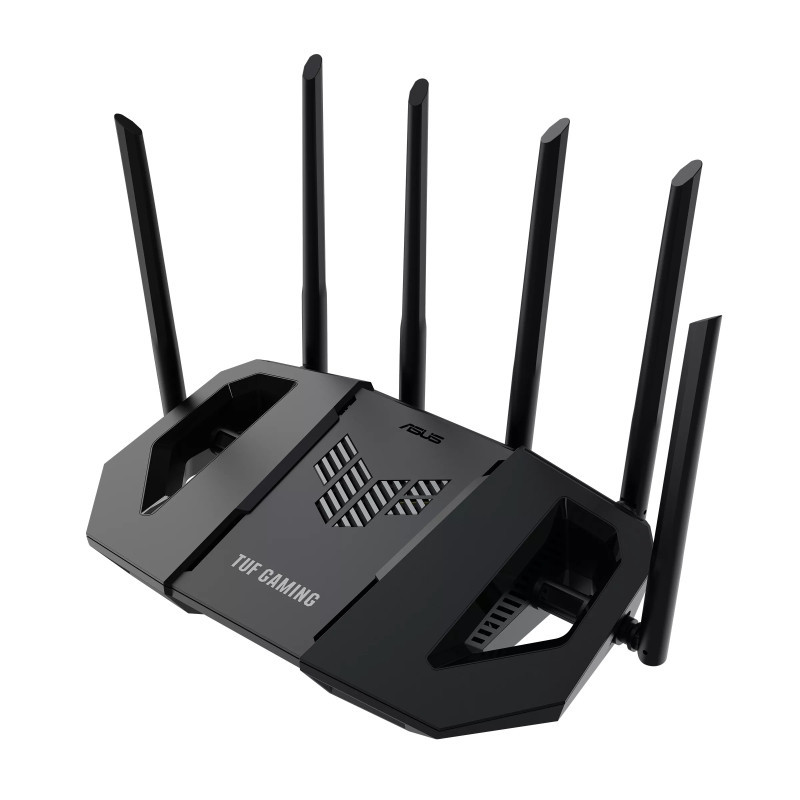

ASUS TUF Gaming BE6500 Dual Band WiFi 7 (802.11be) Gaming Router

ASUS TUF Gaming BE6500 Dual Band WiFi 7 (802.11be) Extendable Gaming Router, Quad 2.5GbE ports, 3-step Port Forwarding, Smart Home Master, AiMesh support, and AiProtection Pro for Network Security

• 4K-QAM Multi-Link Operation- WiFi 7 dual-band router delivers speeds up to 6500 Mbps. 4096-QAM boosts speed by 1.2X, and Multi-Link Operation (MLO) enhances stability and efficiency by connecting multiple bands simultaneously.


• Quad 2.5GbE Ports- 2.5GbE ports prioritize traffic, optimizing wired internet connectivity for maximum performance.


• One Router. All Game Types- Features Mobile Game Mode prioritization, a dedicated Gaming Port for peak performance, and simplified Open NAT for easy multiplayer setups.


• Comprehensive Security System- Equipped with ASUS latest security features, ensuring robust protection against network threats.


• Tested Durability and Stable Operation- Built to endure rigorous testing for reliable and stable performance, making it highly durable.

Model: TUF Gaming BE6500

Network Standard:

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

WiFi 7 (802.11be)

IPv4

IPv6

Product Segment: BE6500 ultimate BE performance : 688+5764 Mbps

WiFi Data Rate:

WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

WiFi 7 (802.11be) (5GHz): up to 5764 Mbps

Antenna: External fixed antenna x 6

Transmit / Receive:

2.4GHz 2x2

5GHz 4x4

Processor: 1.5GHz Quad-core Processor

Memory: 256 MB Flash and 1 GB RAM

Boosts Speed:

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

4096-QAM high data rate

20/40/80/160 MHz bandwidth

Operating Frequency:

2.4 GHz

5 GHz

Operating Mode:

Wireless Router Mode

AiMesh Node Mode

Access Point Mode

Media Bridge Mode

Repeater Mode

I/O Ports:

1 x 2.5GbE for WAN

3 x 2.5GbE for LAN

1 x USB 3.2 Gen1

Buttons: WPS Button, Reset Button, Power Button

LED Indicator:

WAN(Internet) x1

LAN x1

5GHz x 1

2.4GHz x1

Power x1

Power Supply:

AC Input : 110V~240V(50~60Hz)

DC Output : 12 V with max. 2.5 A current

Product Weight (g): 772 g

Product Dimensions: 304 x 174 x 214 mm

AiMesh:

Primary AiMesh Router

AiMesh Node

Game:

Game Boost / Acceleration

Gear Accelerator

OpenNAT (Game Profile)

Gaming Port

Parental Control:

'Allow you to block access to unwanted websites and apps.'

Web Apps Filters

Time Scheduling

Safe Browsing

Customized Internet Schedule:

• Maximum Parental Control Profile : 64

• Maximum Parental Control Content Cilter Rule : 64

Guest Network:

'The Guest Network provides Internet connection for guests but restricts access to your local network.'

Support Guest Network

• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3

Guest Network Connection Time Limit

Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal

Security:

AiProtection

VPN

WPA/WPA2/WPA3 Personal

WPA/WPA2/WPA3 Enterprise

Open System OWE

WPS

Let's Encrypt

DNS-over-TLS

SSH

Security Scan

Firewall

• Maximum Firewall Keyword Filter : 64

• Maximum Firewall Network Service Filter : 32

• Maximum Firewall URL Filter : 64

AiProtection:

• Router Security Assessment

• Malicious Site Blocking

• Two-Way IPS

• Infected Device Prevention and Blocking

VPN:

Instant Guard

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

Support Surfshark

Support Nord VPN

Traffic Control:

Adaptive QoS:

• Bandwidth Monitor

• Bandwidth Limiter

Maximum Bandwidth Limiter Rule : 32

Traditional QoS

Traffic Monitor

• Real-time Traffic Monitor

• Wired Traffic Monitor

• Wireless Traffic Monitor

Traffic Analyzer:

• Traffic Analysis Period : Daily, Weekly, Monthly

• Website History

WAN:

Internet Connection Type:

• PPPoE

• PPTP

• L2TP

• Automatic IP

• Static IP

• IPSec

Dual WAN

3G / 4G LTE dongle

Port forwarding (Maximum Port Forwarding Rule : 64)

Port triggering (Maximum Port Triggering Rule : 32)

DMZ

DDNS:

• PPTP Pass-Through

• L2TP Pass-Through

• IPSec Pass-Through

• RTSP Pass-Through

• H.323 Pass-Through

• SIP Pass-Through

• PPPoE Relay

LAN:

DHCP Server

IPTV

Manually Assign IP Address (Maximum Manually Assign IP Address Rule : 64)

Wake on LAN (WOL)

Wireless:

MU-MIMO

UTF-8 SSID

WiFi MAC Address Filter (Maximum MAC Filters : 64)

Wireless Scheduler

Airtime Fairness

RADIUS Client

Universal Beamforming

USB application:

• HFS+

• NTFS

• vFAT

• ext2

• ext3

• ext4

• FAT32

Safely Remove Disk

AiCloud

Download Master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder Privileges

User Interface:

WEB: ASUSWRT

APP: ASUS Router APP

Administration:

Configuration Backup and Restore

Diagnosis tools

Feedback System

System Log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update

Package Content:TUF-BE6500 dual-band gaming router

RJ-45 cable

Power adapter

Quick Start Guide
