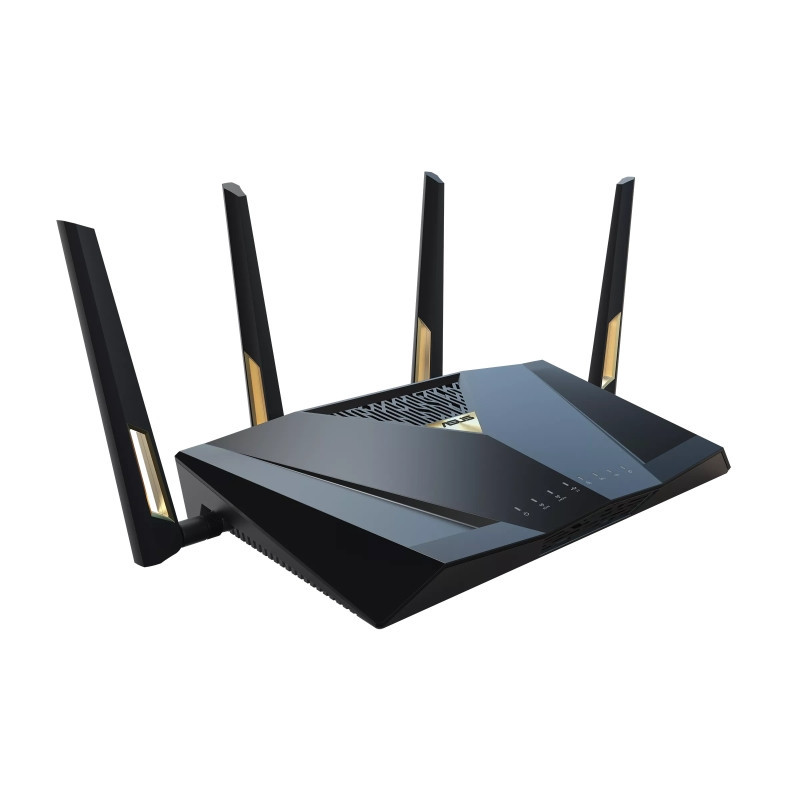

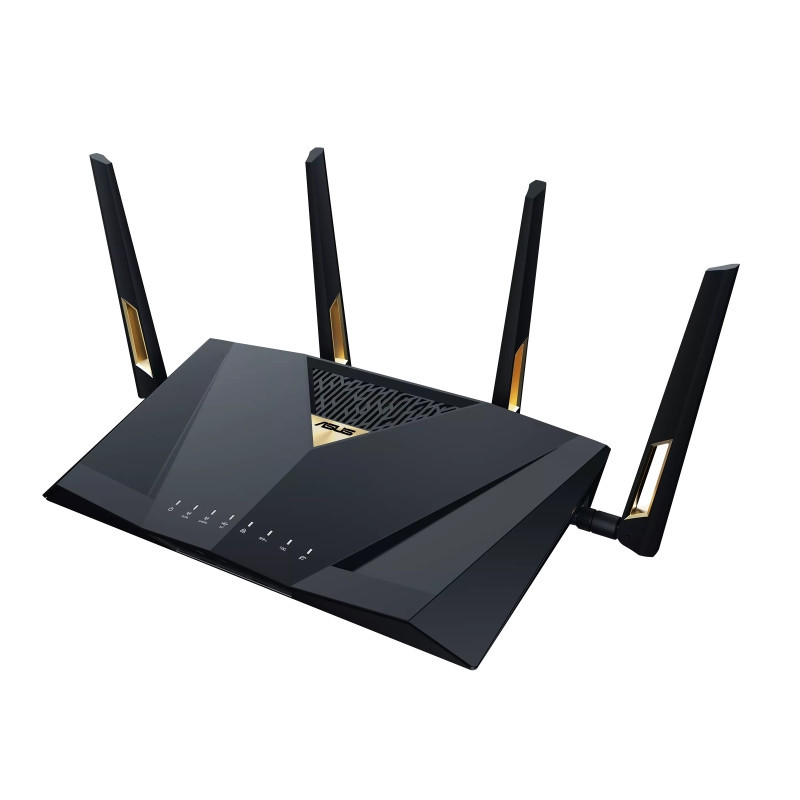

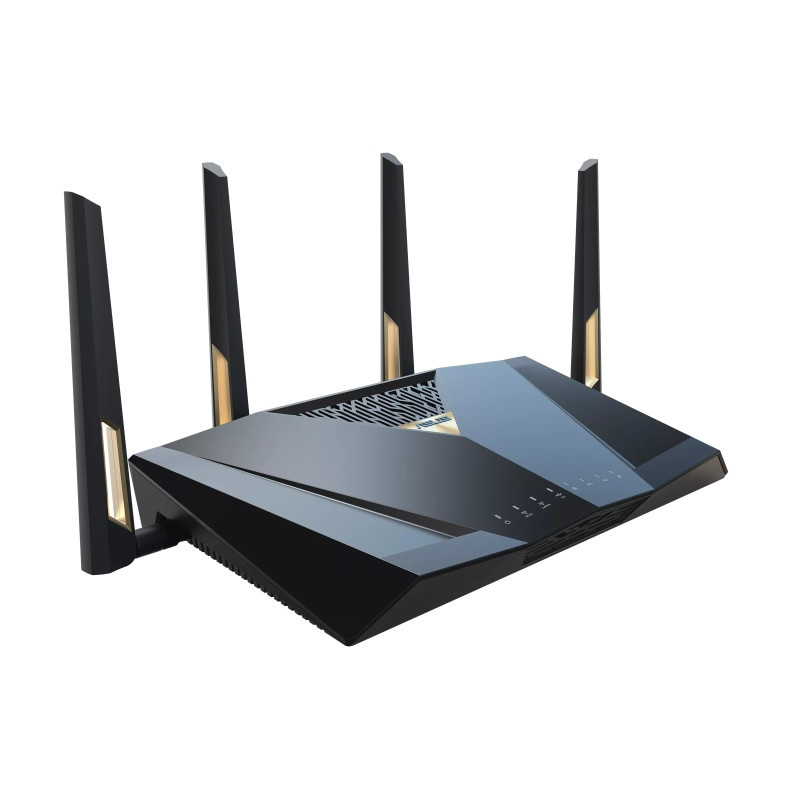

ASUS BE7200 Dual Band WiFi 7 (802.11be) Gaming Router

• Blazing-fast dual-band WiFi 7 boosts throughput up to 7200Mbps with Multi-Link Operation (MLO) and 4K-QAM.


• Bolster your wired network capacity up to 34G with up to 10 WAN and LAN ports with one cutting-edge 10G SFP+ port


• Versatile WAN configuration options with automatic WAN detection, and 4G LTE/5G Mobile Tethering for always-on internet


• Unleash demanding network applications with a powerhouse quad-core 2.6GHz CPU, 2Gb RAM and robust cooling


• Establish up to five SSIDs with Guest Network Pro to easily set up a guest portal, IoT devices, VPNs, and parental controls


• Enjoy end-to-end protection with commercial-grade AiProtection Pro, advanced internet protection, and comprehensive VPNs


• AI-powered Smart AiMesh leverages MLO for fast, stable connections, efficient data transmission, and easy network management

Model: RT-BE88U

Network Standard:

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

WiFi 7 (802.11be)

IPv4

IPv6

Product Segment: BE7200 ultimate BE performance : 1376+5764 Mbps

WiFi Data Rate:

WiFi 7 (802.11be) (2.4GHz): up to 1376 Mbps

WiFi 7 (802.11be) (5GHz): up to 5764 Mbps

Antennas: External antenna x 4

Transmit / Receive:

2.4GHz 4x4

5GHz 4x4

Processor: 2.6GHz quad-core processor

Memory: 256 MB Flash and 2 GB RAM

Boosts Speed:

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

4096-QAM high data rate

20/40/80/160 MHz bandwidth

Operating Frequency:

2.4 GHz

5 GHz

Operating Mode:

Wireless Router Mode

AiMesh Node Mode

Access Point Mode

Media Bridge Mode

Repeater Mode

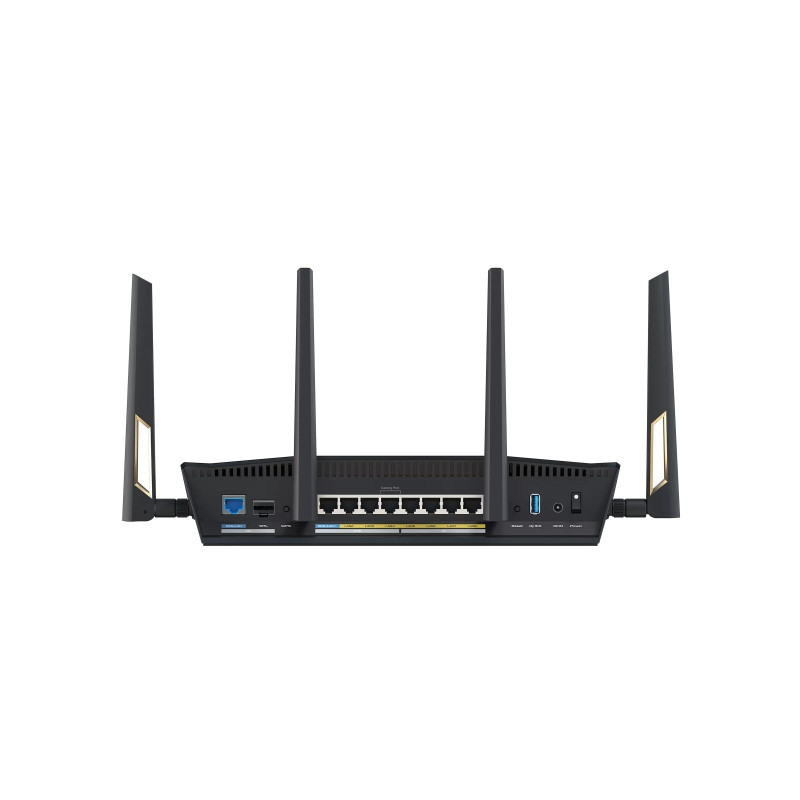

I/O Ports: 1 x 10Gbps for WAN/LAN, 1 x 10Gbps SFP+ for WAN, 1 x 2.5Gbps for WAN/LAN, 3 x 2.5 Gbps for LAN, 4 x RJ45 10/100/1000Mbps for WAN/LAN, USB 3.2 Gen1 x1

Buttons: WPS Button, Reset Button, Power Switch

LED Indicators:

WAN x1

10G WAN x1

10G SFP+ x1

LAN x1

USB 3.2 Gen 1 x1

2.4GHz x1

5GHz x1

Power x1

Power Supply:

AC Input : 110V~240V(50~60Hz)

DC Output : 19 V with max. 2.37 A current ； 19.5 V with max. 2.31 A current

Product Weight (g): 1060 g

Product Dimensions: 300*188*60.5

AiMesh:

AiMesh

• Primary AiMesh Router

• AiMesh Node

Game:

WTFast

Mobile Game Mode

Gear Accelerator

OpenNAT (Game Profile)

Gaming Port

Parental Controls:

"Allow you to block access to unwanted websites and apps."

Web & Apps Filters

Time Scheduling

Safe Browsing

Customized Internet Schedule

• Maximum Parental Control Profile : 64

• Maximum Parental Control Content Cilter Rule : 64

Guest Network:

"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."

Support Guest Network Pro

• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5

Guest Network Connection Time Limit

Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal

Security:

AiProtection

VPN

WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE

WPS

Let's Encrypt

DNS-over-TLS

SSH

Security Scan

Firewall

• Maximum Firewall Keyword Filter : 64

• Maximum Firewall Network Service Filter : 32

• Maximum Firewall URL Filter : 64

AiProtection:

AiProtection Pro

• Router Security Assessment

• Malicious Site Blocking

• Two-Way IPS

• Infected Device Prevention and Blocking

VPN:

Instant Guard

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

Support Surfshark

Traffic Control:

Adaptive QoS

• Bandwidth Monitor

• Bandwidth Limiter

-- Maximum Bandwidth Limiter Rule : 32

Traditional QoS

Traffic Monitor

• Real-time Traffic Monitor

• Wired Traffic Monitor

• Wireless Traffic Monitor

Traffic Analyzer

• Traffic Analysis Period : Daily, Weekly, Monthly

• Website History

WAN:

Internet Connection Type :

• PPPoE

• PPTP

• L2TP

• Automatic IP

• Static IP

• IPSec

Dual WAN

WAN Aggregation

3G / 4G LTE dongle

Port forwarding

• Maximum Port Forwarding Rule : 64

Port triggering

• Maximum Port Triggering Rule : 32

DMZ

DDNS

NAT Passthrough :

• PPTP Pass-Through

• L2TP Pass-Through

• IPSec Pass-Through

• RTSP Pass-Through

• H.323 Pass-Through

• SIP Pass-Through

• PPPoE Relay

LAN:

DHCP Server

IGMP Snooping

IPTV

LAN Link Aggregation

Manually Assign IP Address

• Maximum Manually Assign IP Address Rule : 128

Wake on LAN (WOL)

Wireless:

MU-MIMO

UTF-8 SSID

WiFi MAC Address Filter

• Maximum MAC Filters : 64

Wireless Scheduler

Airtime Fairness

RADIUS Client

Universal Beamforming

Explicit Beamforming

USB application:

File System :

• HFS+

• NTFS

• vFAT

• ext2

• ext3

• ext4

Safely Remove Disk

AiCloud

Download Master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder Privileges

User Interface:

WEB: ASUSWRT

APP: ASUS Router APP

Administration:

Configuration Backup and Restore

Diagnosis tools

Feedback System

System Log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update

Package Content:

RT-BE88U WiFi router

RJ-45 cable

Power adapter

Quick Start Guide

Warranty card
