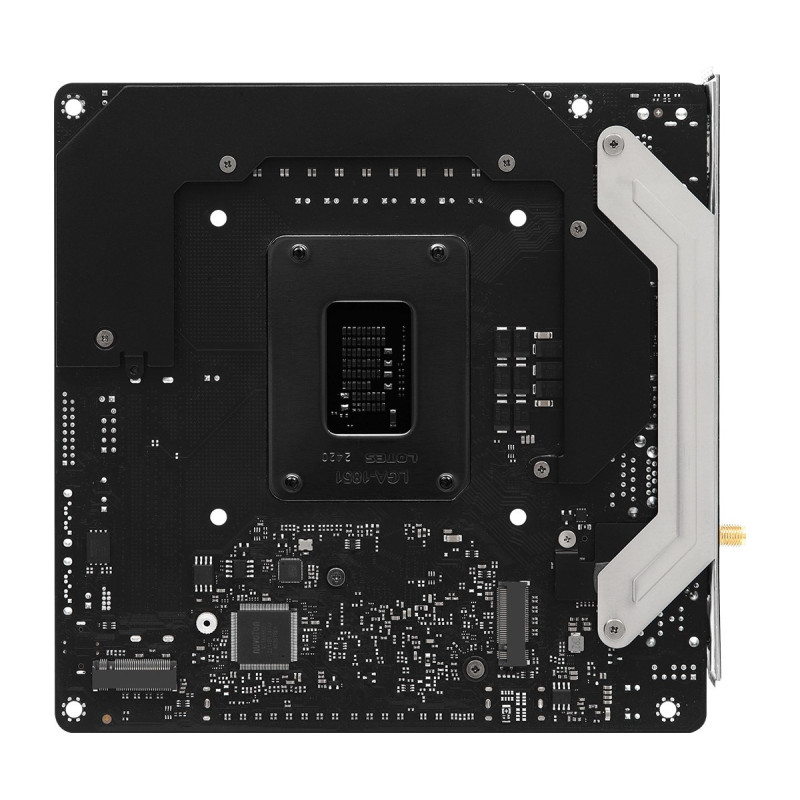

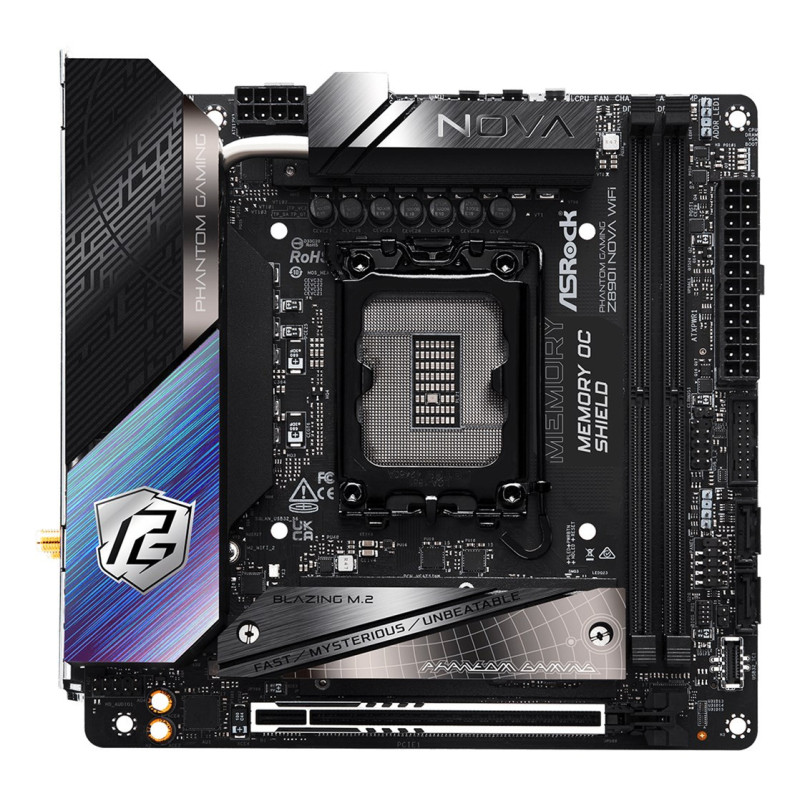

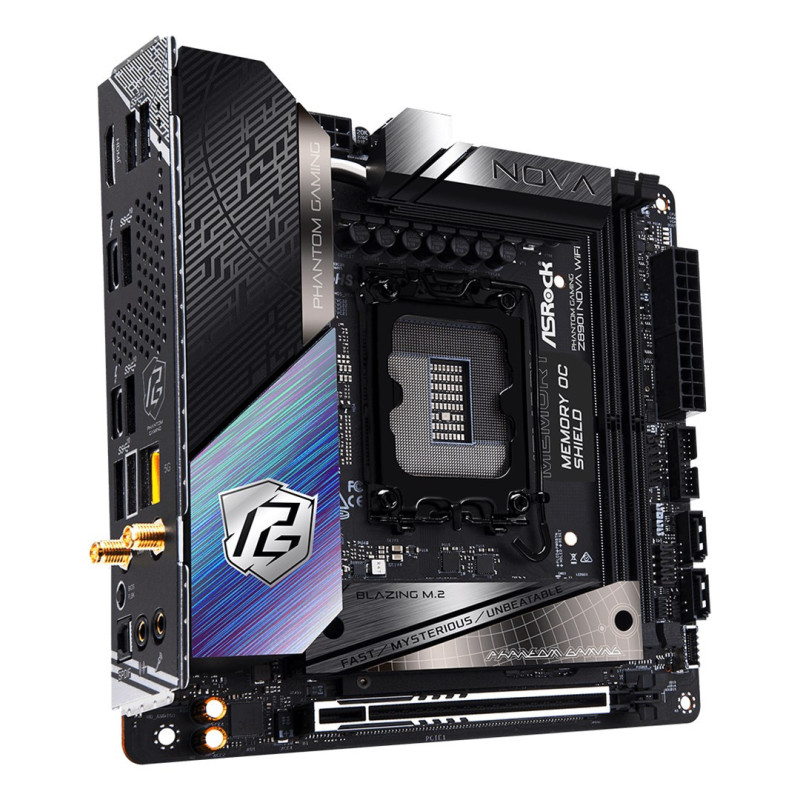

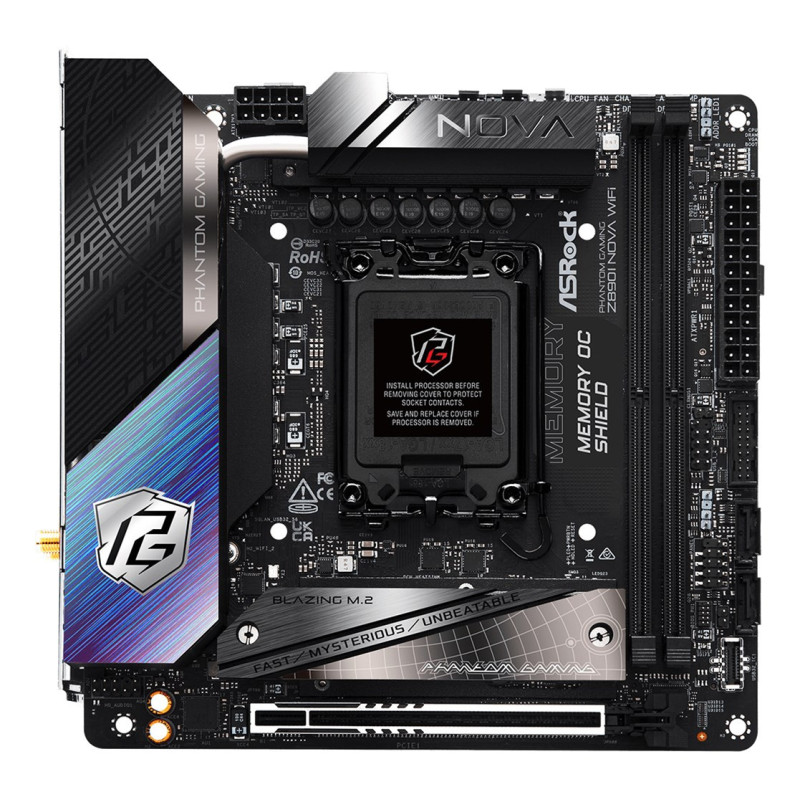

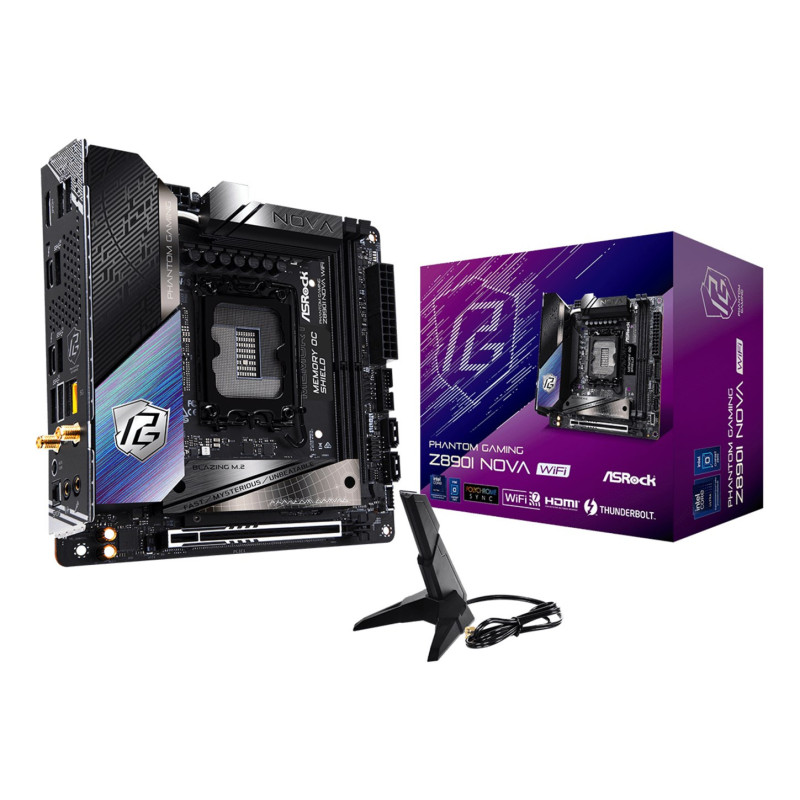

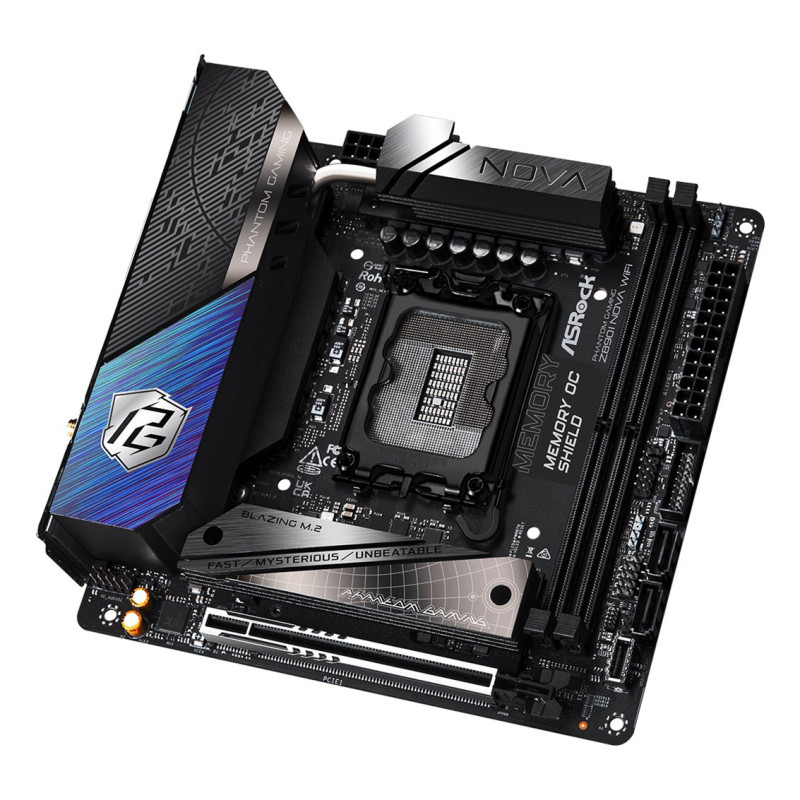

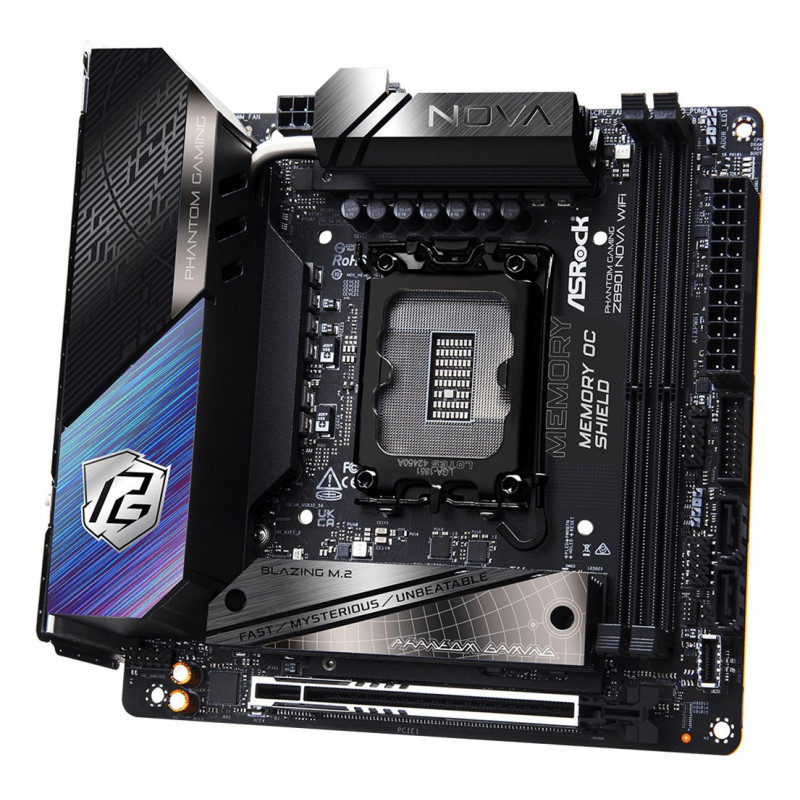

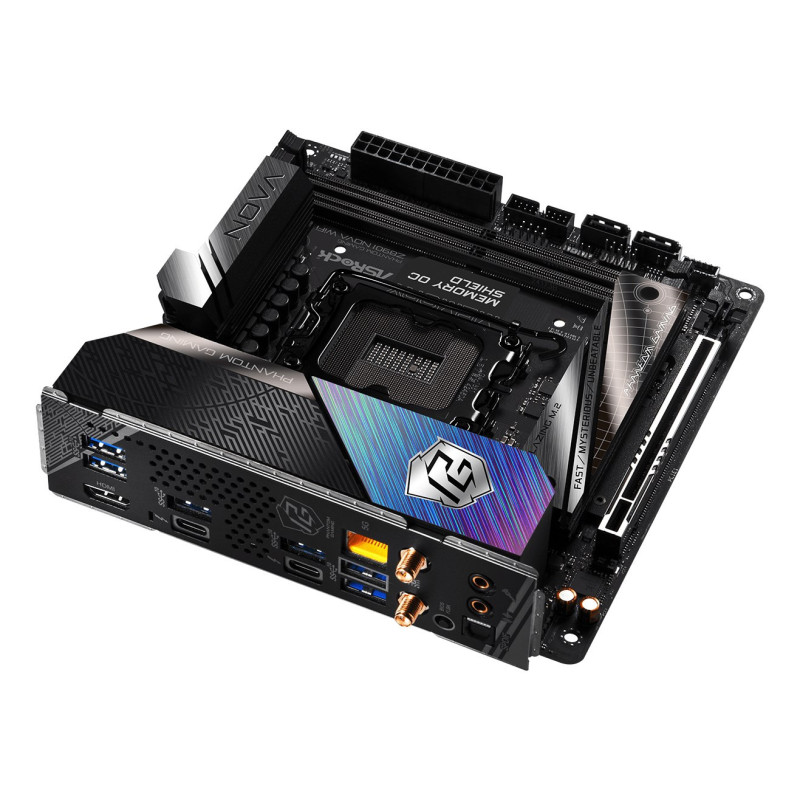

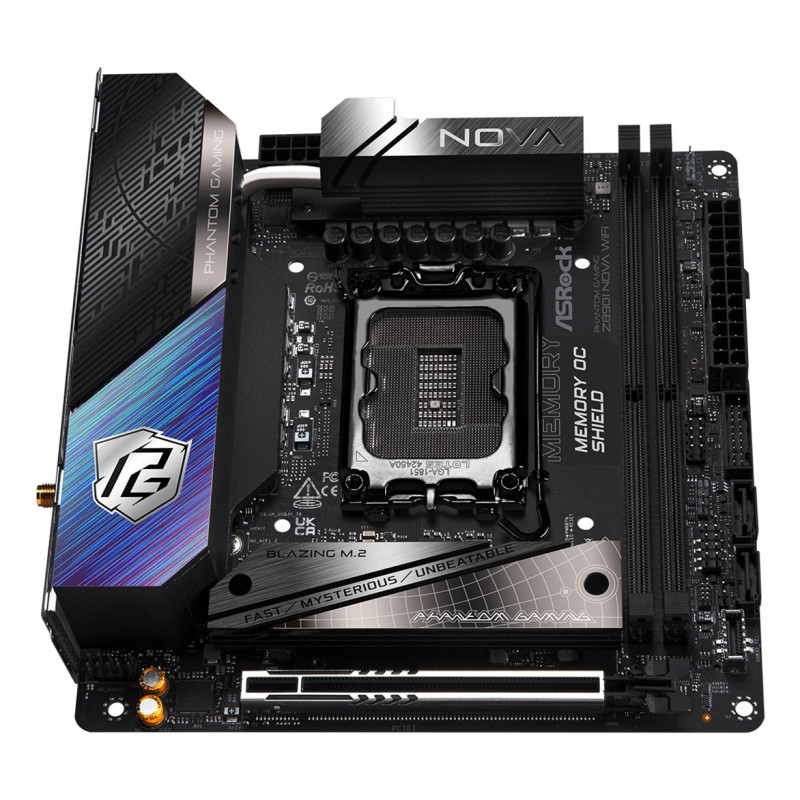

Asrock Phantom Gaming Z890I Nova WiFi Intel Z890 LGA 1851 (Socket V1) mini ITX
Product reference:
6-Z890I Nova WiFi
Asrock Phantom Gaming Z890I Nova WiFi Intel Z890 LGA 1851 (Socket V1) mini ITX
Asrock Phantom Gaming Z890I Nova WiFi Intel Z890 LGA 1851 (Socket V1) mini ITX
Product reference:
6-Z890I Nova WiFi
Asrock Phantom Gaming Z890I Nova WiFi Intel Z890 LGA 1851 (Socket V1) mini ITX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Supported processor sockets | LGA 1851 |
| Processor socket | LGA 1851 (Socket V1) |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| HDCP | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Certification | FCC, CE, ErP/EuP |
| Motherboard chipset | Intel Z890 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Audio chip | Realtek ALC4082 |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 11 x64 |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Width | 170 mm |
| Depth | 170 mm |
| Bluetooth | Yes |
| LAN controller | Realtek RTL8126 |
| Bluetooth version | 5.4 |
| Wi-Fi standards | Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11g |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Front panel audio connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 1 |
| Number of SATA III connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| 12V power connector | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 1 |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Screws included | Yes |
| Antenna included | Yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID support | Yes |
| RAID levels | 10, 1, 5 |
| Number of storage drives supported | 5 |

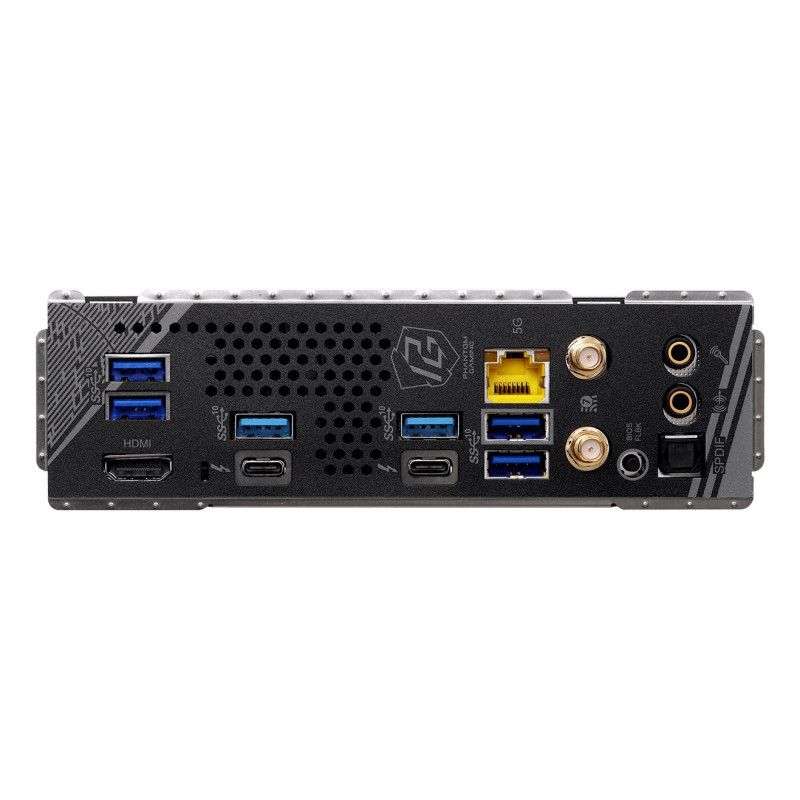

| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
| USB connector type | USB Type-C, USB Type-A |
| HDMI ports quantity | 1 |
| Thunderbolt ports quantity | 2 |
| Headphone outputs | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| HDMI version | 2.1 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Number of M.2 (M) slots | 3 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 3rd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
