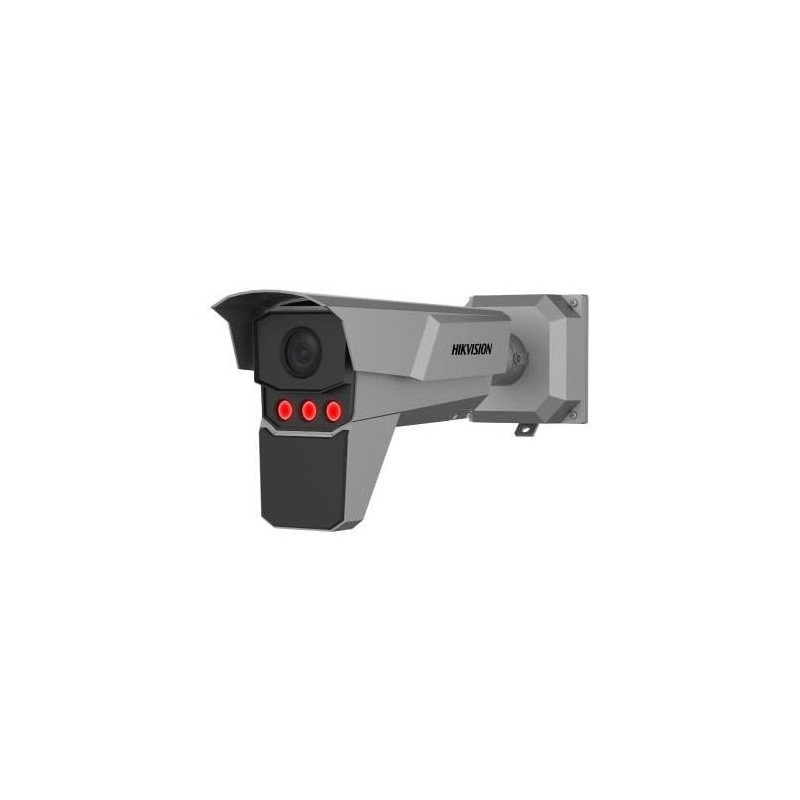

Hikvision speed camera iDS-TCM403-GIR / POE / 0832 F8-32mm (ANPR, 4MP, IR 50m, PoE+, IP67, IK10)
Product reference:
26-6942160450629
- Image resolution: 4 MP (1/1.8'' CMOS sensor)
- Integrated 77 GHz millimeter wave radar
- DarkFighter technology - Color: 0.001 Lux @ (F1.2,AGC ON)
- IR night light at a distance of 50 m
- Implemented number plate recognition technology with AI (ANPR)
- Captures license plates up to 120 km/h
- Video compression: H.265
- Protection classes: IP67, IK10
- Smart functions: speed recording, vehicle body/color classification, recognizes 212 different brands, collects metadata about traffic flow, records traffic violations.
Hikvision speed camera iDS-TCM403-GIR / POE / 0832 F8-32mm (ANPR, 4MP, IR 50m, PoE+, IP67, IK10)
Product reference:
26-6942160450629
- Image resolution: 4 MP (1/1.8'' CMOS sensor)
- Integrated 77 GHz millimeter wave radar
- DarkFighter technology - Color: 0.001 Lux @ (F1.2,AGC ON)
- IR night light at a distance of 50 m
- Implemented number plate recognition technology with AI (ANPR)
- Captures license plates up to 120 km/h
- Video compression: H.265
- Protection classes: IP67, IK10
- Smart functions: speed recording, vehicle body/color classification, recognizes 212 different brands, collects metadata about traffic flow, records traffic violations.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- Approvals
- Corrosion protection -Y: NEMA 4X (NEMA 250-2018)
- EMC CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
- Environmental protection CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
- Protection IK10: IEC 62262:2002,IP67: IEC 60529-2013
- RF CE-RED: EN 301489-1 V2.2.3,EN 301489-51 V2.1.1,EN 301091-2 V2.1.1,EN IEC 62311:2020
- Security CB: IEC 62368-1: 2014+A11,CB: IEC 62368-1: 2018+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
- Sound
- Audio bit rate 8Kbps (G.711) / 16Kbps (G.722.1)
- Audio Compression G.711/G.722.1
- Camera
- DayNight IR cut filter
- Image sensor 1/1.8″ progressive scan CMOS
- Highest resolution 2688 × 1520
- Minimal lighting Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter speed 1/50 s to 1/40000 s
- Features
- Main functions HDD error, Network disconnected, IP address conflict
- General information
- Dimensions 429.5 mm × 120 mm × 184.2 mm (16.9" × 4.72" × 7.3") (L × W × H)
- Main functions One-key reset, three streams, heartbeat, password protection, watermark
- Language 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
- Material Aluminum alloy
- Working conditions -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
- Operating system Linux
- Package size 595 mm × 259 mm × 193 mm (23.4" × 10.2" × 7.6") (L × W × H)
- Power supply DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block, PoE: 802.3at, Type 2, Class 4, max. 15 W
- Storage Condition -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
- Weight Approx. 3.405 kg (7.51 lb.)
- Weight with packaging Approx. 4.635 kg (10.22 lb.)
- Lighting
- Built-in Supplement Light Range Up to 50 m
- Built-in Supplement Light Type IR light
- IR wavelength 850 nm
- Supplement Light Number 3
- Photo
- Day/night switch Auto/Scheduled/Manual
- Photo beautification BLC, 3D DNA
- Image settings Saturation, Brightness, Contrast, Sharpness, Gain, White balance, AGC, Adjustable by client software or web browser.
- Wide Dynamic Range (WDR) 140 dB
- Interface
- Alarm 1 input interface, 1 output interface, 2 relays
- Sound Supported
- Web interface 1 RJ45 10M/100M/1000M Ethernet interface
- Internal memory Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB
- RS-485 1 RS-485 interface
- Wiegand 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)
- Lens
- Aperture 2.8-12mm: F1.38,8-32mm: F1.7
- Focal Length FOV 2.8-12mm : Horizontal: 113.5° to 39°, Vertical: 58.4° to 22.7°, Diagonal: 141.3° to 44.3°8-32mm : Horizontal: 41.9° to 15.1°°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3°
- Focus Car
- Iris type DC-IRIS
- Network
- API ISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M)
- Internal memory Micro SD/TF card (512 GB), local storage and CVR, NVR, ANR
- Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP,802.1X
- Safety Password protection, Complicated password, HTTPS encryption, 802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5), Watermark, IP address filter, Basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, Control timeout settings, Security audit log, TLS 1.2, 1.3, Host authentication (MAC address)
- Live video viewing Up to 6 channels
- User/port Up to 32 users3 user levels: administrator, operator, and user
- Browser Chrome V61+, IE9 to IE11, Firefox V41+, Edge
- Radar
- Coverage Lanes Up to 3 lane(s)
- Detection Distance Up to 100 m
- Horizontal Detection Angle ± 22°
- Modulation Waveform FMCW
- Speed Measuring Range up to 120Km/h
- Vertical Detection Angle ± 10°
- Working Frequency 77 GHz
- Road traffic and vehicle detection
- Accuracy (Under recommended installation and lighting conditions) Capture rate > 99%, Vehicle moving direction recognition accuracy > 98.5%, LPR accuracy > 98%, Mistaken capture rate < 2%
- Capture Speed Range 5 to 120 km/h
- Coverage Up to 3 lane(s)
- LPR Countries/Regions Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast, South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka, America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala, Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina, Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
- Motorcycle LPR Supported
- No License Plate Detection Supported
- Smart function Helmet Detection, Manned Non-MotorTraffic flow detection：average speed, traffic flow, queuing length, and traffic statusIncident detection: congestion, stopped vehicle, lane change, wrong-way driving, speeding, low-speed driving
- Vehicle Color Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, blackRecognizable at daytime only.
- Vehicle Manufacturer 212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD, Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, CC Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong, Koenigsegg, KIA, Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopard, Lynk Co, Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks, MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya, McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA, SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat, SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister, XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo
- Vehicle Type Car, Van, Bus, Truck, Light Truck, SUV(MPV), Pickup, Motorcycle, Tricycle
- Image
- H.264 type Baseline profile/Main profile/High profile
- H.265 type Main profile
- Main stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
- Secondary flow 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
- Third stream 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1280 × 720, 704 × 576, 352 × 288)
- Video bit rate 32 Kbps to 16 Mbps
- Video Compression H.264 and H.265 encodingMain stream: H.265/H.264/MJPEGSub-stream: H.265/H.264/MJPEG
| Weight | 4.53 kg |
