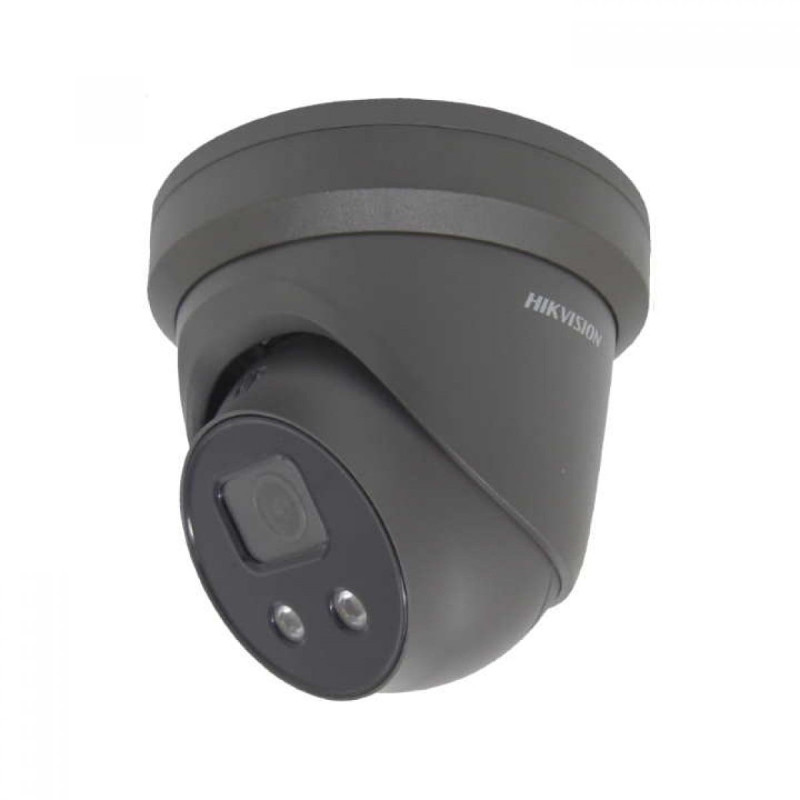

Hikvision dome DS-2CD2386G2-IU F2.8 (Black, 8 MP, 30M IR, AcuSense)
Product reference: 26-6941264095156
  • MP (MegaPixel): 8 MP
  • Lens: 2.8 mm, horizontal FOV: 111°
  • Technology: AcuSense
  • Built-in microphone: Yes
  • Night illumination: 30 m. IR
  • microSD slot: Yes, 256GB
  • Operating conditions: -30 °C to 60 °C
  • Safety level: IP67
  • Video compression: H.265+
  • WiFi: No
  • Bracket/base (optional): DS-1280ZJ-PT6
  • Outdoor/Indoor: Outdoor
  • In stock.
Hikvision dome DS-2CD2386G2-IU F2.8 (Black, 8 MP, 30M IR, AcuSense)

Hikvision dome DS-2CD2386G2-IU F2.8 (Black, 8 MP, 30M IR, AcuSense)

Product reference: 26-6941264095156
  • MP (MegaPixel): 8 MP
  • Lens: 2.8 mm, horizontal FOV: 111°
  • Technology: AcuSense
  • Built-in microphone: Yes
  • Night illumination: 30 m. IR
  • microSD slot: Yes, 256GB
  • Operating conditions: -30 °C to 60 °C
  • Safety level: IP67
  • Video compression: H.265+
  • WiFi: No
  • Bracket/base (optional): DS-1280ZJ-PT6
  • Outdoor/Indoor: Outdoor
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
26470 €
Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
Sensor1/1.8" Progressive Scan CMOS
Min.lightingColor: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter speed1/3 s to 1/100,000 s
Slow shutterYes
Day/nightIR Cut Filter
Angle controlPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
WDR120dB
LensFixed lens, 2.8/4/6 mm
ApertureF1.6
FOV2.8 mm, horizontal FOV: 110.7°, vertical FOV: 59.1°, diagonal FOV: 131° 4 mm, horizontal FOV: 87.1°, vertical FOV: 47.4°, diagonal FOV: 101.8° 6 mm, horizontal FOV: 50.8°, vertical FOV: 27.6°, diagonal FOV: 60°
InstallationM16
IR distanceUp to 30 m
Wavelength850 nm
Max.resolution3840 × 2160
Main stream50Hz: 20fps (3840×2160, 3072×1728), 25fps (2688×1520,1920×1080, 1280×720) 60Hz: 20fps (3840×2160, 3072×1728), 30fps (2688× 1520,1920×1080, 1280×720)
Secondary flow50Hz: 25fps (640×480, 640×360, 320×240) 60Hz: 30fps (640×480, 640×360, 320×240)
Tertiary flow50Hz: 25fps (1280×720, 640×480, 640×360, 320×240) 60Hz: 30fps (1280×720, 640×480, 640×360, 320×240)
Image compressionMain stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 typeBaseline Profile/Main Profile/High Profile
H.265 typeMain Profile
Video bit rate32 Kbps to 16 Mbps
Video encodingH.264 and H.265 encoding support
Audio compressionG.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio bit rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Ambient noise filteringYes
Audio frequency8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Main eventsMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
Additional protectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection (HumanVehicle classification)
ROI1 fixed region for main stream, sub-stream and third stream
LinkingUpload to FTP/NAS/memory card, notify surveillance center, send email, alarm output, audible warning, trigger capture
Image enhancementBLC, HLC, 3D DNA
Image settingSaturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night switchingDay/Night/Auto/Schedule
Network storagemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
ProtectionPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
BroadcastingUp to 6 channels
User/HostUp to 32 users, 3 levels: administrator, operator and user
Client softwareiVMS-4200, Hik-Connect, Hik-Central
BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Communication interface1 RJ45 10M/100M self-adaptive Ethernet port
SoundBuilt-in microphone
Internal memoryBuilt-in micro SD slot, up to 256 GB
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SecurityUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Chemical certificatesCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIngress protection: IP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
Software languages32 languages ​​English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Main functionsAnti-flicker, three streams, heartbeat, mirror, privacy masks, pixel counter
ResetReset via reset button on camera body, web browser and client software
Start and working conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Storage conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, class 3)
Consumption12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W
MaterialMetal
MeasurementsCamera: Φ 138.3 × 126.3 mm (Φ 5.4" × 5") With package: 170 × 170 × 150 mm (7" × 7" × 5.9")
WeightCamera: approx. 740 g (1.6 lb.) With package: approx. 1060 g (2.3 lb.)

Weight0.787 kg
