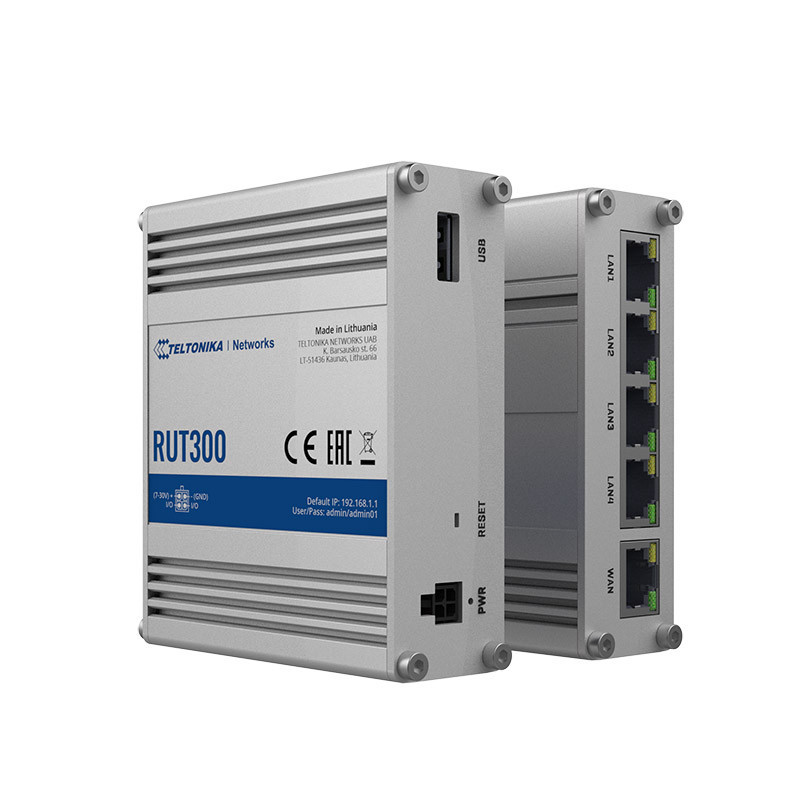

TELTONIKA industrial router RUT300
Product reference:
26-RUT300
- 5 x Fast Ethernet ports (10/100 Mbps). 2 x configurable digital inputs/outputs and USB 2.0
- Many VPN services, including OpenVPN, IPsec, PPTP, L2TP and DMVPN, L2TP, DMVPN, Stunnel, etc.
- Up to 4096 VLAN IDs for dedicated VLAN tags and VLANS ports
- Compatible with Teltonika Networks remote management system
TELTONIKA industrial router RUT300
Product reference:
26-RUT300
- 5 x Fast Ethernet ports (10/100 Mbps). 2 x configurable digital inputs/outputs and USB 2.0
- Many VPN services, including OpenVPN, IPsec, PPTP, L2TP and DMVPN, L2TP, DMVPN, Stunnel, etc.
- Up to 4096 VLAN IDs for dedicated VLAN tags and VLANS ports
- Compatible with Teltonika Networks remote management system
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- Network
- WAN 1 x WAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
- LAN 4 x LAN ports (can be configured as secondary WAN ports), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
- Internet
- Route Static routes, Dynamic routes
- Internet protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL)
- VoIP gateway support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Communication monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall Port forwards, traffic rules, NAT rules, custom rules
- DHCP Static and dynamic IP allocation, DHCP Relay
- QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS Supported > 25 service providers, others can be configured manually
- Network backups Wired WAN options, each of which can be used as an automatic failover
- Load balancing Balance Internet traffic over multiple WAN connections
- SSHFS Possibility to mount remote file system via SSH protocol
- Security
- Authentication Pre-shared key, digital certificates, X.509 certificates
- Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Burglary prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLANs Port and tag based VLAN separation
- WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
- VPN
- OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
- OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
- IPSec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
- GRE GRE tunnel
- PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support
- Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code
- DMVPN Method of building scalable IPsec VPNs
- SSTP SSTP client instance support
- ZeroTier ZeroTier VPN client support
- WireGuard WireGuard VPN client and server support
- WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
- PHOTO Firmware update from server, automatic notification
- SSH SSH (v1, v2)
- TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT MQTT Broker, MQTT publisher
- SNMP SNMP (v1, v2, v3), SNMP traps
- JSON-RPC Management API over HTTP/HTTPS
- MODBUS MODBUS TCP status/control
- RMS Teltonika Remote Management System (RMS)
- System Characteristics
- CPU QCA9531, MIPS 24kc, 650 MHz
- RAM 64MB, DDR2
- FLASH storage 16MB, SPI Flash
- Settings
- WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
- PHOTO Update FW/configuration from server
- RMS Update FW/configuration for multiple devices at once
- Remembering settings Update FW without losing current configuration
- USB
- Data transfer USB 2.0
- Usage Samba share, USB-to-serial
- External devices Possibility to connect external HDD, flash drive, printer
- Internal memory format FAT, FAT32, NTFS
- Exits/Entrances
- Configurable I/O 2 x Configurable digital Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA
- Events Email, RMS
- I/O juggler Allows to set certain I/O conditions to initiate event
- System parameters
- Connectors 4 pin industrial DC power socket
- Input voltage range 7 - 30 VDC, reverse polarity protection, voltage surge/transient protection
- PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
- Energy consumption Idle: 1.3 W, Max: 3 W
- Physical interfaces
- Network 5 x RJ45 ports, 10/100 Mbps
- I/Os 2 x Configurable digital Inputs/Outputs on 4 pin power connector
- LED indicators 5 x ETH status, 1 x Power
- System parameters 1 x 4-pin DC connector
- USB 1 x USB A port for external devices
- Reloading Reboot/User default reset/Factory reset button
- Physical Specifications
- Housing Aluminum housing with DIN rail mounting option
- Size 100 x 30 x 85 mm
- Weight 229 g
- Installation DIN rail, flat surface placement
- Working environment
- Operating temperature -40°C to 75°C
- Working environment 10% to 90% non-condensing
