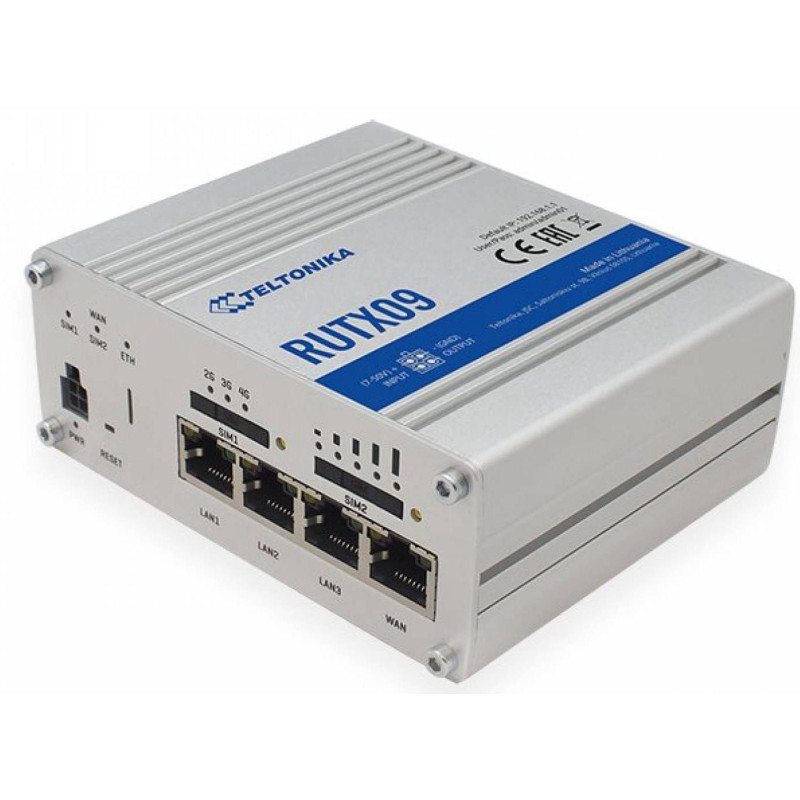

TELTONIKA industrial router LTE RUTX09
Product reference:
26-LTERUTX09
- 4 x Gigabit Ethernet ports
- Aluminum body
- Wireless connection speed 300Mbps
- GNSS
TELTONIKA industrial router LTE RUTX09
Product reference:
26-LTERUTX09
- 4 x Gigabit Ethernet ports
- Aluminum body
- Wireless connection speed 300Mbps
- GNSS
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
| Mobile features | |
| Mobile communication module | 4G (LTE) - Cat 6 up to 300 Mbps, 3G - Up to 42 Mbps |
| SIM replacement | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail |
| Status | Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto reply |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| White/black list | Operator black/white list |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| Tape management | Band lock, Used band status display |
| APN | Auto APN |
| Bridge mode | Direct connection (bridge) between mobile ISP and device on LAN |
| Ethernet features | |
| WAN | 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| LAN | 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Input/output | |
| Input | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| Output | 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Events | SMS, Email, RMS |
| Power | |
| Connection | 4 pin industrial DC power socket |
| Input voltage range | 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE | Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af, 802.3at and 802.3bt standards |
| Power consumption | 9W Max |
| Physical specification | |
| Housing material | Aluminum housing with DIN rail mounting option |
| Dimensions (W x H x D) | 115 x 44.2 x 95.1 mm |
| Weight | 455 g |
| Installation features | DIN rail, flat surface placement |
| Environmental influence | |
| Temperature influence | -40°C to 75°C |
| Moisture resistance | 10% to 90% non-condensing |
| Protection | IP30 |
