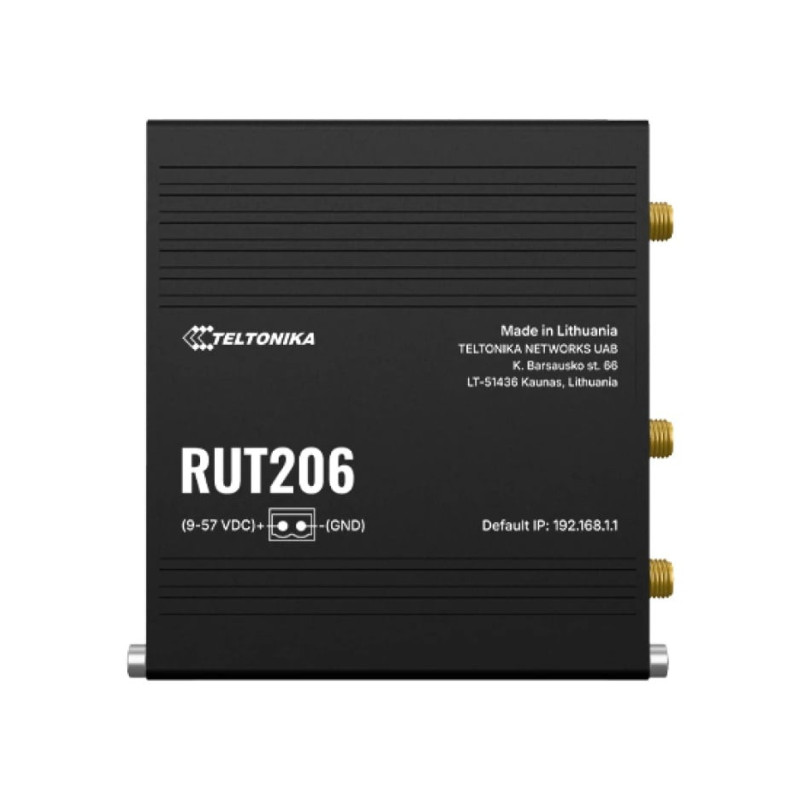

Modem Teltonika RUT206 LTE(4G)
Product reference: 26-4779051842049
  • Type: Modem
  • Industrial
  • Model: RUT206
  • Brand: Teltonika
  • Mobile connection: LTE (4G) Cat 4
  • Download speed: Up to 150 Mbps
  • Upload speed: Up to 50 Mbps
  • Network support: UMTS, GSM, GPRS
  • LAN ports: 1x LAN 10/100 Mbps
  • WAN ports: 1x WAN
  • Wi-Fi standard: Wi-Fi 4
  • Operating modes: AP, STA
  • SMS function: Yes
  • I/O ports: 1 input/output
  • Processor: Mediatek MIPS 24Kc 580 MHz
  • Protocols: Modbus, RS232/485
  • Power supply: Passive PoE In, 9-57V
  • Protection class: IP30
Modem Teltonika RUT206 LTE(4G)

Modem Teltonika RUT206 LTE(4G)

Product reference: 26-4779051842049
  • Type: Modem
  • Industrial
  • Model: RUT206
  • Brand: Teltonika
  • Mobile connection: LTE (4G) Cat 4
  • Download speed: Up to 150 Mbps
  • Upload speed: Up to 50 Mbps
  • Network support: UMTS, GSM, GPRS
  • LAN ports: 1x LAN 10/100 Mbps
  • WAN ports: 1x WAN
  • Wi-Fi standard: Wi-Fi 4
  • Operating modes: AP, STA
  • SMS function: Yes
  • I/O ports: 1 input/output
  • Processor: Mediatek MIPS 24Kc 580 MHz
  • Protocols: Modbus, RS232/485
  • Power supply: Passive PoE In, 9-57V
  • Protection class: IP30
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
162,28 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Mobile module 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
  • 3GPP release Release 9
  • SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
  • Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
  • SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
  • USSD Supports sending and reading Unstructured Supplementary Service Data messages
  • Black/white list Operator black/white list (by country or separate operators)
  • Group management Band lock, Used band status display
  • SIM inactivity protection service Idle SIM remains inactive until the device switches to it, preventing unnecessary data usage
  • SIM PIN code management Enables setting, changing, or disabling the SIM card's PIN
  • APN Auto APN
  • Bridge Direct connection (bridge) between mobile ISP and device on LAN
  • Transfer Router assigns its mobile WAN IP address to another device on LAN
  • Wireless mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
  • Wi-Fi security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
  • SSID/ESSID SSID stealth mode and access control based on MAC address
  • Wi-Fi users Up to 50 simultaneous connections
  • Wireless features Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
  • Wireless MAC filter Allowlist, blocklist
  • Wireless QR code generator Auto-connect to network via QR code scanning
  • TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device
  • WAN 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
  • LAN 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
  • Route Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
  • Internet protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on LAN (WOL), VXLAN
  • VoIP gateway support H.323 and SIP-alg protocol NAT helpers for proper VoIP packet routing
  • Communication monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • Firewall Port forward, traffic rules, custom rules, TTL target customization
  • Firewall status page View all Firewall statistics, rules, and rule counters
  • Port management View, enable/disable, configure transmission speed of device ports
  • Network topology Visual representation of connected devices
  • DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, static leases with MAC wildcards
  • QoS/Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol, or port, WMM, 802.11e
  • DDNS Supported for > 25 service providers; manual configuration available
  • DNS over HTTPS Enables secure DNS resolution via HTTPS
  • Network backups Wi-Fi WAN, Mobile, VRRP, Wired options for automatic failover
  • Load balancing Distributes Internet traffic over multiple WAN connections
  • Public Internet access point Captive portal, internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, user management, 9 customizable themes
  • Hotspot 2.0 Seamless, secure, and automatic connection to trusted wireless networks
  • SSHFS Supports remote file system mounting via SSH protocol
  • Traffic management Real-time monitoring, wireless signal charts, traffic usage history
  • Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal External RADIUS authentication, IP login attempt blocking, built-in random password generator
  • Firewall Preconfigured rules via WebUI, unlimited rules via CLI, DMZ, NAT, NAT-T, NAT64
  • Burglary prevention DDOS protection (SYN flood, SSH, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
  • VLANs Port and tag-based VLAN separation
  • Mobile quota control Customizable mobile data limit, warning alerts, phone number configuration
  • WEB filter Blacklist for blocking unwanted websites, Whitelist for allowed sites
  • Access control Flexible access control for SSH, Web UI, CLI, and Telnet
  • Generating SSL certificates Supports Let's Encrypt and SCEP certificate generation
  • 802.1x Port-based network access control server
  • OpenVPN Multiple clients and server support, 27 encryption methods
  • IPsec XFRM, IKEv1, IKEv2, 14 encryption methods (3DES, AES128, AES256, AES128GCM8, AES256GCM16, etc.)
  • GRE GRE tunnel, GRE tunnel over IPsec support
  • PPTP, L2TP Client/Server support, L2TPv3, L2TP over IPsec support
  • Stunnel Proxy for adding TLS encryption to clients and servers
  • DMVPN Scalable IPsec VPN support, Phase 2 and Phase 3, Dual Hub support
  • SSTP SSTP client instance support
  • ZeroTier ZeroTier VPN client support
  • WireGuard WireGuard VPN client and server support
  • Tinc Encrypted tunneling with client and server support
  • BACNET Router mode with RS485, TCP support
  • OPC UA Client and Server modes with TCP support
  • MODBUS Server and Client modes, RTU and TCP support, custom register block requests
  • DNP3 TCP Master, DNP3 Outstation; RS232, RS485, TCP support
  • DLMS Client mode for utility meter data exchange; TCP support
  • COSEM Scans COSEM objects for auto-detection and configuration
  • API Teltonika Networks Web API (beta) support
  • Monitoring Management HTTP/HTTPS WebUI, FOTA updates, SSH (v1, v2), SMS commands, remote call management, TR-069, MQTT, SNMP, JSON-RPC, RMS support
  • IoT Platforms ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core integration
  • Processor Mediatek, 580 MHz, MIPS 24KEc
  • RAM 128MB DDR2
  • FLASH storage 32MB NOR Flash
  • Software update Update via WebUI, FOTA, RMS; configuration backup and restore
  • Factory reset Restores all system settings, IP, PIN, and user data to default
  • Operating system RutOS (OpenWrt-based Linux OS)
  • Languages Busybox shell, Lua, C, C++
  • Developer tools SDK package with build environment
  • Series RS232 (no flow control), RS485 (half-duplex 2-wire)
  • SD CARD Micro SD (internal), up to 2 TB, FAT32/NTFS/ext2/ext3/ext4
  • PoE In 1 x PoE In, Active PoE 802.3af Class 0 (12.94 W)
  • Power input 9 - 57 VDC, reverse polarity surge protection
  • Physical interfaces 2 x RJ45 ports, 10/100 Mbps; 2 x SIM slots (Mini SIM - 2FF); 2 x SMA for Mobile, 1 x RP-SMA for Wi-Fi
  • Size 83 x 25 x 83 mm
  • Weight 132 g
  • Installation DIN rail, wall, flat surface (kit required)
  • Operating temperature -40°C to 75°C
  • Intrusion protection IP30
  • Certificates CE, UKCA, CB, RCM, EAC, UCRF

Manufacturer codeLTERUT206
ManufacturerTeltonics
Weight0.125 kg
