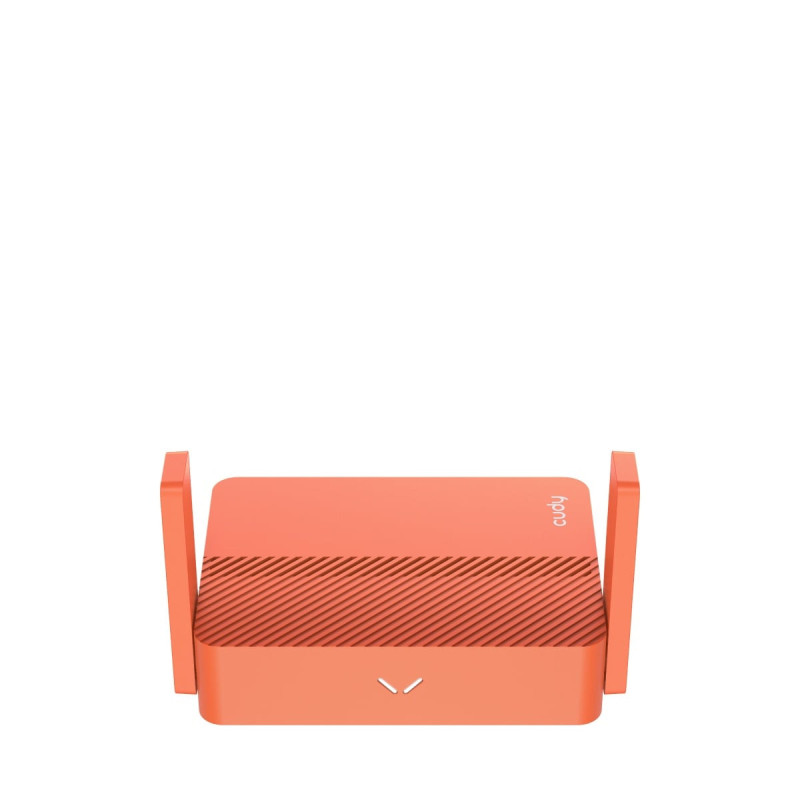

Mini router CUDY TR1200
Product reference: 26-6971690793074
  • Type: Router
  • Model: CUDY TR1200 1.0
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • Ports: 2 x 100 Mbps RJ45 (1 x WAN; 1 x LAN); 1 x USB-A 2.0
  • Wi-Fi speed: up to 300 Mbps @ 2.4 GHz; 867 Mbps @ 5 GHz
  • Recommended number of connected devices: 40 (max 128)
  • MIMO technology: 2x2 MU-MIMO
  • Security protocols: WPA/WPA2/WPA3
  • Operating modes: Router, AP, Extender, WISP, Client
  • Cudy Mesh: Yes
  • Wi-Fi distance: up to 150 m
  • Flash memory: 16MB NOR
  • DDR Memory (RAM): 128MB DDR3
  • Power consumption: 3 W (max 8 W)
  • Power supply: 5V 2A DC (via USB-C connector)
  • In stock
Mini router CUDY TR1200

Mini router CUDY TR1200

Product reference: 26-6971690793074
  • Type: Router
  • Model: CUDY TR1200 1.0
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • Ports: 2 x 100 Mbps RJ45 (1 x WAN; 1 x LAN); 1 x USB-A 2.0
  • Wi-Fi speed: up to 300 Mbps @ 2.4 GHz; 867 Mbps @ 5 GHz
  • Recommended number of connected devices: 40 (max 128)
  • MIMO technology: 2x2 MU-MIMO
  • Security protocols: WPA/WPA2/WPA3
  • Operating modes: Router, AP, Extender, WISP, Client
  • Cudy Mesh: Yes
  • Wi-Fi distance: up to 150 m
  • Flash memory: 16MB NOR
  • DDR Memory (RAM): 128MB DDR3
  • Power consumption: 3 W (max 8 W)
  • Power supply: 5V 2A DC (via USB-C connector)
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
2408 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • General
  • Model version TR1200 1.0
  • CPU chipset MT7628
  • CPU information 580 MHz Single-Core, MIPS24KEC
  • Flash/ROM 16 MB (128 Mbit) NOR
  • DDR/RAM 128MB (1Gbit) DDR3
  • 5GHz Wi-Fi speed 867Mbps
  • 2.4 GHz Wi-Fi speed 300Mbps
  • 5 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • Wi-Fi antennas 2× Fixed
  • Max. 5 GHz antenna gain 3.81 dBi
  • Max. 2.4 GHz antenna gain 3.97 dBi
  • Beamforming True
  • Operating range Max: 150 m (492 ft)
  • Wall operation Two wooden walls < 10 cm (4"), One concrete wall < 20 cm (7")
  • 10/100Mbps RJ45 ports 2
  • Notes on Ethernet 1× WAN port, 1× LAN port
  • USB-A 2.0 Ports 1
  • LED indicators System
  • Physical buttons Reset Button, Configurable DIP Switch
  • Power input USB-C Port
  • Feeding methods DC/PD
  • DC input 5V 2A, PD
  • Max. power consumption 8W
  • Standby power consumption 3W
  • Operating temperature 0 ~ 40 (32 ~104)
  • Storage temperature -40 ~ 70 (-40 ~ 158 )
  • Operating humidity 10% ~ 90% non-condensing
  • Storage humidity 5% ~ 95% non-condensing
  • Certificates FCC, CE
  • Installation options Desktop
  • Dimensions 118×80×27.5 mm (4.65×3.15×1.08 inches)
  • Product weight 99g (3.49oz)
  • Package contents TR1200, USB Charging Cable, Ethernet Cable, Installation Guide

Manufacturer codeCUDYTR1200
ManufacturerCudi
Weight0.147 kg
