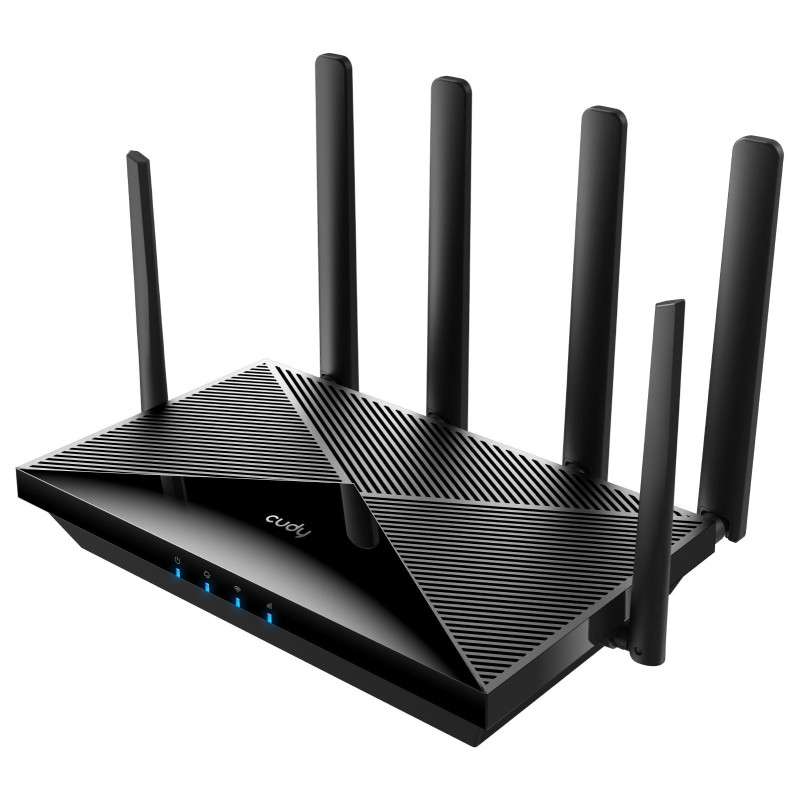

5G router CUDY P5 (Wi-Fi 6)
Product reference: 26-6971690792282
  • Type: Router
  • Model: CUDY P5 1.0
  • Mobile connectivity: 5G Rel. 16 (DL 4G Cat 19; UL 4G Cat 18)
  • Wi-Fi standard: Wi-Fi 6
  • SIM card slot: 2 x nano SIM
  • Ports: 3 x 1Gbps RJ45
  • Max download speed: 3.4 Gbps
  • Max. upload speed: 900 Mbps
  • Wi-Fi speed: up to 574 Mbps @ 2.4 GHz; 2402 Mbps @ 5 GHz
  • MIMO technology: 2x2 MIMO
  • Operating distance: 170 m
  • Power consumption: ≤ 21.7 W
  • Power supply: 12V 2.5A DC
  • Operating temperature: 0°C to 40°C
5G router CUDY P5 (Wi-Fi 6)

5G router CUDY P5 (Wi-Fi 6)

Product reference: 26-6971690792282
  • Type: Router
  • Model: CUDY P5 1.0
  • Mobile connectivity: 5G Rel. 16 (DL 4G Cat 19; UL 4G Cat 18)
  • Wi-Fi standard: Wi-Fi 6
  • SIM card slot: 2 x nano SIM
  • Ports: 3 x 1Gbps RJ45
  • Max download speed: 3.4 Gbps
  • Max. upload speed: 900 Mbps
  • Wi-Fi speed: up to 574 Mbps @ 2.4 GHz; 2402 Mbps @ 5 GHz
  • MIMO technology: 2x2 MIMO
  • Operating distance: 170 m
  • Power consumption: ≤ 21.7 W
  • Power supply: 12V 2.5A DC
  • Operating temperature: 0°C to 40°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
359,58 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General information
  • Model version P5 1.0
  • Chipset IPQ5018
  • Processor information 1.0 GHz Dual-core, ARM Cortex-A53
  • Flash/ROM memory 128MB (1Gbit) NAND
  • DDR/RAM memory 256 MB (2 Gbit) DDR3
  • Mobile communication standards 5G Rel. 16; DL 4G Cat. 19 / UL 4G Cat. 18
  • Mobile communication antennas 4× Detachable
  • Detachable Cellular Antennas Connector SMA Female
  • SIM card options 2× Nano SIM Slots
  • Available versions EU, US
  • EU Version Suitable Region Europe, Middle East, Africa, Asia-Pacific (excluding JP, CN), Brazil
  • EU Version Max DL Speed 3.4 Gbps (NSA), 2.4 Gbps (SA)
  • EU Version Max UL Speed 550 Mbps (NSA), 900 Mbps (SA)
  • EU Version Advanced DL/UL 4CA, DL 4×4, UL 2×2 MIMO
  • EU Version Cellular Bands 5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78; LTE-FDD: B1/3/5/7/8/20/28/32/71; LTE-TDD: B38/40/41/42/43; WCDMA: B1/5/8
  • US Version Suitable Region Global
  • US Version Max DL Speed 3.4 Gbps (NSA), 2.4 Gbps (SA)
  • US Version Max UL Speed 550 Mbps (NSA), 900 Mbps (SA)
  • US Version Advanced DL/UL 4CA, DL 4×4, UL 2×2 MIMO
  • US Version Cellular Bands 5G Sub 6 GHz: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79; LTE-FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71; LTE-TDD: B34/38/39/40/41/42/43/48; LAA: B46; WCDMA: B1/2/4/5/8/19
  • 5 GHz Wi-Fi Speed 2402 Mbps
  • 2.4 GHz Wi-Fi speed 574 Mbps
  • 5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • Wi-Fi antennas 2× Fixed
  • 5 GHz antenna amplification max 4.79 dBi
  • 2.4 GHz antenna amplification max 3.59 dBi
  • Beamforming True
  • FEM or PA/LNA 5 GHz: 2× External; 2.4 GHz: 2× External
  • Operating range Max: 170 m (558 ft)
  • Wall permeability Two wooden walls lt;10 cm (4") or one concrete wall lt;20 cm (7")
  • Physical buttons WPS Button, Reset Button
  • Gigabit RJ45 Ports 4
  • Ethernet Notes One port supports WAN/LAN configuration; rest are LAN ports
  • LED indicators Power, Internet, Wi-Fi, Cellular
  • Power input DC Jack
  • Feeding methods DC
  • DC 12V 2.5A
  • Power adapter Input: 100 ~ 240 V, 50/60 Hz AC; Output: 12V 2.5A DC
  • EMS Protection ESD: Contact: 4kV; Air: 8kV
  • Working temperature 0 ~ 40 (32 ~104)
  • Storage temperature -40 ~ 70 (-40 ~158)
  • Working humidity 10% ~ 90% non-condensing
  • Storage humidity 5% ~ 90% non-condensing
  • Certificates FCC, CE
  • Measurements 253×152.5×48.2 mm (9.96×6×1.9 inches)
  • Product weight 670g (23.63oz)
  • Installation Desktop, Wall-mount
  • Package contents P5, Detachable Antennas, Power Adapter, Ethernet Cable, Installation Guide

ManufacturerCudy
Manufacturer codeCUDYP5
Weight0.83 kg
