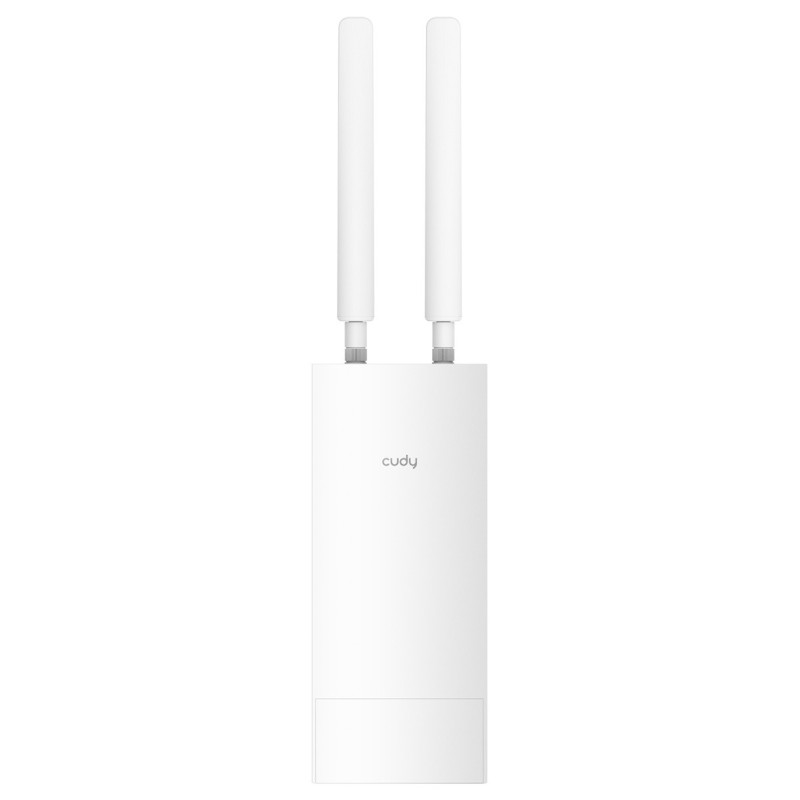

4G LTE router CUDY LT400 Outdoor (Wi-Fi 4, outdoor installation)
Product reference:
26-6971690792916
- Type: Router
- Model: CUDY LT400 Outdoor 1.0
- Mobile connection: 4G LTE, Cat 4
- Wi-Fi standard: Wi-Fi 4
- SIM card slot: 1 x nano SIM
- Ports: 1 x 100Mbps RJ45
- Max download speed: 150 Mbps
- Max. upload speed: 50 Mbps
- Wi-Fi speed: up to 300 Mbps @ 2.4 GHz
- MIMO technology: 2x2 MIMO
- Operating distance: 70 m
- Power consumption: ≤ 8 W
- Power supply: 24V Passive PoE
- IP Standard: IP65
- Operating temperature: 0°C to 40°C
4G LTE router CUDY LT400 Outdoor (Wi-Fi 4, outdoor installation)
Product reference:
26-6971690792916
- Type: Router
- Model: CUDY LT400 Outdoor 1.0
- Mobile connection: 4G LTE, Cat 4
- Wi-Fi standard: Wi-Fi 4
- SIM card slot: 1 x nano SIM
- Ports: 1 x 100Mbps RJ45
- Max download speed: 150 Mbps
- Max. upload speed: 50 Mbps
- Wi-Fi speed: up to 300 Mbps @ 2.4 GHz
- MIMO technology: 2x2 MIMO
- Operating distance: 70 m
- Power consumption: ≤ 8 W
- Power supply: 24V Passive PoE
- IP Standard: IP65
- Operating temperature: 0°C to 40°C
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- General information
- Model version LT400 Outdoor 1.0
- Chipset MT7628
- Processor information 580 MHz Single-Core, MIPS24KEC
- Flash/ROM memory 8 MB (64 Mbit) NOR
- DDR/RAM memory 64MB (512Mbit) DDR2
- Mobile communication standards 4G Cat. 4
- Mobile communication antennas 2× Fixed
- Detachable Cellular Antennas Connector SMA Female
- SIM card options 1× Nano SIM Slot
- Available versions EU, US
- EU Version Suitable Region Europe, Middle East, Africa
- EU Version Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
- EU Version Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
- EU Version Advanced DL 2×2 MIMO
- EU Version Cellular Bands LTE-FDD: B1/3/5/7/8/20/28; LTE-TDD: B38/40/41; WCDMA: B1/5/8
- US Version Suitable Region United States, Canada
- US Version Max DL Speed 150Mbps
- US Version Max UL Speed 50 Mbps
- US Version Advanced DL 2×2 MIMO
- US Version Cellular Bands LTE-FDD: B2/4/5/12/13/14/66/71; WCDMA: B2/4/5
- 2.4 GHz Wi-Fi speed 300Mbps
- 2.4 GHz Wi-Fi streams 2T2R (2×2 MIMO)
- Wi-Fi antennas 2× Internal
- Beamforming True
- FEM or PA/LNA 2.4 GHz: 2× Internal
- Operating range Max: 170 m (558 ft); Park: 150 m (492 ft); Street: 30 m (98 ft); Woods: 30 m (98 ft)
- Wall permeability NA
- Physical buttons Reset Button
- 10/100 Mbps RJ45 connectors 1
- Ethernet Notes Accepts PoE powering
- LED indicators System, Internet, LAN, Wi-Fi, Cellular Signal Strength
- Power input PoE via Ethernet Port
- Feeding methods Passive PoE
- Passive PoE 24V
- Power adapter Input: 100 ~ 240 V, 50/60 Hz AC; Output: 24V 0.5A DC
- Max. power consumption 8W
- Standby power consumption 4W
- EMS Protection ESD: Contact: 4kV; Air: 8kV
- Surge protection Power: DM 2kV, CM 4kV; RJ45: CM 4kV
- Working temperature -20 ~ 60 (-4 ~ 140)
- Extended Operating Temperature (Industrial SIM) -40 ~ 65 (-40 ~ 149 )
- Storage temperature -40 ~ 70 (-40 ~ 158 )
- Working humidity 0% ~ 100% non-condensing
- Storage humidity 5% ~ 90% non-condensing
- Certificates FCC, CE
- Device Body Dimensions 240×100×53.7 mm (9.45×3.94×2.11 inches)
- Antenna Dimensions 197.5×21.6×15.5 mm (7.78×0.85×0.61 inches)
- Product weight 420 g (14.82 oz.)
- Installation Wall-mount, Pole-mount
- Package contents LT400 Outdoor, Detachable Antennas, PoE Adapter, Power Cord, Mounting Kit, Ethernet Cable, Installation Guide
| Manufacturer code | CUDYLT400OUT |
| Manufacturer | Cudi |
| Weight | 0.572 kg |
