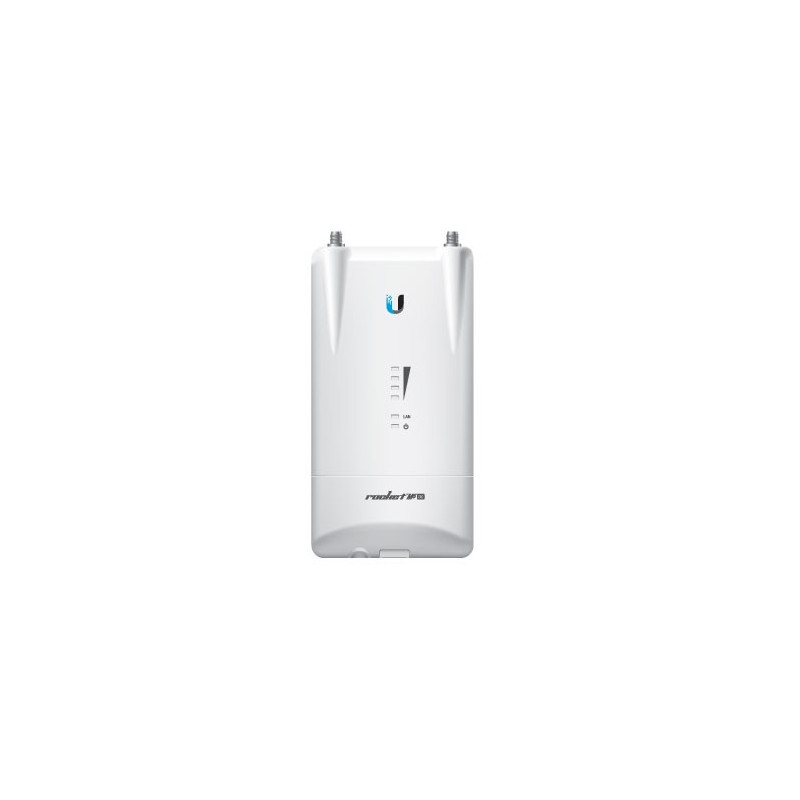

UBIQUITI Rocket 5AC airMAX® ac BaseStation

Ubiquiti RocketM5 AC Lite 802.11n/ac RM5-AC-PTP-Lite Ubiquiti airMAX®ac BaseStation R5AC-Lite Featuring proprietary airMAX® ac technology, the Rocket™5ac Lite is ideal for deployment in Point-to-Point (PtP) bridging applications requiring maximum performance. Point-to-MultiPoint (PtMP) functionality will be added via a future firmware upgrade. Performance Breakthrough via ac chipset airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance. Superior Processing Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology. Plug and Play Integration The innovative airMAX® ac antennas feature significant advances in beam and energy isolation performance for increased capacity of airMAX networks.

Dimensions: 162 x 84 x 37 mm (6.38 x 3.31 x 1.46') Weight: 250 g (8.81 oz) Power Supply: 24V, 0.5A Gigabit PoE Adapter Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return) Max. Power Consumption: 8.5W Operating Frequency: 5150 - 5875 MHz (Worldwide) Processor: Atheros MIPS 74Kc, 720 MHz Memory: 128 MB DDR2 SDRAM, 16 MB NOR FLASH Networking Interface: (1) 10/100/1000 Mbps RF Connections: (2) RP-SMA (Waterproof) LEDs: Power, LAN, (4) Signal Strength Channel Sizes: PtP Mode - 10/20/30/40/50/60/80 MHz PtMP Mode - 10/20/30/40 MHz Enclosure Characteristics: Outdoor UV Stabilized Plastic Supported Voltage Range: 20-26VDC ESD/EMP Protection: ± 24KV Air / Contact Operating Temperature: -40 to 80° C (-40 to 176° F) Operating Humidity: 5 to 95% Noncondensing Shock and Vibration: ETSI300-019-1.4 Wireless Approvals: FCC, IC, CE RoHS Compliance: Yes Modes: Access Point, Station Services: Web Server, SNMP, SSH Server, Telnet, Ping Watchdog, DHCP, NAT, Bridging, Routing Utilities: Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed ​​Test Distance Adjustment: Dynamic Ack and Ackless Mode Power Adjustment: Software Adjustable UI or CL Security: WPA2 AES Only QoS: Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low Statistical Reporting Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate Other: Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM Ubiquiti Specific Features: 30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Acless Mode
