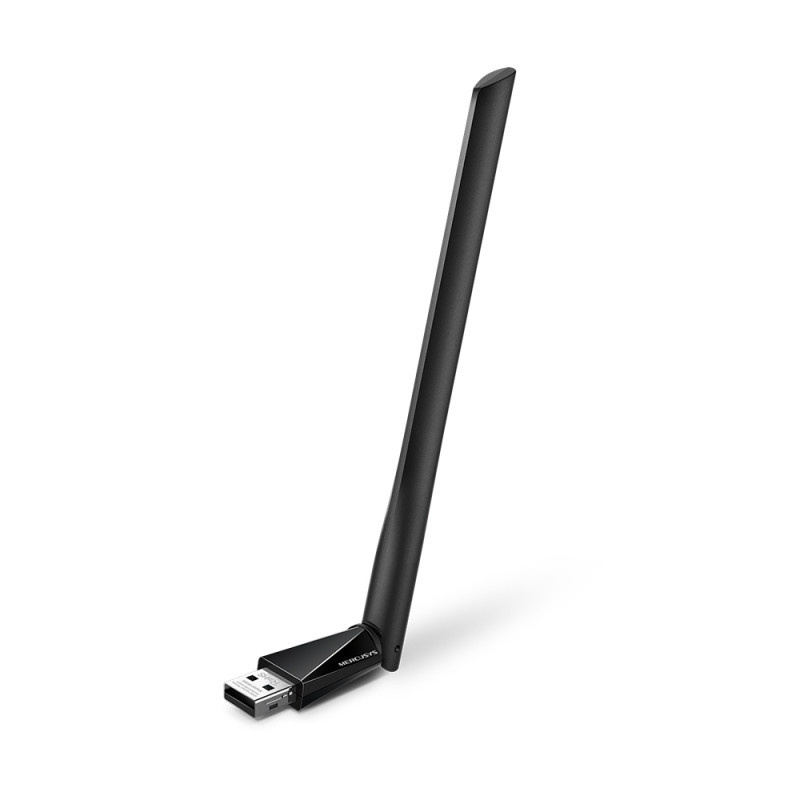

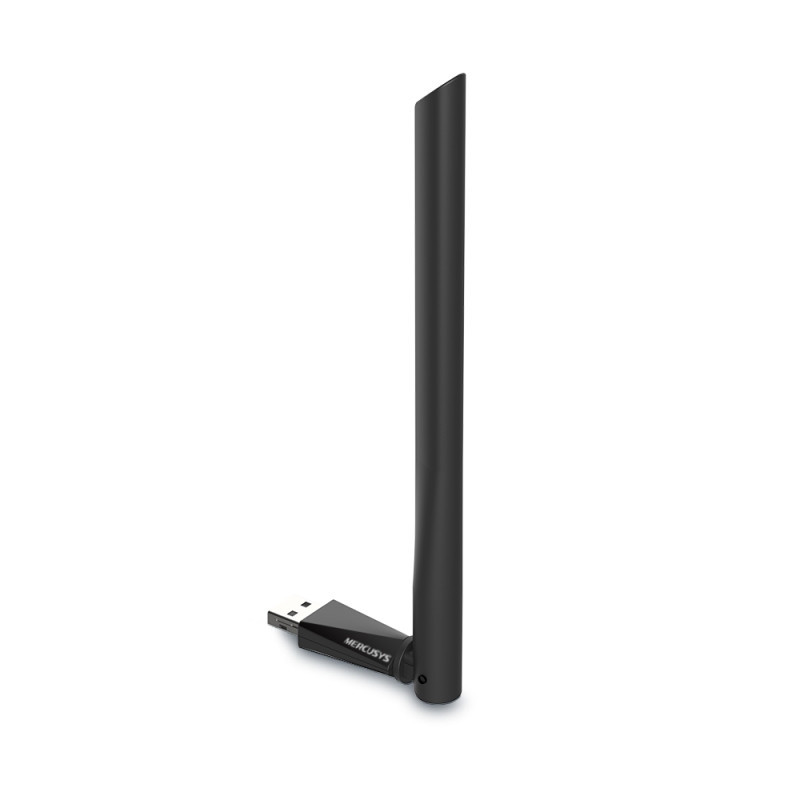

MERCUSYS AC650 High Gain Wireless Dual Band USB Adapter

• High-Speed ​​Dual-Band Wi-Fi: 256-QAM support increases the 2.4 GHz data rate from 150 Mbps to 200 Mbps. Enjoy speeds of up to 200 Mbps on the 2.4 GHz band and 433 Mbps on the 5 GHz band, to take full advantage of your AC Wi-Fi.

• High-Gain Antenna: A 5dBi high-gain antenna greatly enhances the reception and transmission strength of the USB adapter


• Internal Driver: Smart easy-install for Windows operating system

• Supports the Latest Operating Systems: Fully compatible with Windows 10/8.1/8/7/XP

Wireless

Wireless Standards IEEE 802.11b/g/n IEEE 802.11a/n/ac Frequency 2400 MHz -2483.5 MHz 5150 MHz -5250 MHz 5250 MHz -5350 MHz 5470 MHz -5725 MHz WiFi Speeds • 11ac: Up to 433Mbps (Dynamic) • 11n: Up to 200Mbps (Dynamic) Reception Sensitivity • 433M: -62dBm@10% PER • 200M: -65dBm@10% PER • 54M: -75 dBm@10% PER • 11M: -90 dBm@8% PER Wireless Security WEP, WPA/WPA2, WPA-PSK/ WPA2-PS, 802.1X

Hardware

Dimensions 2.28 × 0.66 × 6.83 in (57.8 × 16.8 × 173.4 mm) Interfaces USB 2.0 Antenna Type 1 External High Gain 5dBi Antenna LED Status

Others

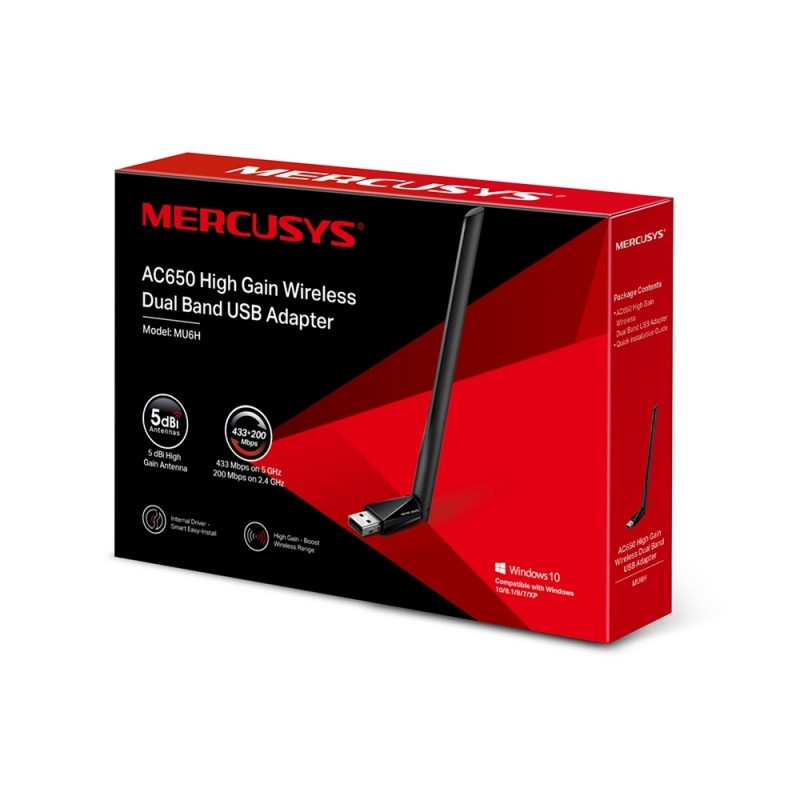

Package Contents 1. AC650 High Gain Wireless Dual Band USB Adapter ( MU6H ) 2. Quick Installation Guide System Requirements Windows10/8.1/8/7/XP
