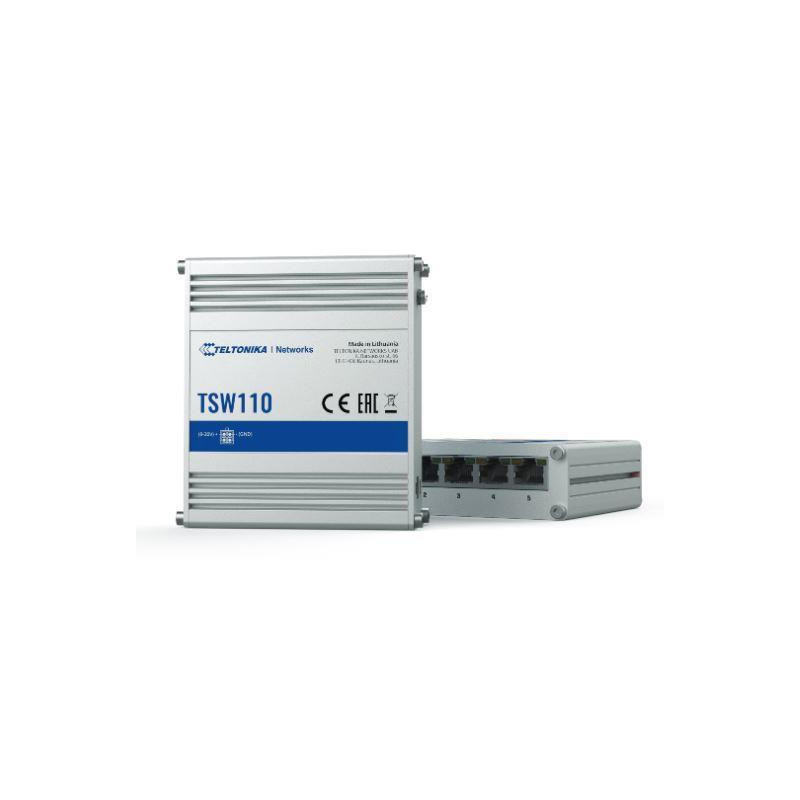

Switch, TELTONIKA, TSW110000000, Switch type Unmanaged, Switch layer L2, 5xRJ-45 ports, RJ-45 Ports Type Gigabit Etherne
Product reference: 2-4779027312958
Switch, TELTONIKA, TSW110000000, Switch type Unmanaged, Switch layer L2, 5xRJ-45 ports, RJ-45 Ports Type Gigabit Etherne

Switch, TELTONIKA, TSW110000000, Switch type Unmanaged, Switch layer L2, 5xRJ-45 ports, RJ-45 Ports Type Gigabit Etherne

Product reference: 2-4779027312958
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
4526 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

PLUG-N-PLAY



No additional configuration needed



DURABILITY



Rugged aluminium housing



MOUNTING



DIN rail and surface mounting options

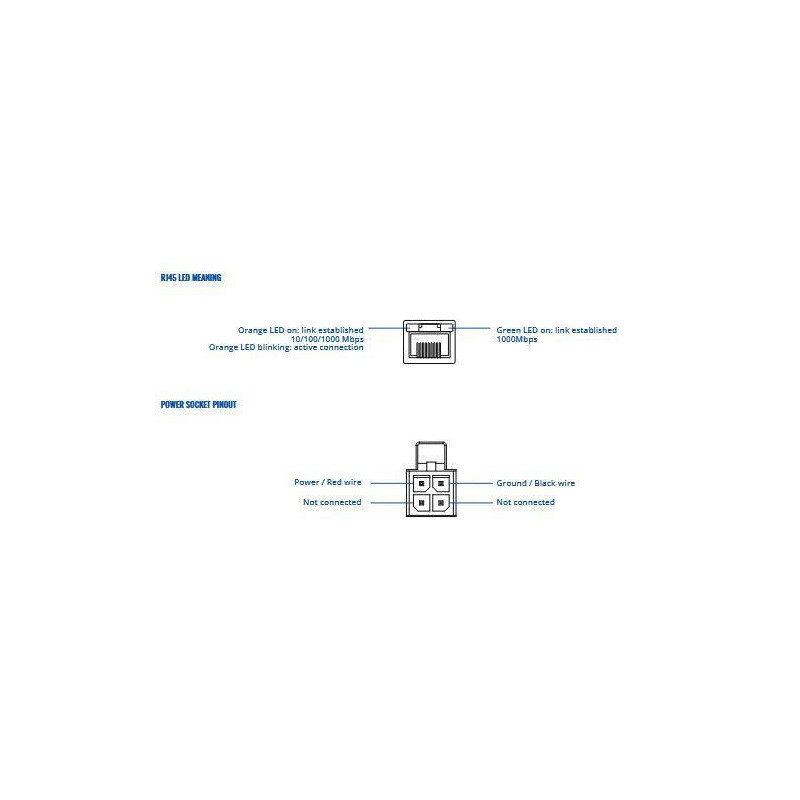

STATUS LEDS



1 x Power, 10 x Ethernet



9-30 V



Wide range of supported power supply voltages



GIGABIT ETH



5 x Gigabit Ethernet with speeds up to 1000 Mbps


  • TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product - TSW100

  • Possible to power up through the first LAN port

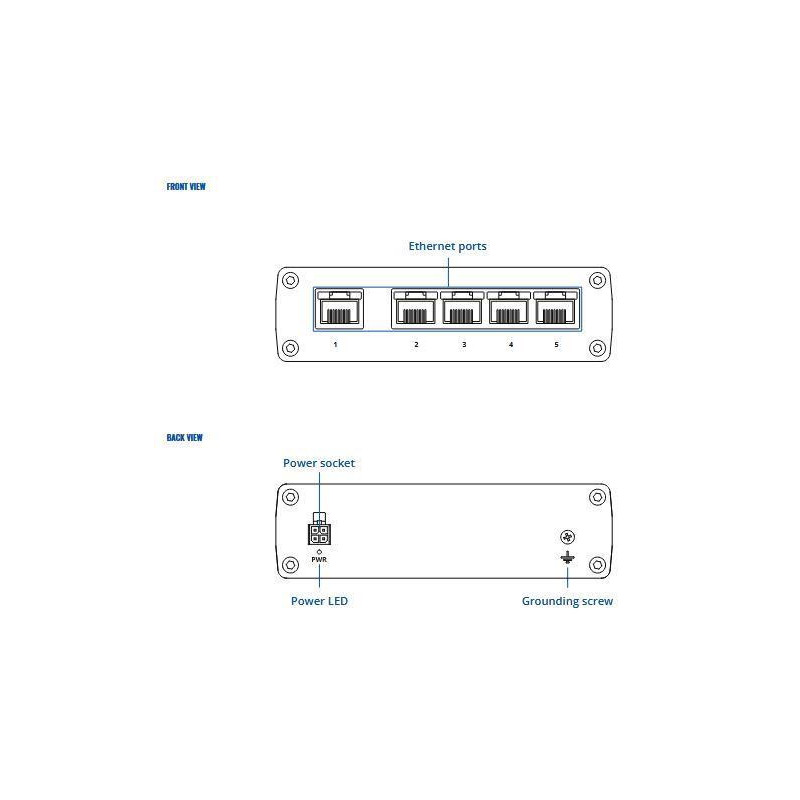

  • It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution

  • It offers a wide range of supported power supply voltages (9-30 V)

  • Ideal for professional high bandwidth applications to provide reliable data connection



Summary Teltonika TSW110. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. DC input voltage: 30 V. Power over Ethernet (PoE)
Vendor Homepage https://teltonika-networks.com/product/tsw110/
Unit Box Height 0.07
Unit Box Length 0.175
Unit Box Width 0.15
Switch layer L2
Switch type Unmanaged
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
10G support No
Auto MDI/MDI-X Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Networking standards IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
Jumbo frames 9216
Jumbo frames support Yes
MAC address table 2000 entries
Packet buffer memory 0.128 MB
Switching capacity 10 Gbit/s
DIN rail mounting Yes
Housing material Aluminium
International Protection (IP) code IP30
LED indicators Yes
Product colour Blue/Grey
AC input voltage 100 - 240 V
DC input voltage 30 V
Power consumption (typical) 1.8 W
Power supply included Yes
Power over Ethernet (PoE) Yes
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) -40 - 75 °C
Depth 85 mm
Height 30 mm
Weight 227 g
Width 100 mm
Quick start guide Yes
Package type Box
Model TSW110
Model name TSW110000000
Units per Shipping Box 1
Unit Calculated Volume 0.001837 cubm
Unit Calculated Weight 0.393 kg
