TP-LINK TPLINK IP-Kamera IPKamera VIGI C230I Mini(2 8mm) TP-Link8mm) TP-Link 8mm)

1/2.8" Progressive Scan CMOS
Minimal color lighting: 0.1 lux; 0 lux s IR
Day/night mechanism: IR Cut Filter
Day/night switch: Prenčinci deň/noc/automatický/plánovaný
Objective: 2.8 mm
Clone:
F1,6
Lens mount: M12
Angle of view:
106.9°/56.9°/127.9° (H/W/D)
IR working distance: 30 m
Digital noise reduction: 3D DNR
WDR: DWDR
Stupeň resistance to vandalism: IK08
VIDEO
Max. resolution: 2304x1296
Snímková frequency and resolution - main current
Frame rate
1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
Resolutions:
2304x1296, 2048x1280, 1920x1080, 1280x720_
Image frequency and resolution - partial stream
Frame rate
1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
Resolutions:
704x576, 640x480, 352x288, 320x240_
Video compression
Hlavný stream: H.265+/H.265/H.264+/H.264
Čiastkový stream: H.265/H.264
Video streaming
3 hlavné streamy
3 oštálové datové streamy
Image settings: Mirroring, Jas, Kontrast, Sýtosť, Ostrosť, Expozícia, WDR, Vyváženie bielej adjustable klientským softwarem, Otáchanie (90°/270°)
Image enhancements: BLC/3D DNR/HLC/SmartIR
Video bit rate: od 64 Kb/s do 4 Mb/s
NETWORK
Security: ochrana heslom, encrypted HTTPS, filter IP addresses, overovanie Digestom
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API: ONVIF
Current live view: 3 hlavné trúky a 3 částové trúky
Customer: Application VIGI, security manager VIGI, VIGI NVR, Web
INTERFACE
Network interface: 1 self-adaptive ethernetový port RJ45 10/100M
Press: Reset
Video output: -
Built-in memory: Built-in slot for a memory card, MicroSD card support, up to 256 GB
Built-in microphone: Áno
Built-in speaker: Áno
GENERAL

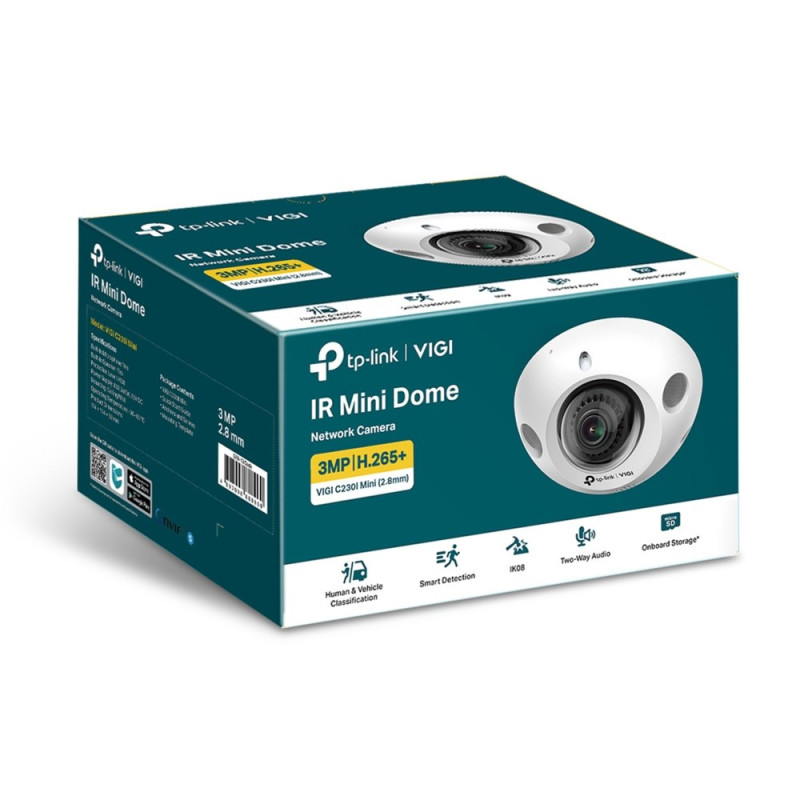

Package contents:
Network camera VIGI
Detailed instructions for use
Mounting accessories
Mounting template
Operating temperature: od -30 do 60 °C
Dimensions (H × W × D): 114 × 114 × 58 mm
Material: Plast
General features: Two currents, mirror, masky na ochranu súcromia, obnenenie hesla e-mailom, odpočúvanie HTTP
Power supply:
12 V DC ± 5 %, 5.5 mm koaxiálna napájacia zástrčka
PoE (802.3af/at, tried 0)
Spotreba energy:
12 V DC: max. 7.5 W
PoE: Tried 0
Certification: CE/VCCI/BSMI/KC/ONVIF
SÚBOR INTELLIGENTNÝCH FUNCCIÍ
Smart events: Detection of persons in vehicles, detection of violations, detection of trespassing, detection of persons, detection of vehicles, detection of entry to areas, detection of exits from areas, detection of abandoned objects, detection of removal of objects.
Basic event: Motion detection, Camera violation detection, Warning (Illegal registration)
Notifications of the launch method: ONVIF, HTTPS
Area of interest: 1 oblasť
Further information can be found on the manufacturer's website: https://www.tp-link.com/au/business-networking/vigi-network-camera/vigi-c230i-mini/
