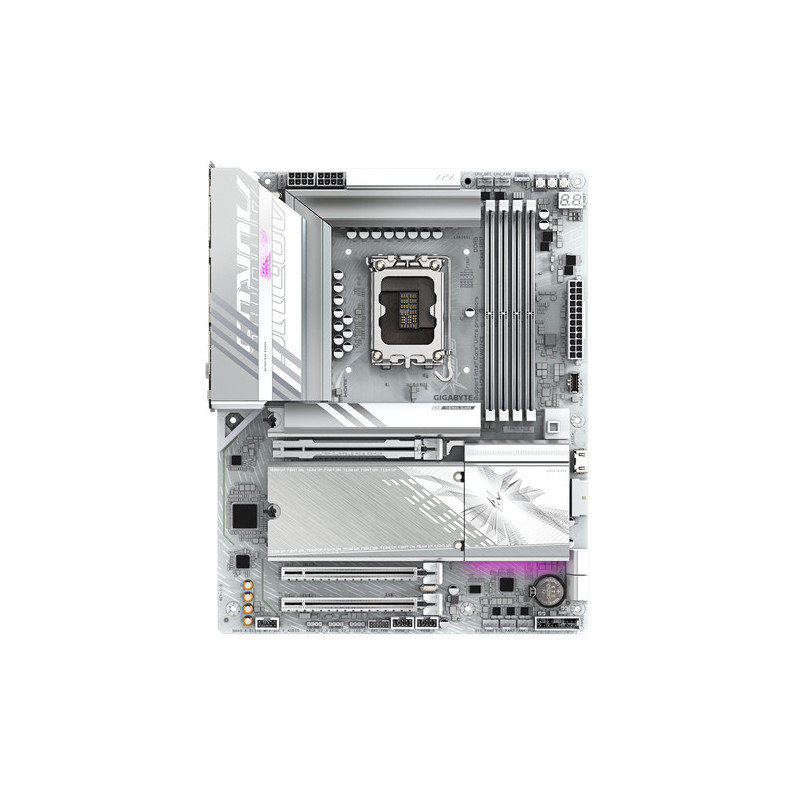

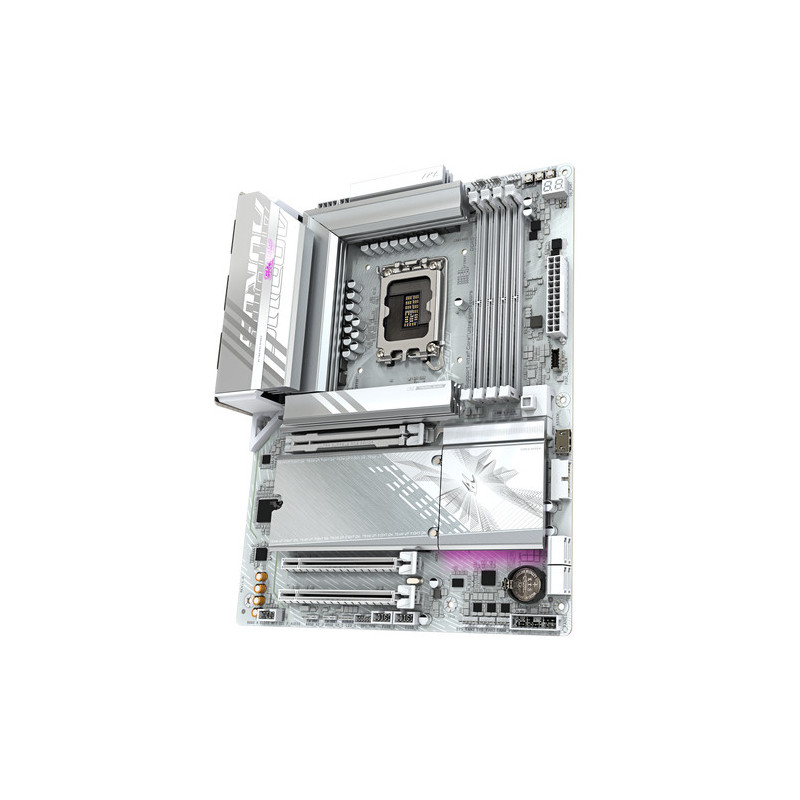

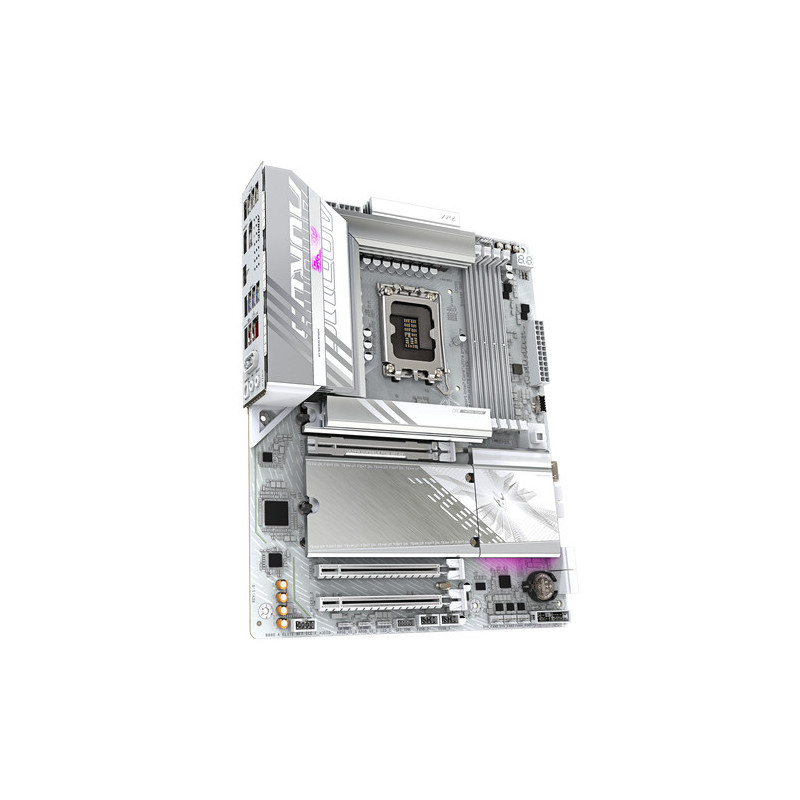

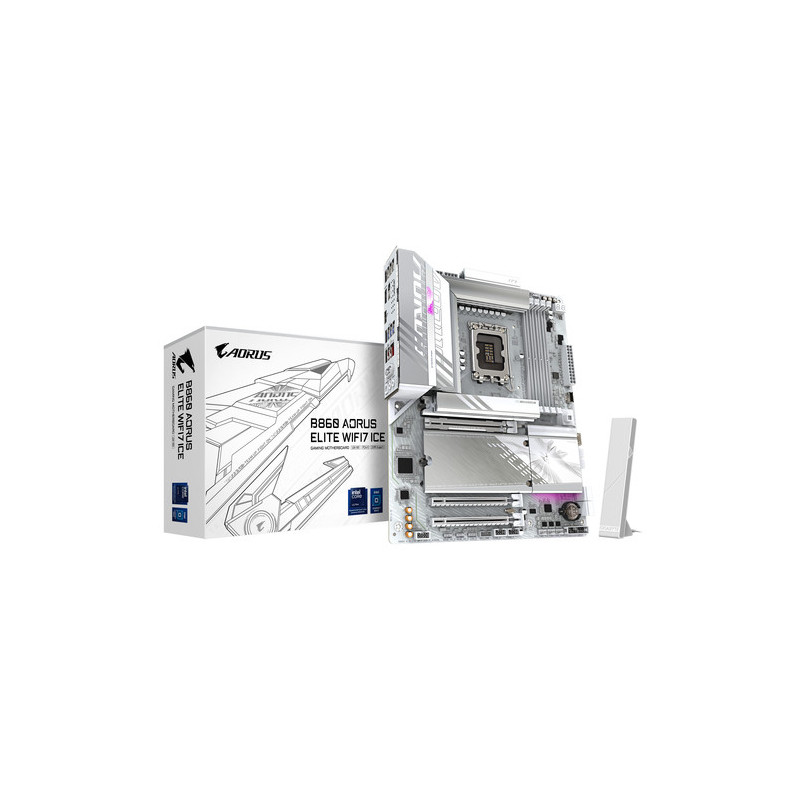

GIGABYTE B860 AORUS ELITE WIFI7 ICE Motherboard - Intel Core Ultra Series CPUs, 14+1+2+1 Phases VRM, up to 9200MHz DDR5,
Product reference:
3-4719331866846
GIGABYTE B860 AORUS ELITE WIFI7 ICE Motherboard - Intel Core Ultra Series CPUs, 14+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 7, USB 4
GIGABYTE B860 AORUS ELITE WIFI7 ICE Motherboard - Intel Core Ultra Series CPUs, 14+1+2+1 Phases VRM, up to 9200MHz DDR5,
Product reference:
3-4719331866846
GIGABYTE B860 AORUS ELITE WIFI7 ICE Motherboard - Intel Core Ultra Series CPUs, 14+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 7, USB 4
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| Technical details | |
|---|---|
| Warranty period | 3 years |
| Processor | |
| Compatible processor series | Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Graphics | |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| HDCP | Yes |
| Features | |
| Motherboard form factor | ATX |
| Windows operating systems supported | Windows 11 x64 |
| Cooling type | Passive |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Audio output channels | 7.1 channels |
| Product colour | White |
| Audio chip | Realtek ALC897 |
| PC health monitoring | Temperature, Fan, Water cooling, Voltage |
| Motherboard chipset | Intel B860 |
| Memory | |
| Memory slot type | DIMMs |
| Maximum internal memory per slot | 64GB |
| ECC compatibility | ECC Non-ECC |
| Memory channels | Dual channel |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 9200MHz |
| Supported memory clock speeds | 6400MHz, 5600, 9200MHz |
| Maximum internal memory | 256GB |
| Unbuffered memory | Yes |
| Weight dimensions | |
| Width | 305mm |
| Height | 35mm |
| Depth | 244 mm |
| Network | |
| Wi-Fi standard | Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 4 (802.11n), 802.11g |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| WLAN controller model | Realtek RTL8922AE |
| Bluetooth version | 5.4 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| LAN controller | Realtek RTL8125 |
| Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of CPU fan connectors | 2 |
| Number of RGB LED pin headers | 4 |
| RGB LED pin header | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| CPU fan connector | Yes |
| TPM connector | Yes |
| Front panel connector | Yes |
| Number of water pump connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| USB 2.0 connectors | 2 |
| BIOS | |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| BIOS type | UEFI AMI |
| Packaging data | |
| Package width | 335 mm |
| Package height | 80mm |
| Package weight | 2.49 kg |
| Package depth | 270mm |
| Packaging content | |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Antenna included | Yes |
| Batteries included | Yes |
| Screws included | Yes |
| Storage controllers | |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 5, 1, 10 |
| Number of storage drives supported | 7 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD SSD |

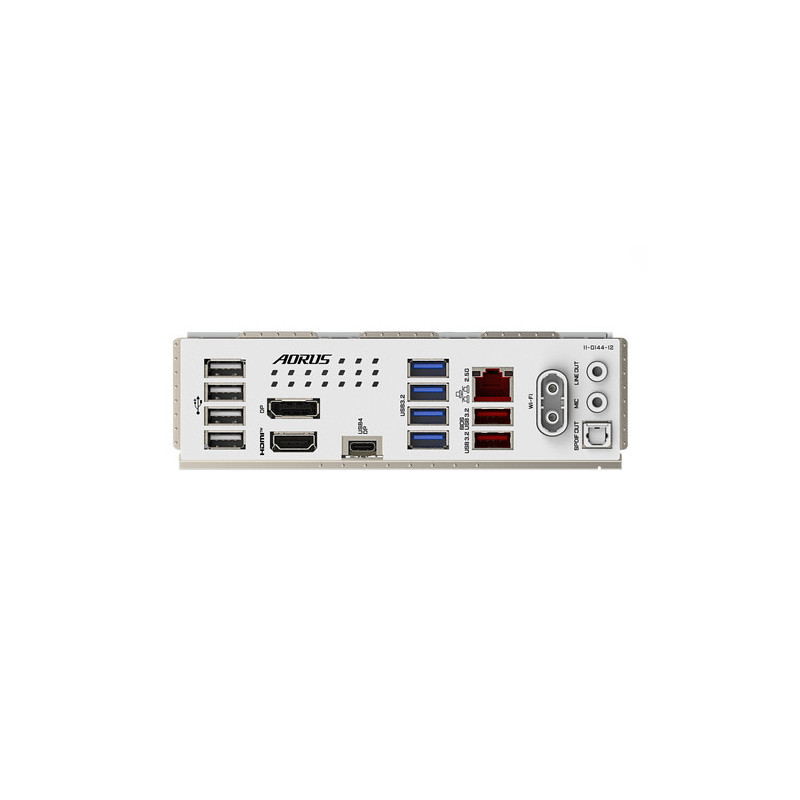

| Rear panel I/O port | |
| DisplayPort version | 2.1 |
| WiFi-AP antenna jack | 2 |
| HDMI port quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A port quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) port | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| DisplayPort quantity | 1 |
| Digital audio optical out | 1 |
| HDMI version | 2.1 |
| USB4 Gen 2x2 port quantity | 1 |
| S/PDIF out port | Yes |
| Expansion slot | |
| Number of M.2 (M) slots | 3 |
| 1st M.2 largest key size | 25110 |
| PCI Express x16 (Gen 4.x) slot | 2 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| PCI Express x16 (Gen 5.x) slot | 1 |
| Battery | |
| Battery weight | 3 years |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Lithium weight per battery | 0.07 g |
| Other features | |
| Weight | 2.21 kg |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Safety warning | |
| Warnings | When disposing of the product, follow local regulations for the recycling of electronics., Do not open or modify the motherboard to prevent damage. |
