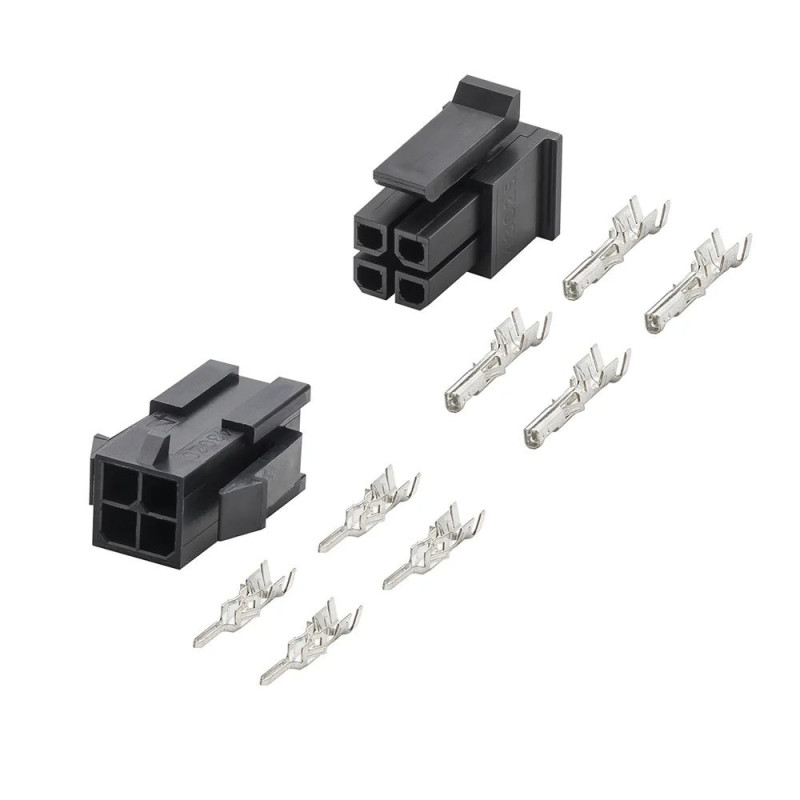

Set of MOLEX male + female connectors with contacts
Product reference:
13-77638
Set of MOLEX male + female connectors with contacts
Set of MOLEX male + female connectors with contacts
Product reference:
13-77638
Set of MOLEX male + female connectors with contacts
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Europe in
4 - 14
business days
Not available
Set of MOLEX male + female connectors with contacts

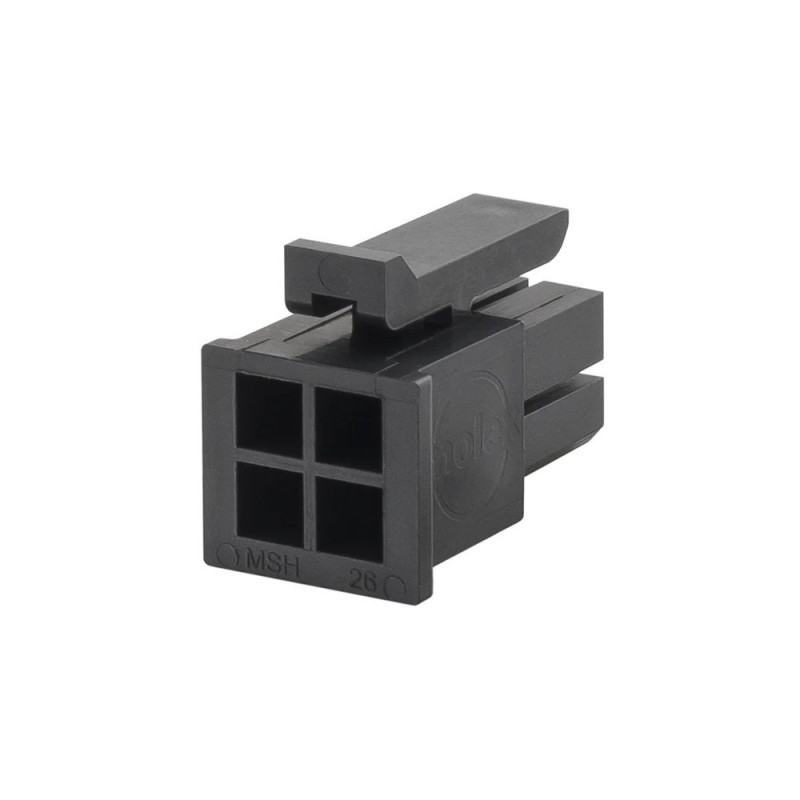

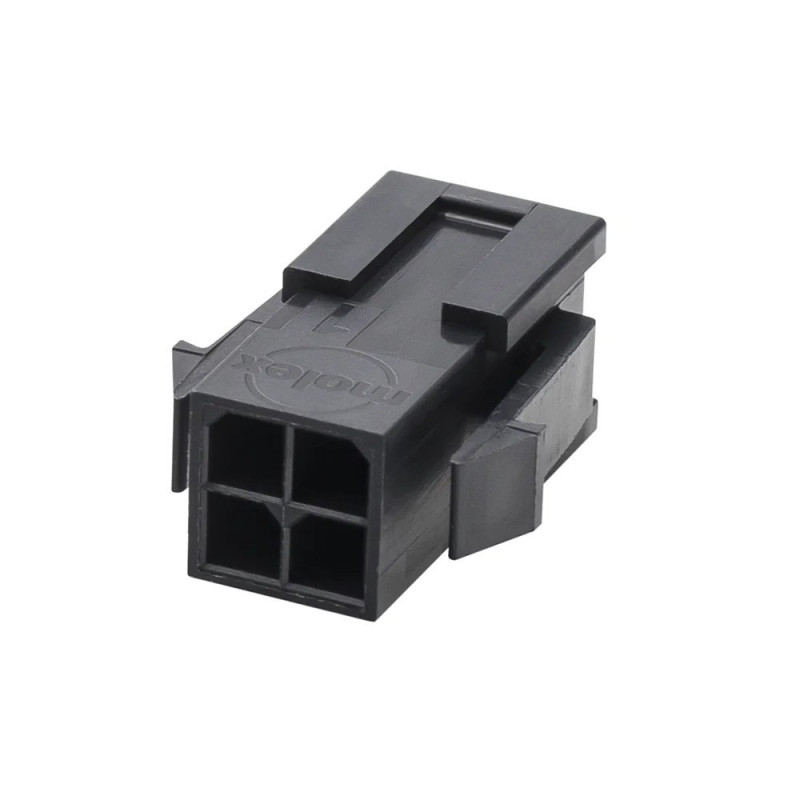

Connector: wire-to-wire; plug; male with contacts
- Producer: MOLEX
- Type: wire-to-wire connectors
- Connector: plug
- Connector type: male; PIN: 4; Micro-Fit 3.0; 3mm
- Contact type: male; Micro-Fit 3.0; tinned; 0.25÷0.5mm2; 24AWG÷20AWG
- Number of pins: 4
- Manufacturer series: Micro-Fit 3.0
- Mechanical assembly: for panel, for cable, latch
- Contact pitch: 3mm
- Connector pinout: 2x2
- Maximum current: 5A
- Connector version: with contacts
- Locking system: latch
- Connector properties: panel mounting brackets

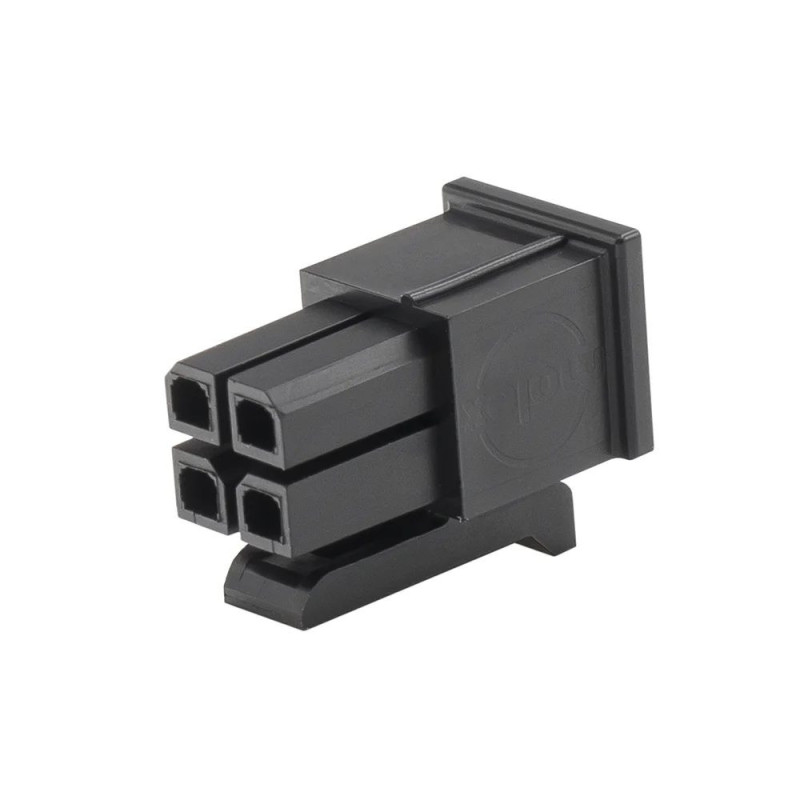

Connector: wire-to-wire; plug; female with contacts
- Producer: MOLEX
- Connector type: wire-board
- Connector: plug
- Connector type: female; PIN: 4; Micro-Fit 3.0; 3mm
- Contact type: female; Micro-Fit 3.0; tinned; 0.205÷0.519mm2
- Number of pins: 4
- Manufacturer series: Micro-Fit 3.0
- Mechanical assembly: on the cable
- Contact pitch: 3mm
- Connector pinout: 2x2
- Flammability class: UL94V-0
- Connector version: with contacts
- Locking system: with latch
- Operating temperature: -40...105°C
- Body material: polyamide
