TP-LINK VIGI 4 Channel PoE+ Network Video Recorder
Product reference:
18-VIGI-NVR1104H-4P
TP-LINK VIGI 4 Channel PoE+ Network Video Recorder
TP-LINK VIGI 4 Channel PoE+ Network Video Recorder
Product reference:
18-VIGI-NVR1104H-4P
TP-LINK VIGI 4 Channel PoE+ Network Video Recorder
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days

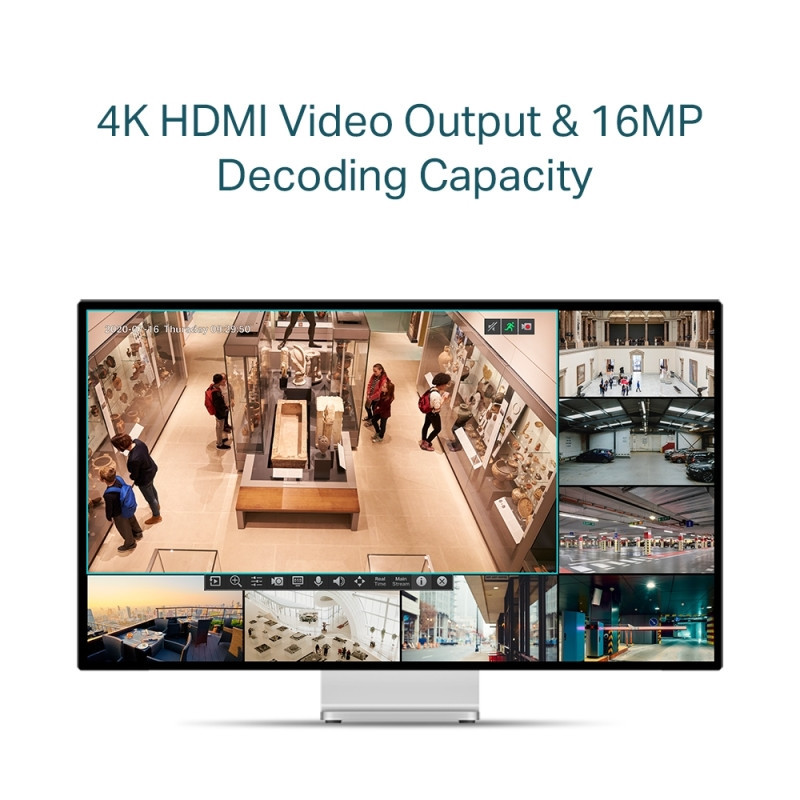

- 4K HDMI Video Output 16MP Decoding Capacity:Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.

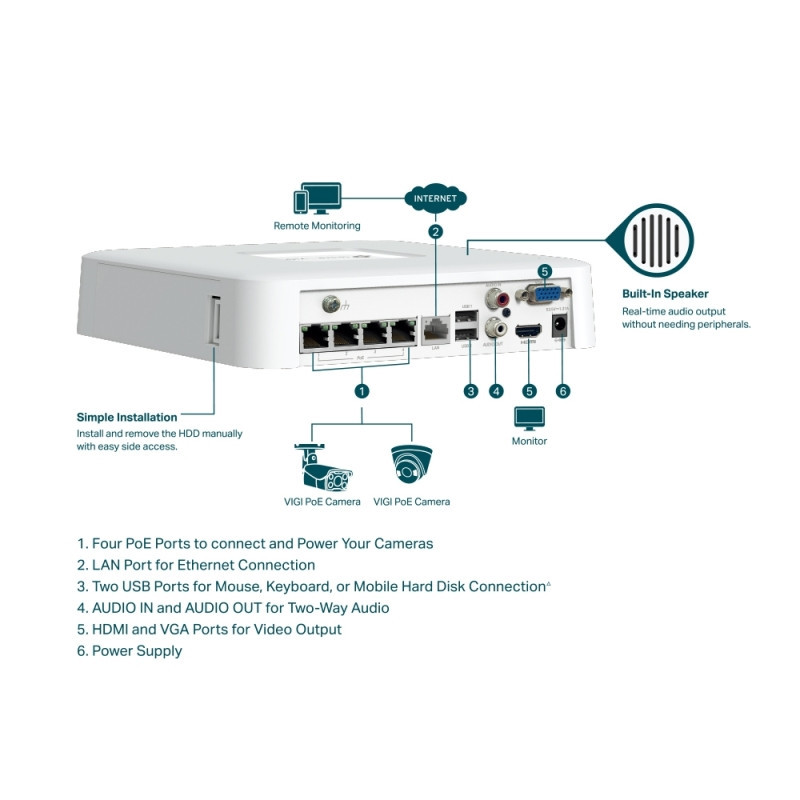

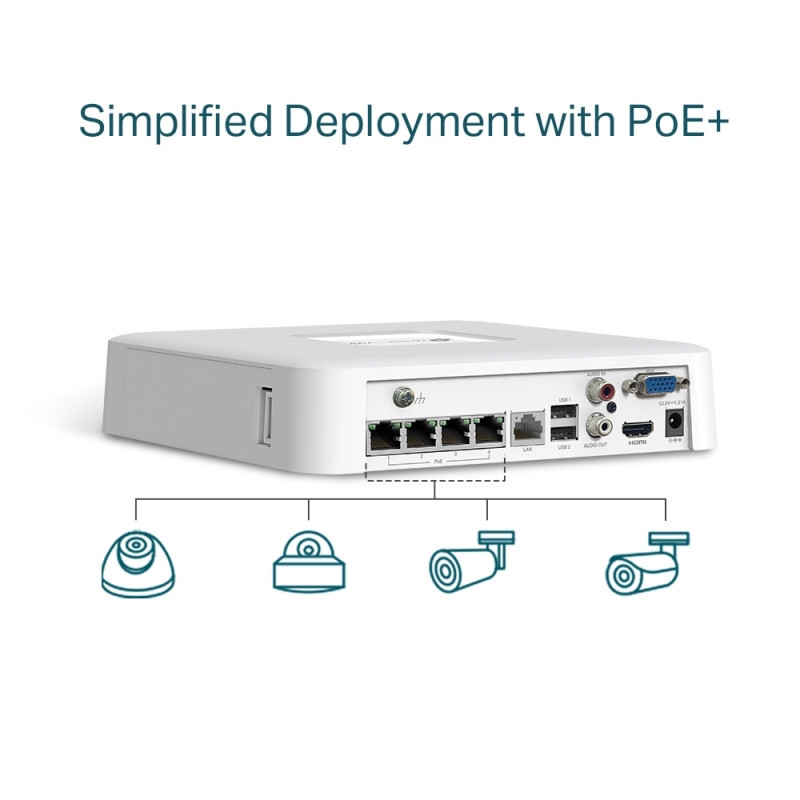

- Simplified Deployment with PoE+:Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
- Simple HDD Installation†:Install and remove the HDD manually with easy side access.
- 4-Channel Simultaneous Playback :Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+:Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensures Compatibility :Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Plug Play:Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
- 24/7 Continuous Recording:Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
- Remote Monitoring:The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
- Built-In Speaker:Enjoy real-time audio output without needing peripherals for greater convenience.
- Flexible Installation:Choose the suitable installation method by simply mounting your NVR on the wall, or placing it on or under a desk.
| NETWORK | |
|---|---|
| Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| GENERAL | |
|---|---|
| Package Contents | VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide |
| Operating Temperature | -10-55°C |
| Dimensions( W X D X H ) | 200.3 × 200.3 × 43 mm |
| External Power Supply | 53.5V DC/1.31A |
| Power Consumption | 4.82 W (without disk) |
| VIDEO/IMAGE | |
|---|---|
| Video Input | 4-Channel IP Video Input, up to 8MP Resolution |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
| DECODING | |
|---|---|
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Live View/Playback Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4 Channels |
| Capability | 2-ch @ 8MP, 4-ch @ 4MP |
| HARD DISK | |
|---|---|
| SATA | 1 SATA Interface |
| Capacity | Up to 10 TB |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB 2.0 |
