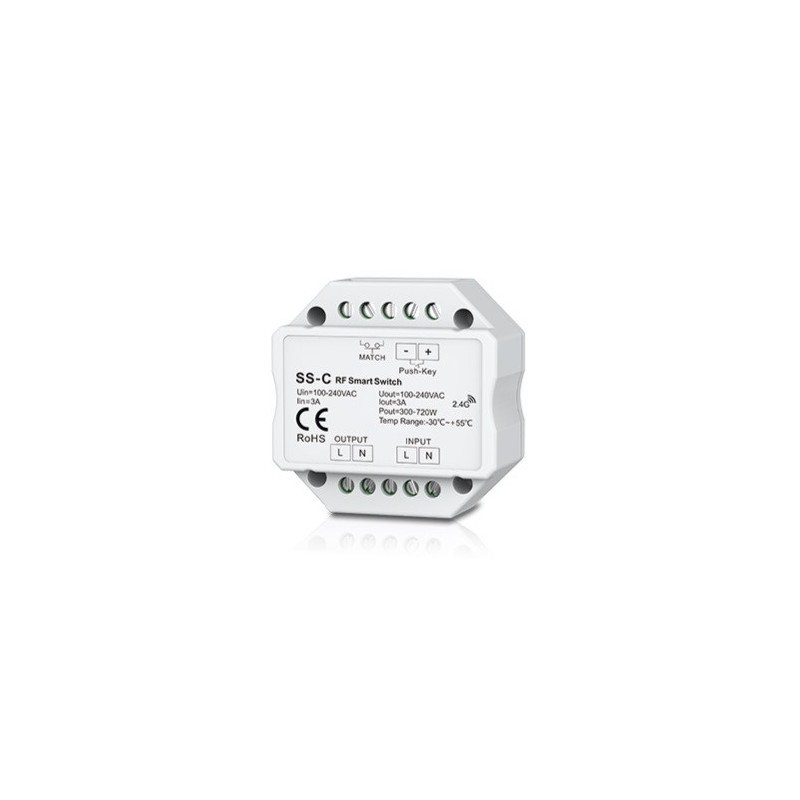

SS-C single channel 230V controller without dimming function + Push Key

SS-C controller, 100-240V, 6A, 1-channel, Push Key, without dimming function
Smart RF switch, without dimming function, 100-240V AC 1x 6A, single color LED for strips, incandescent and halogen lamps, 1 channel, Push-Key.
Features:

• Supports lighting systems: single color.


• Allows you to turn on/off the lighting. Compatible with single-color LED strips/bulbs, incandescent lamps, halogen lamps.


• Does not support dimming function.


• Maximum load 6A.


• Has a Push-Key connector: a conventional bell-type (rebound) switch can be connected to the controller.


• The operating frequency is 2.4GHz, which ensures a stable signal at a distance of up to 30m, it is less disturbed by obstacles such as walls, partitions, etc.


• Has a matching button (MATCH) for connecting remote controls.


• Minimal design. Mounts to the wall under the switch, in a standard electrical installation box.


• The controller is universal and can work with various RF remote controls.


• Protection against overload, overheating and short circuit.


• Certificates: CE (EMC/LVD), RoHS.

Technical data:

• Product model: SS-C.


• Compatibility: Skydance RU4, RU8, PF1-2.


• Number of channels: 1.


• Controlled lighting systems: single color.


• Operating frequency: RF 2.4GHz.


• Supply voltage: 100-240V AC.


• Output voltage: 100-240V AC.


• Output current: 6A.


• Power: 600W-1440W.


• Operating distance: up to 30m.


• Safety class: IP20 (not waterproof).


• Suitable wire cross-sectional area: 0.5-2.0 mm².


• Certificates: CE, EMC, LVD, RED, RoHS.


• Operating temperature: -30~+55°C.


• Dimensions: 52 x 52 x 26 mm.


• Color: white.


• Weight: 53g.
