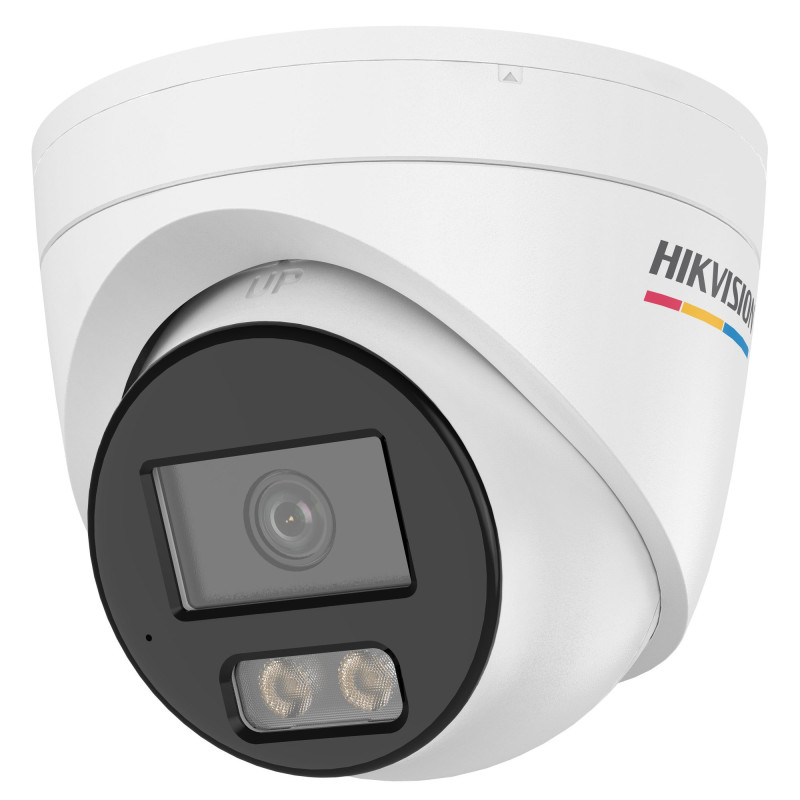

Hikvision dome DS-2CD1347G3H-LIU F2.8 (white, 4 MP, ColorVu, 30 m. IR, 30 m. LED, Hybrid light, PoE)

Product reference: 26-6936422149215

HikAI-ISP technology ensures excellent noise reduction
Ultra-bright color images 24/7 with ColorVu 3.0 technology
Motion Detection 3.0 ensures more accurate recognition of people and vehicles
Integrated two-way audio and beacon signaling for real-time protection (/SL/SRB)
Supports internal memory up to 512 GB (SD card, optional) (-F)
Smart Hybrid Light integrates IR and white light, 3 additional lighting modes
Water and dust resistant (IP67)

Hikvision dome DS-2CD1347G3H-LIU F2.8 (white, 4 MP, ColorVu, 30 m. IR, 30 m. LED, Hybrid light, PoE)

Product reference: 26-6936422149215

HikAI-ISP technology ensures excellent noise reduction
Ultra-bright color images 24/7 with ColorVu 3.0 technology
Motion Detection 3.0 ensures more accurate recognition of people and vehicles
Integrated two-way audio and beacon signaling for real-time protection (/SL/SRB)
Supports internal memory up to 512 GB (SD card, optional) (-F)
Smart Hybrid Light integrates IR and white light, 3 additional lighting modes
Water and dust resistant (IP67)

You have 3 products in compare list, please remove someone and try again

Add to compare

106,72 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

Approvals
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Environmental protection CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU
Protection IP67: IEC 60529-2013
Security CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017

Sound
Audio bit rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps (MP3)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio sampling frequency 8 kHz/16 kHz
Audio type Mono sound
Removing extraneous sounds Yes

DOROUS
DOROUS 2.8 mm, D: 61 m, O: 24 m, R: 12 m, I: 6 m4 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m

Features
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Interface Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture

General information
Dimensions Ø130.1 mm × 103.1 mm (Ø5.1" × 4.1")
Flashing Light -SL: White Light-SRB: Red and Blue Light-LIU(F)：NA
Main functions Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding
Language English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
Material Cover: PLASTIC, main body: METAL
Package size 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Power supply LIU(F)/SL(RB)：12 VDC ± 25%, 0.64 A, max. 7.68 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3,max. 9.21 W；LIU(F)：12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3,max. 7.5W；
Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Weight -LIU/-LIUF: Approx. 505 g (1.1 lb.), -SL/-SRB: Approx. 580 g (1.3 lb.)
Weight with packaging -LIU/-LIUF: Approx. 755 g (1.7 lb.), -SL/-SRB: Approx. 800 g (1.8 lb.)

Day/night switch Day, Night, Auto, Schedule
Photo beautification BLC,HLC,3D DNA
Image settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy mask 4 programmable polygon privacy masks
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 120dB

Interface
Built-in microphone Yes,1 built-in microphone
Built-in speaker LIU(F)/SL(RB)：1 built-in speaker, Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 98 dB；LIU(F)：NA；
Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Internal memory LIUF、LIUF/SL(RB)：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB；LIU、LIU/SL(RB)：NA；

Lens
Aperture F1.0
Depth of field 2.8 mm: 2.5 m to ∞4 mm: 2.8 m to ∞
Focal Length FOV 2.8 mm, horizontal FOV 104°, vertical FOV 54.4°, diagonal FOV 126.7°4 mm, horizontal FOV 89.3°, vertical FOV 48.2°, diagonal FOV 106.5°
Iris type Fixed
Lens mount M16
Lens type Fixed focal lens, 2.8 and 4 mm optional

Network
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Customer iVMS-4200,Hik-Connect
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
Safety Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Live video viewing Up to 6 channels
User/port Up to 32 users3 user levels: administrator, operator, and user
Browser Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+

Bit rate control CBR,VBR
H.264 type Baseline Profile, Main Profile, High Profile
H.265 type Main Profile
Main stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Region of Interest (ROI) 1 fixed region for main stream
Scalable Video Coding (SVC) H.264 and H.265 encoding
Secondary flow 50 Hz: 25 fps (768 × 432, 640 × 360) 60 Hz: 24 fps (768 × 432, 640 × 360)
Video bit rate 32 Kbps to 16 Mbps
Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG
