Renault Master / Nissan Interstar reversing camera

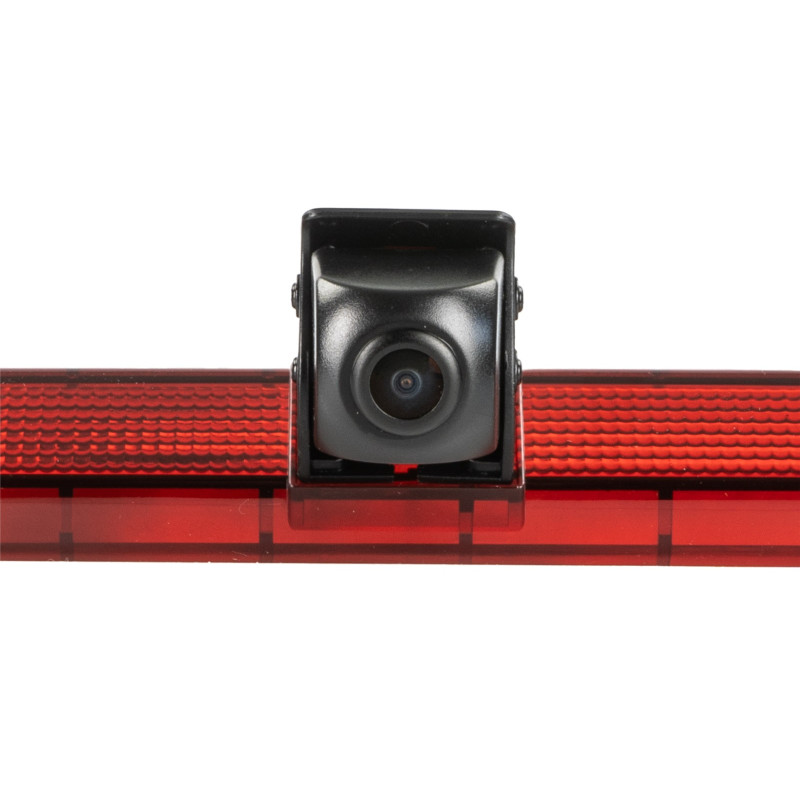

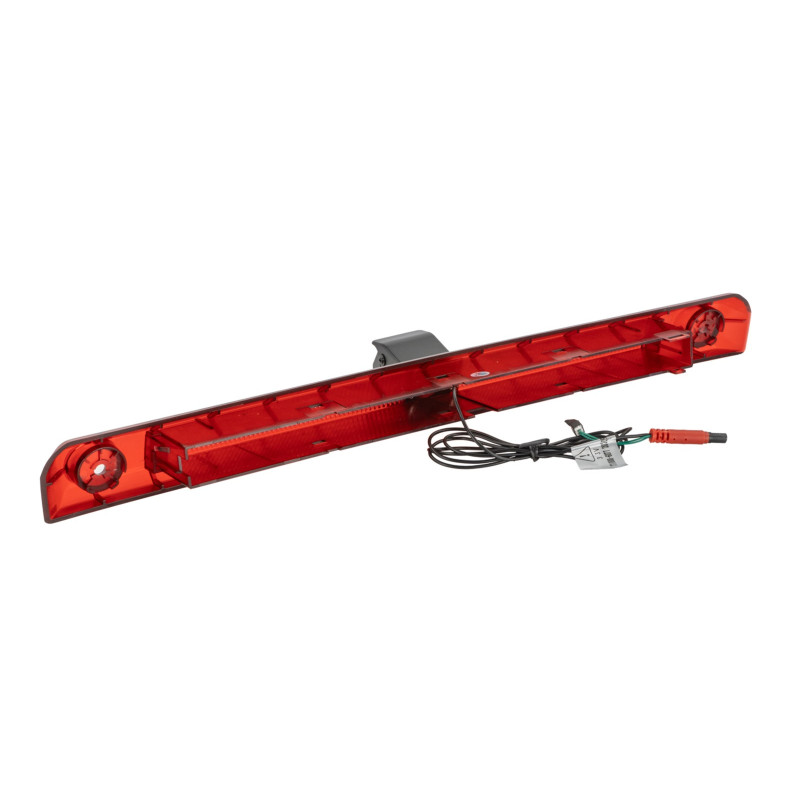

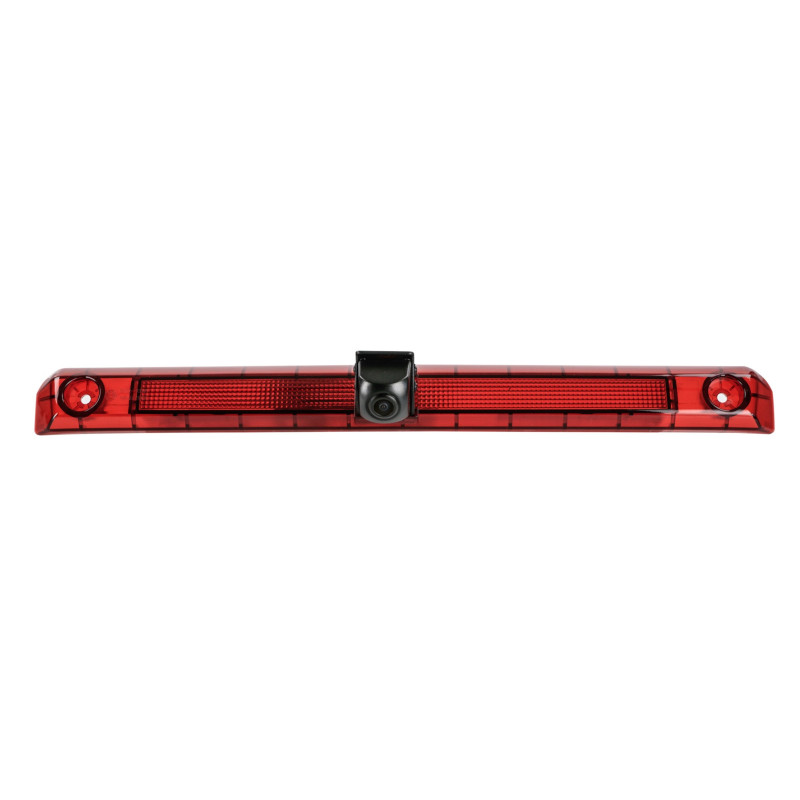

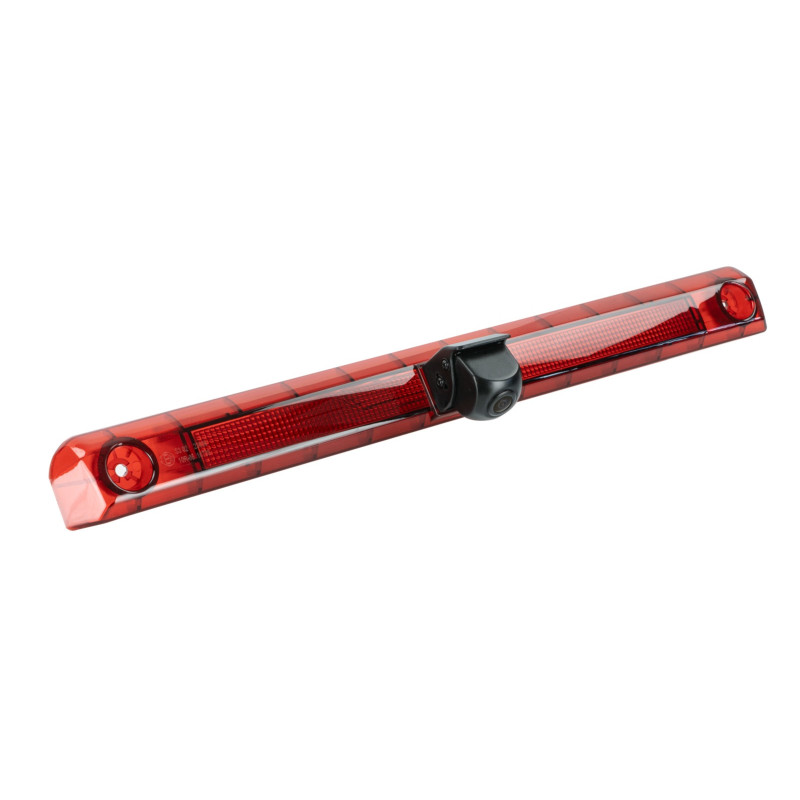

Nissan / Renault reversing camera - integrated in the third brake light, adjustable viewing angle

Dedicatedreversing camerafor the latest modelsNissan Interstar / Interstar-eandRenault Master / Master E-Tech, mounted on siteoriginal third brake light diffuser.
Equipped withleading lines(can be turned on/off) andadjustable viewing angle, ensures safe and precise parking even in difficult lighting conditions.

✅ Application in vehicles:

• Nissan Interstar (NDA/NDB/NDC)- 10/2024 → 2025

• Nissan Interstar-e (NDA / NDB / NDC)- 11/2024 → 2025

• Renault Master (RDA)- 09/2024 → 2025

• Renault Master E-Tech (RDA)- 10/2024 → 2025

⚙ Features and technical parameters:

• Execution:plastic

• Color:black / red

• Image sensor:1/3" CMOS

• TV system:NTSC

• Effective pixels:976 × 592

• Lens:12.6 mm

• Minimum lighting:0.1 Lux

• Resolution:600 TV lines

• Viewing angle:horizontal 115° / vertical 75° (+5° adjustment)

• Degree of protection:IP67 (water and dust resistance)

• Power supply:+12V / +24V DC (camera +3V DC - converter required)

• Power consumption:150 mA (night mode active)

• Operating temperature:-20°C to +70°C

• Storage temperature:-40°C to +80°C

• System connector:4-pin ACV (m) Ø5.2 mm

• Cable length at the camera:approx. 3.3 m

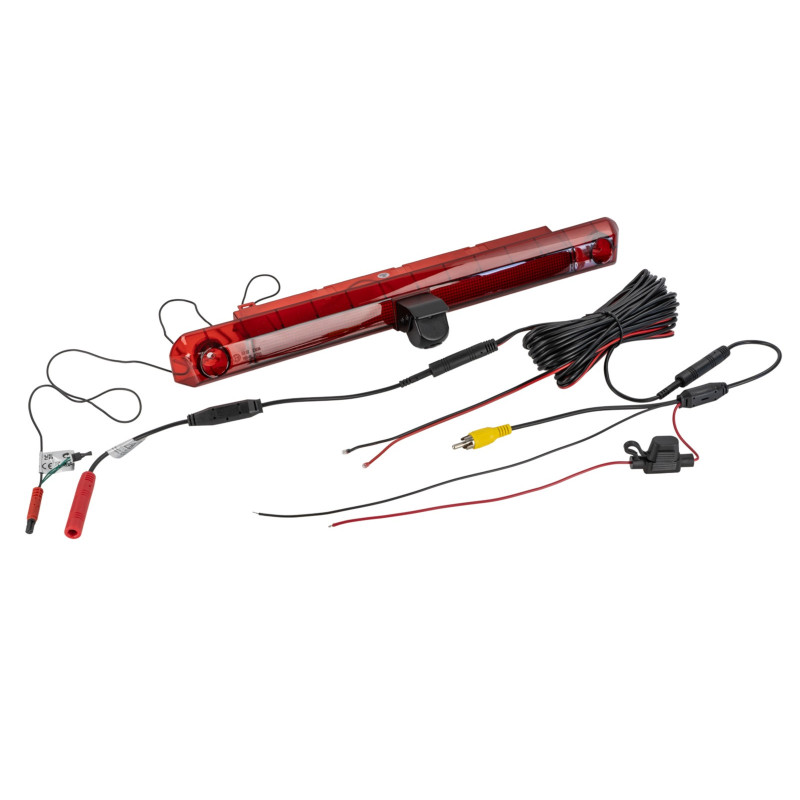

⚡ Connections and cables:

• Red:+12V (power supply - stable, fuse protected)

• Black:vehicle ground / GND

• RCA (m) yellow:video signal
