QuWireless QuMax for Teltonika RUT956 / RUT955

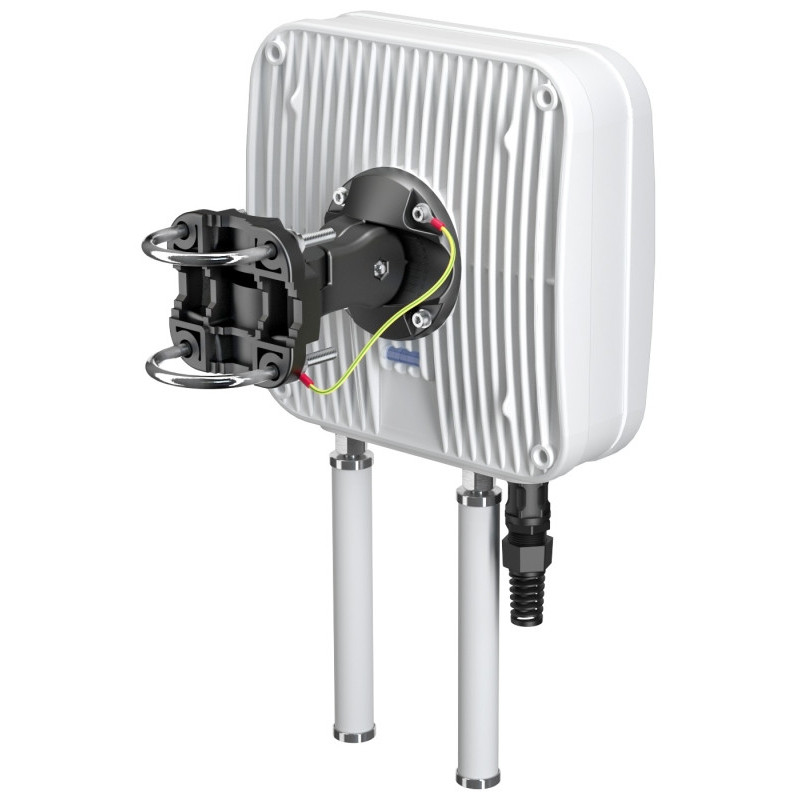

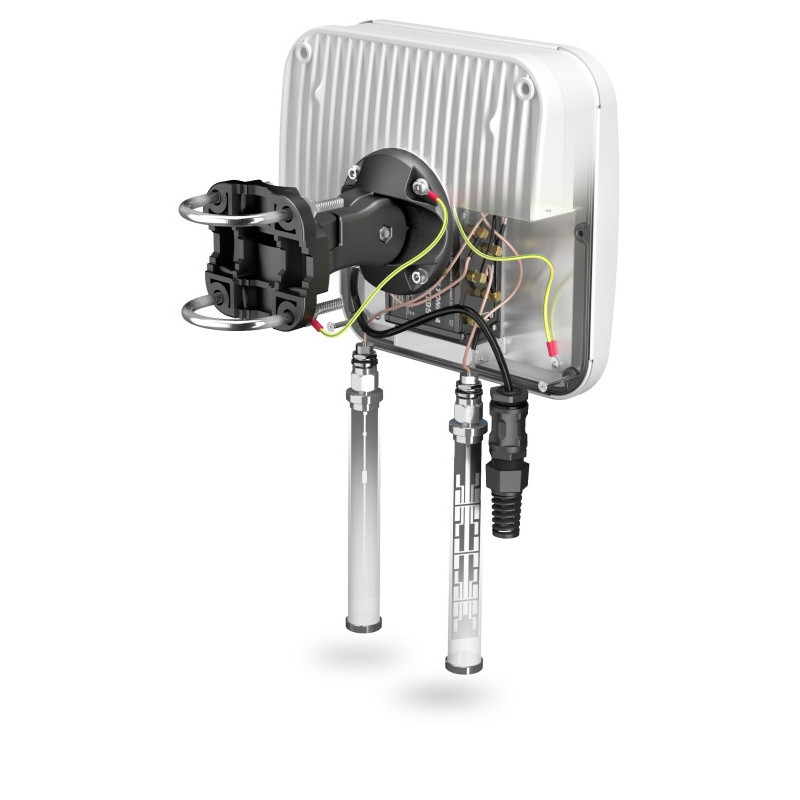

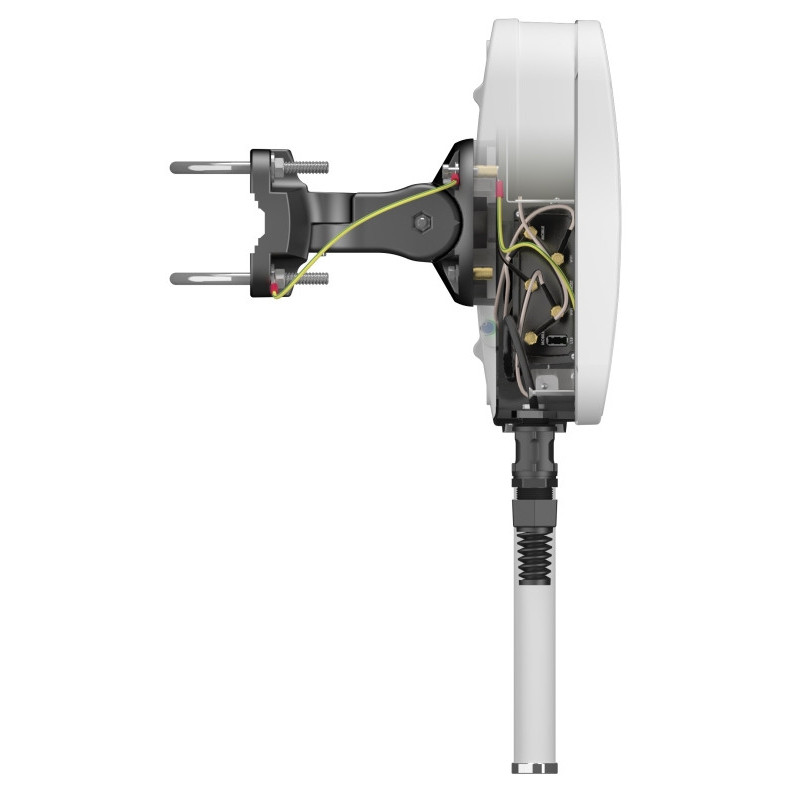

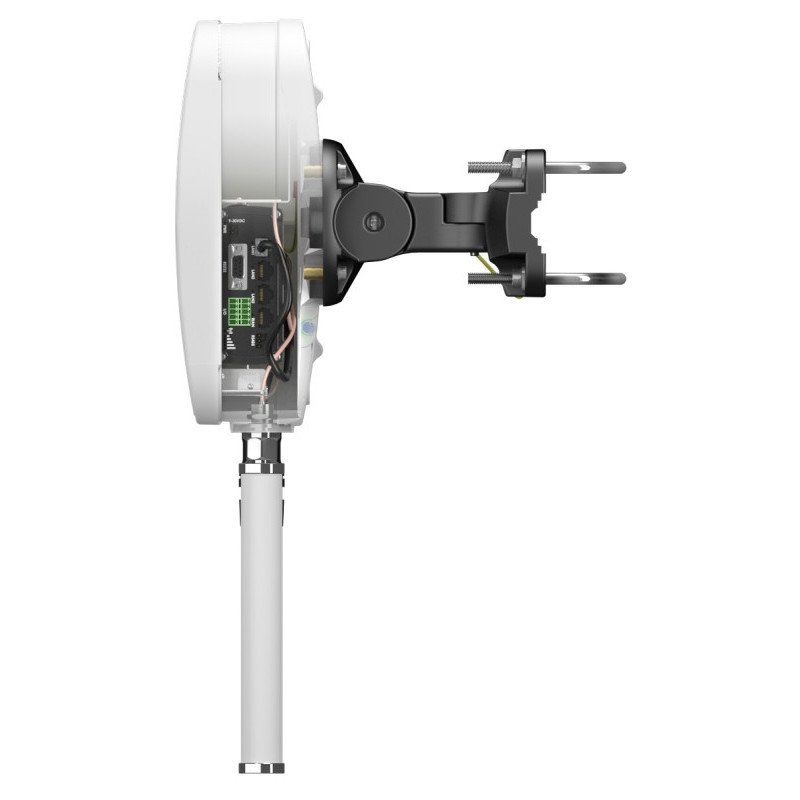

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have TeltonikaRUT955router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environments.It has also embedded GPS antenna and outdoor Wi-Fi omni antennas.

LTE Specifications:• Frequency: * 0.694-0.96 GHz; * 1.7 - 2.2 GHz; * 2.2 - 2.7 GHz; • Gain: * 4 dBi; * 5 dBi; * 6 dBi; • VSWR: * <1.50, max <2.00; * <1.30, max <1.60; * <1.30, max <1.60; • Beamwidth: * 90°/90° +/- 30°; * 90°/90° +/- 30°; * 90°/90° +/- 30°; • Polarization: Vertical; • Impedance: 50 Ω.

Wi-Fi Specifications:• Frequency: * 2.40-2.50 GHz; * 4.70 - 6.00 GHz; • Gain: * 6 dBi; * 7 dBi; • VSWR: * <1.70, max <2.00; * <1.70, max <2.00; • Beamwidth: * 360°/25° +/- 5°; * 360°/25° +/- 5°; • Polarization: Vertical; • Impedance: 50 Ω.

Mechanical Specification:• Materials: ABS, aluminum, PTFE, Fiberglass; • Ingress Protection: IP67; • Dimensions: 272 x 276 x 96 mm (10.71 x 10.87 x 3.78 inch); • Weight: 1.8 kg (3.97 lbs); • Operating Temperature: From -40°C to 75°C (From -40°F to 167°F).
