QuWireless QuMax for Teltonika RUT360 / RUT361

Product reference: 18-QUMAX_RUT360

QuWireless QuMax for Teltonika RUT360/RUT361

You have 3 products in compare list, please remove someone and try again

Add to favorites products
Added to favorites products
Removed to favorites product

Add to compare

11050 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 3
business days

Ask about product

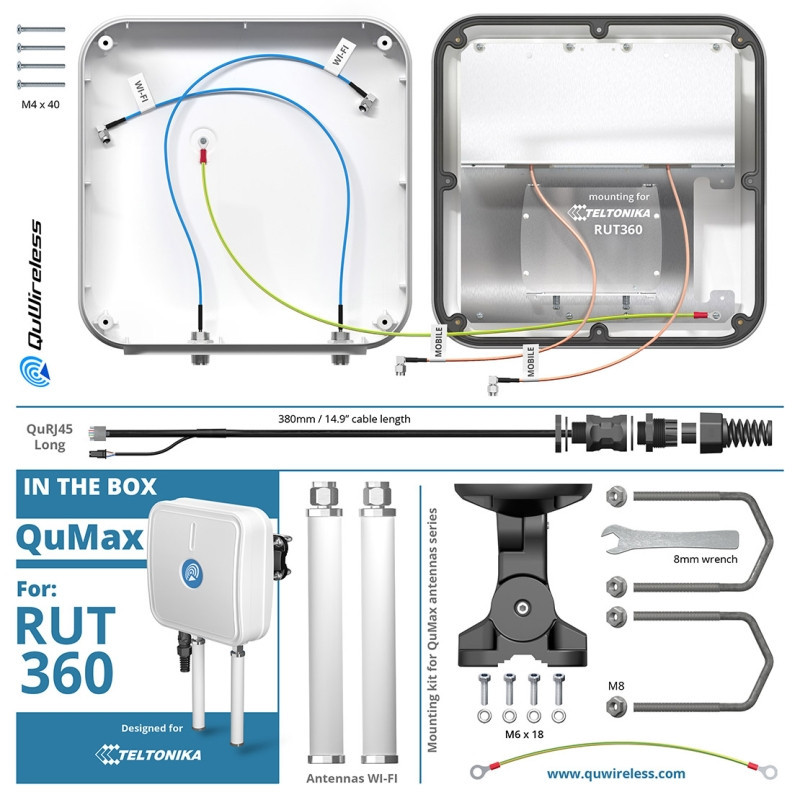

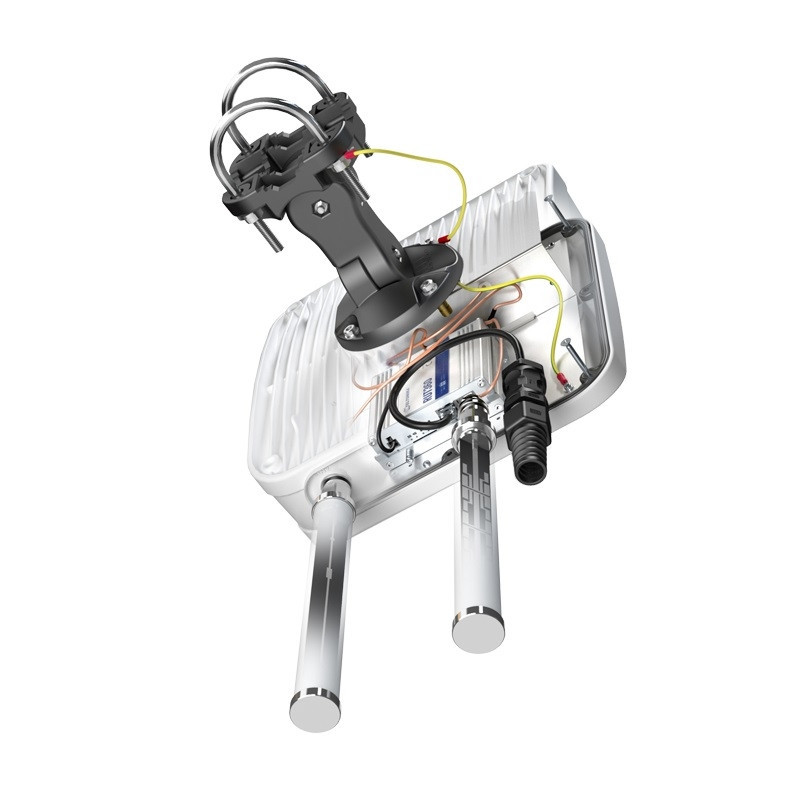

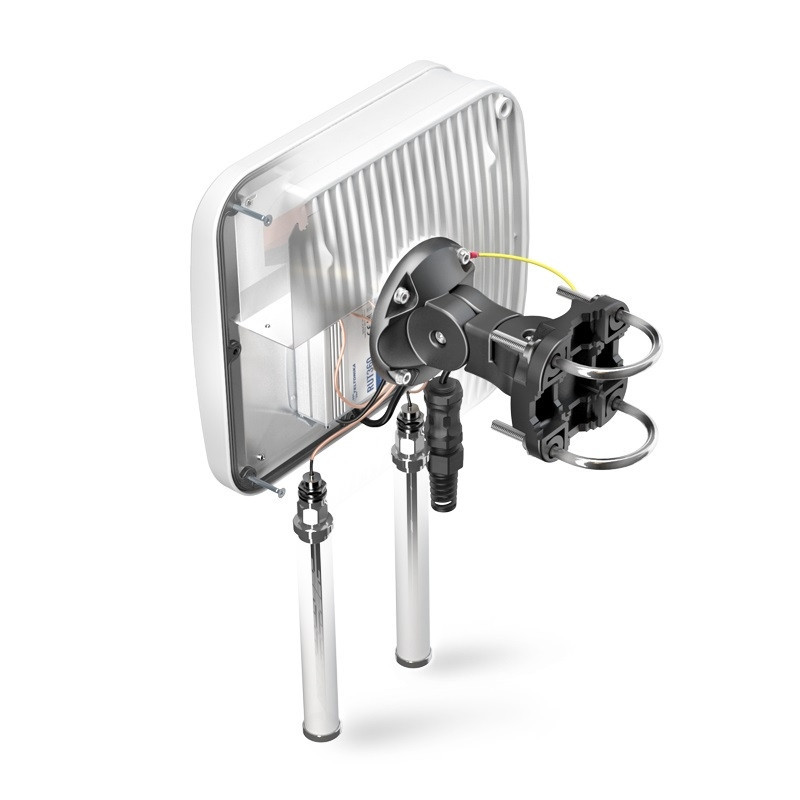

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have TeltonikaRUT360router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environments.It has also embedded outdoor Wi-Fi omni antennas.

LTE ANTENNA SPECIFICATION
Frequency	0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
Gain	0.694 - 0.96 GHz : 4 dBi 1.7 - 2.2 GHz : 5 dBi 2.2 - 2.7 GHz : 6 dBi
Front-to-Back	> 8dB
VSWR	<1.30, max <1.80
Beamwidth	90°/90° ±30°
Polarization	Vertical
Impedance	50 Ω

WI-FI ANTENNA SPECIFICATION
Frequency	2.40 - 2.50 GHz
Gain	6 dBi
VSWR	<1.70, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

MECHANICAL SPECIFICATION
Materials	ABS, aluminum, PTFE, Fiberglass
Connector type	RJ45 + 2xNf + 2xNm in external omni wi-fi antenna
Ingress protection	IP67
Dimensions	272 x 276 x 96 mm 10.71 x 10.87 x 3.78 inch
Weight	1.8 kg 3.97 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F
