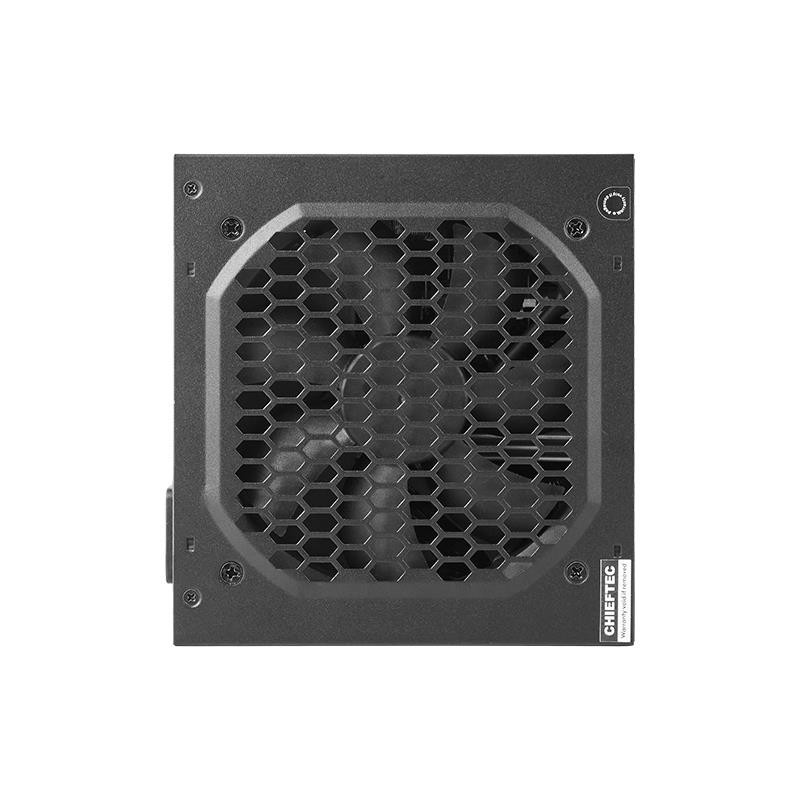

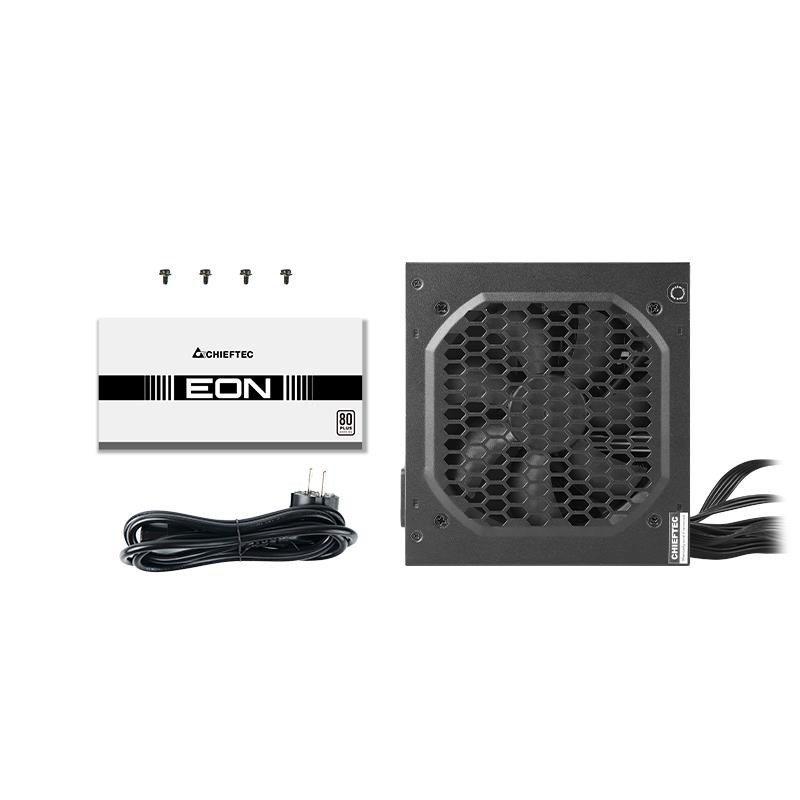

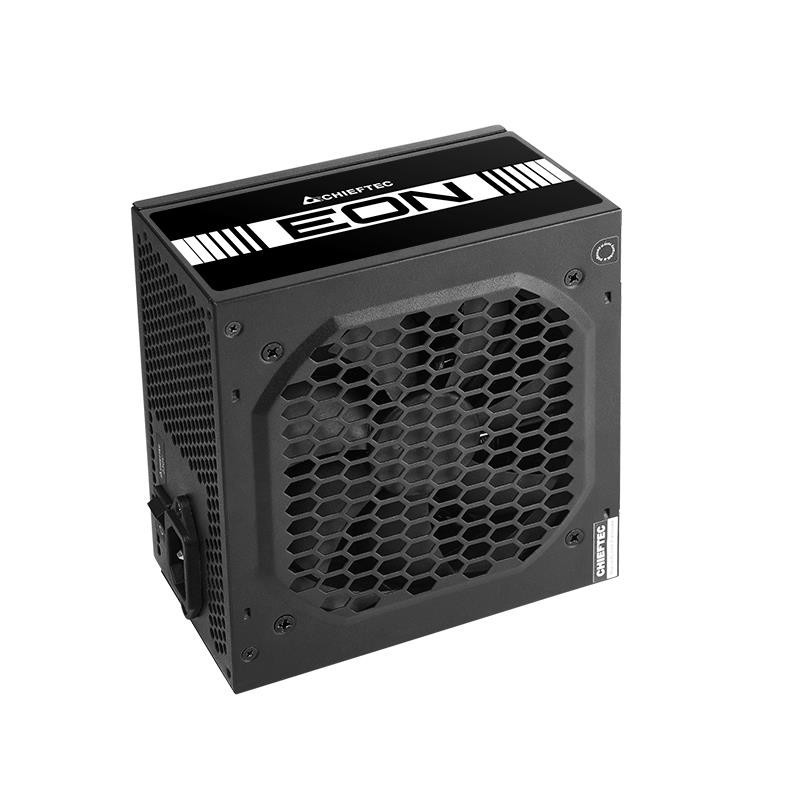

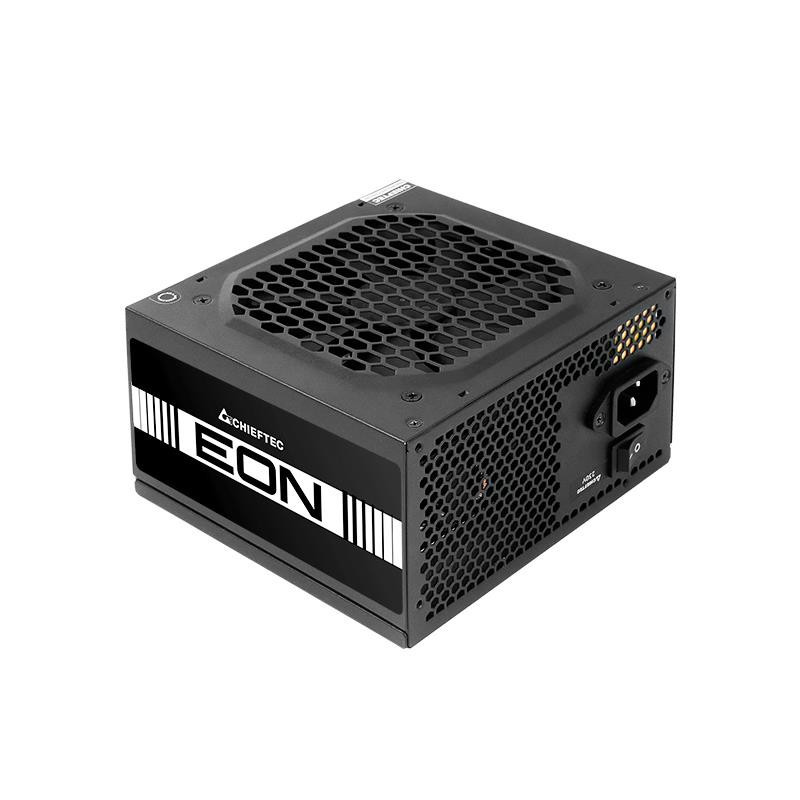

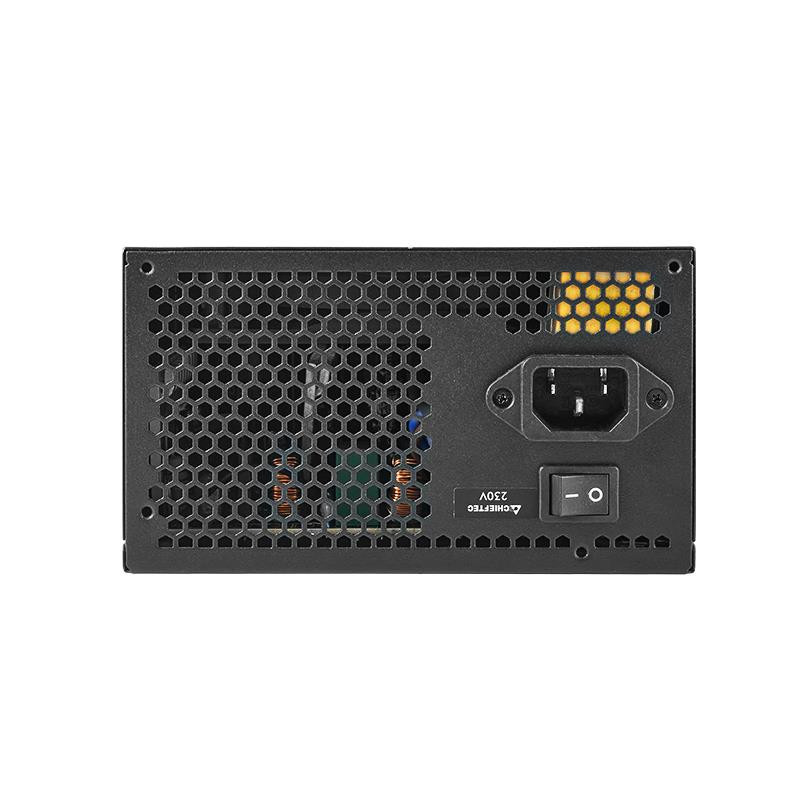

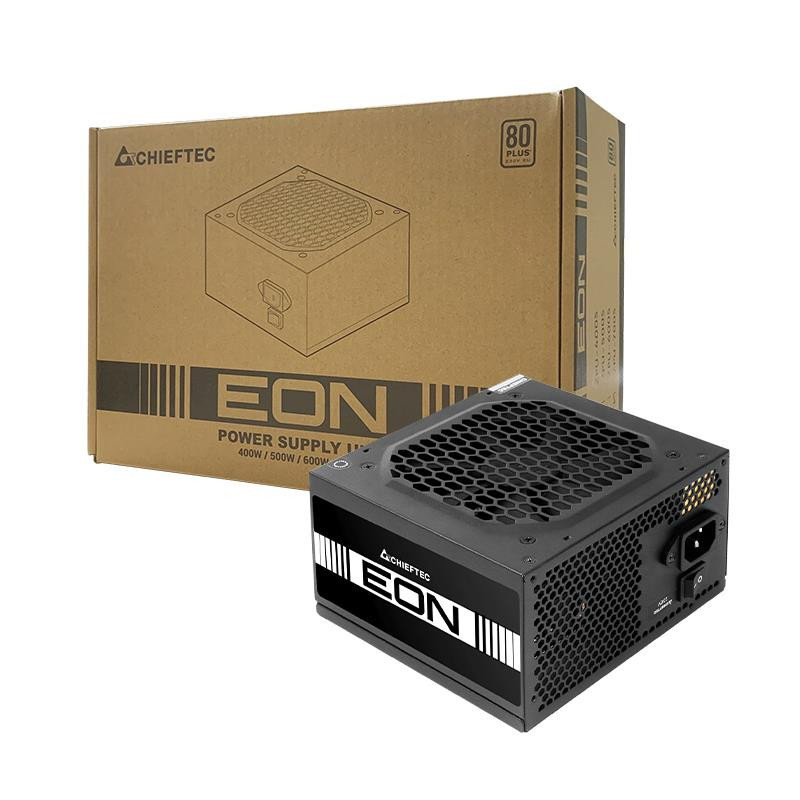

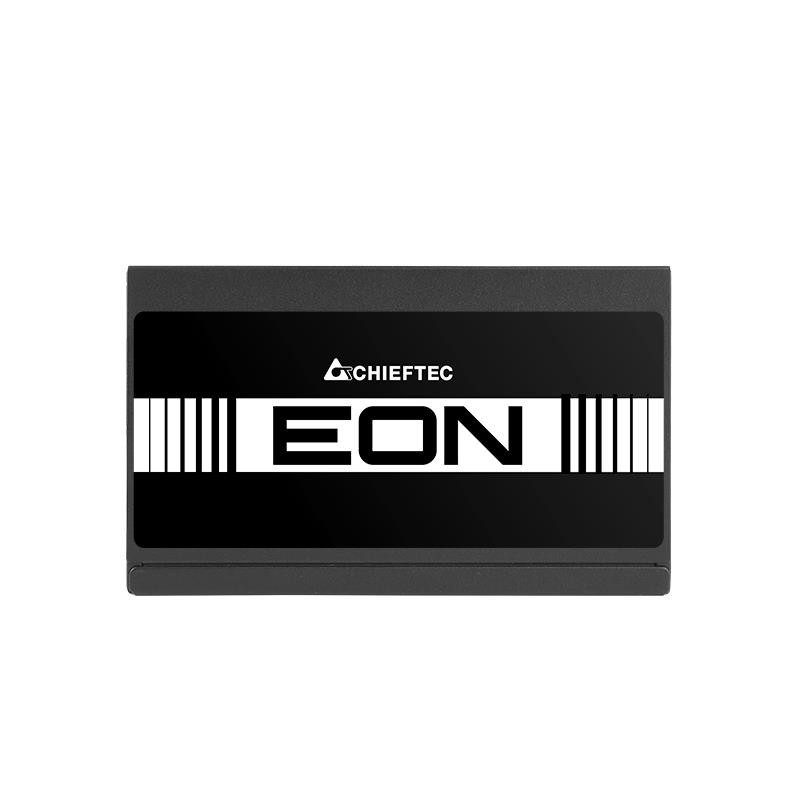

Power Supply, CHIEFTEC, 600 Watts, Efficiency 80 PLUS, PFC Active, ZPU-600S
Product reference:
2-753263078438
Power Supply, CHIEFTEC, 600 Watts, Efficiency 80 PLUS, PFC Active, ZPU-600S
Product reference:
2-753263078438
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days
The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly
competitive pricing, equipped with silent 120mm fans.
The power supplies are fully built from steel, coated in elegant black, and
equipped with extra-long native cables. The EON Series runs quietly and provides
its power with all essential protection and safety features.
| Summary | Chieftec EON . Total power: 600 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 450,600,750 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm |
| Vendor Homepage | https://www.chieftec.eu/products-detail/566/EON_Series |
| Unit Box Height | 0.18 |
| Unit Box Length | 0.255 |
| Unit Box Width | 0.1 |
| AC input frequency | 50 Hz |
| AC input voltage | 200 - 240 V |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 4.8 W |
| Input current | 4.5 A |
| Max output current (+12V1) | 45 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.4 A |
| Maximum input current (@220V) | 4.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Short circuit/Surge and inrush/Surge protection |
| Total power | 600 W |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| CPU power connector (4+4 pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| Motherboard power cable length | 650 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 450/600/750 mm |
| SATA power cable length | 450/600/750 mm |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.3 |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC/Server |
| Supported motherboard form factors | ATX |
| Fan diameter | 120 mm |
| On/off switch | Yes |
| Product colour | Black |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1340 g |
| Width | 150 mm |
| Warranty period | 2 year(s) |
| Model name | ZPU-600S |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.005546 cubm |
| Unit Calculated Weight | 1.71 kg |
