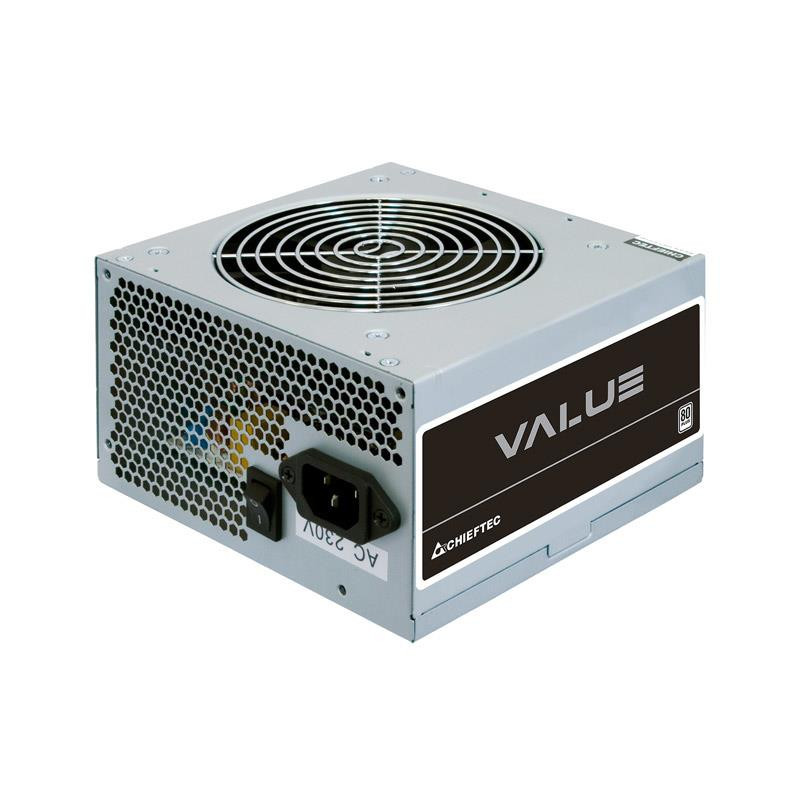

Chieftec Value APB-500B8
The APB-500B8 of the new VALUE SERIES offers both quality and efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with
installed thermal board, the PSU runs quietly on full load and provides REAL power, thereby providing all security features. Certified by CE, CB TÜV, EAC amongst many others, it's the VALUE choice!


AC input frequency50 Hz
AC input voltage230V
Certificates of conformityRoHS
ATX version2.3
Height87 mm
Cooling typeActive
Total power500 W
Gross weight1.35 kg
Harmonized System (HS) code84733020
Maximum output voltage (+12 V1)24 A
Maximum output voltage (+12 V2)21 A
Maximum output voltage (+12 VSB)2.5 A
Maximum output voltage (+3.3 V)22 A
Maximum output voltage (+5 V)19 A
Maximum output voltage (-12 V)0.3 A
Efficiency80 %
EPS power connector (8-pin)Yes
Floppy disk drive connectorYes
Power factor0.9
Power Factor Correction (PFC) TypeActive
Length140 mm
Complex power (+3.3 V)130 W
Complex power (+5 VSB)12.5 W
Complex power (+5V)130 W
Complex power (-12 V)3.6 W
Power protection featuresOvervoltage protection/Overload protection/Undervoltage protection/Short circuit
Power supply unit (PSU) form factorATX
Motherboard power connector20+4 pin ATX
Net weight1.2 kg
On/off buttonYes
PurposePC
PCI Express power connectors (6 + 2 pins)1
Wired transmission typeNon-modular
Peripheral (Molex) power connector (4-pin)2
Width150 mm
Product colorSilver
Number of SATA electrical connectors3
80 PLUS certificate80 PLUS
CertificationCE, CB, TÜV, EAC
Shipping Box Depth49.5 cm
Shipping Box Height20 cm
Shipping Box Weight13.5 kg
Shipping Box Width45 cm
SummaryChieftec Value APB-500B8. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE, CB, TÜV, EAC
Unit Box Height0.15
Unit Box Length0.22
Unit Box Width0.09
Unit Ugly Volume0.004455 cubm
Vendor Homepagehttps://www.chieftec.eu/products-detail/181/VALUE_SERIES/250/APB-500B8
Fan diameter120 mm
Number of fans1 fan(s)
Unit height15 cm
Unit depth22 cm
Unit width9 cm
Number of units per shipping box10
Input current4 A
