Power Supply, BE QUIET, Pure Power 12, 750 Watts, Peak Power 820 Watts, Efficiency 80 PLUS GOLD, PFC Active, MTBF 100000
Product reference:
2-4260052192184
Power Supply, BE QUIET, Pure Power 12, 750 Watts, Peak Power 820 Watts, Efficiency 80 PLUS GOLD, PFC Active, MTBF 100000
Product reference:
2-4260052192184
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days
Exceptional quiet, superior features

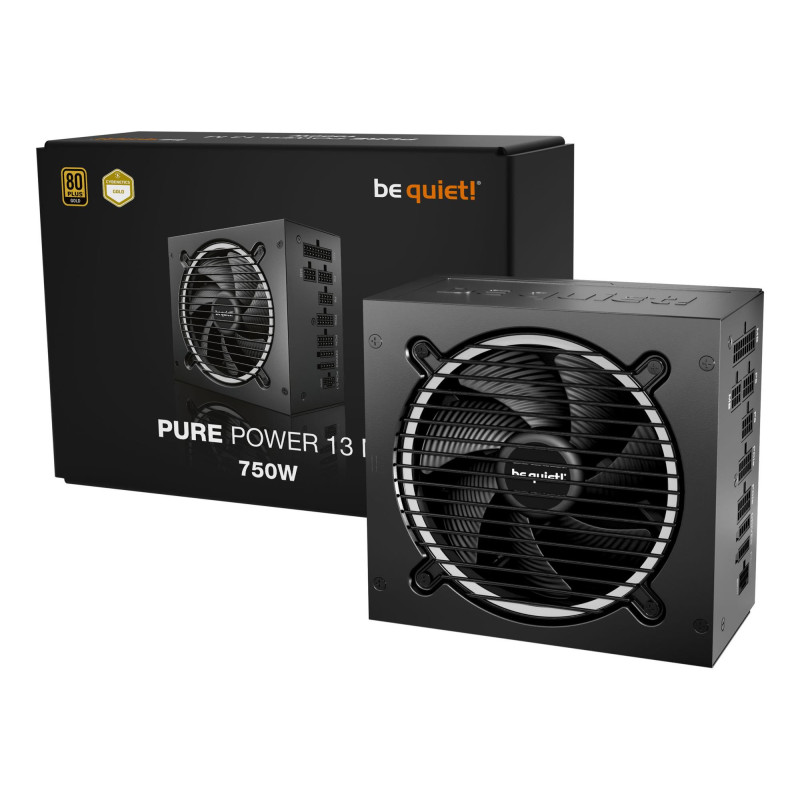

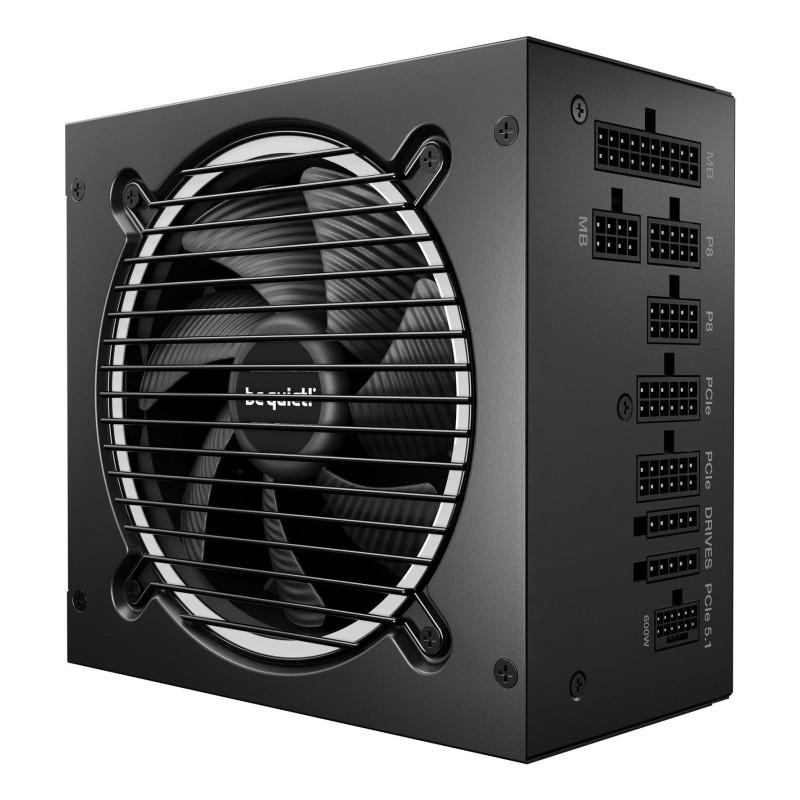

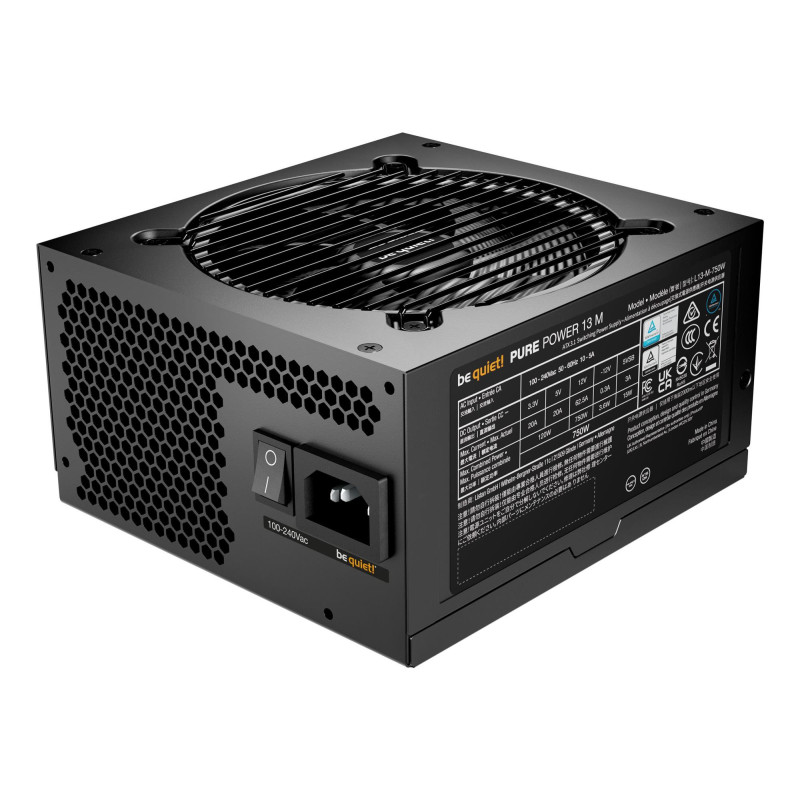

Pure Power 13 M 750W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 750W offers the best combination of features with outstanding compatibility.
- 80 PLUS® Gold efficiency (up to 94.3%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Handles massive power excursions
- Exceptionally silent semi-passive 120mm be quiet! fan
- Semi-passive construction for quiet and energy-saving operation
- LLC technology for advanced stability and voltage regulation
- One massive high-performance 12V-rail
- One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
- Full suite of safety features
- Meets latest requirements for modern standby
| 80 PLUS certification | 80 PLUS Gold |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| ATX version | 3.1 |
| Bearing technology | Rifle |
| Cable ties included | Yes |

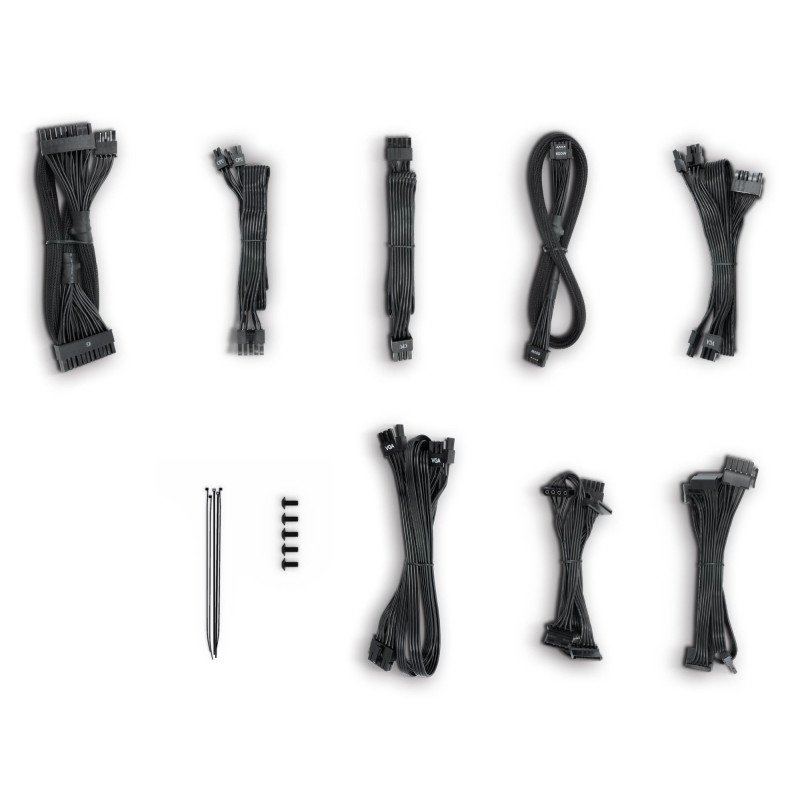

| Cables included | AC,CPU,PCIe,Peripheral (Molex),SATA |
| Cabling type | Fully-Modular |
| Combined power (+12V) | 750 W |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Compliance certificates | BSMI/CB/CCC/CE/cTUVus/Federal Communications Commission (FCC)/IRAM/RCM/RoHS/TÜV mark/UKCA/WEEE |
| Cooling type | Active |
| CPU P4 connector (4-pin) | 2 |

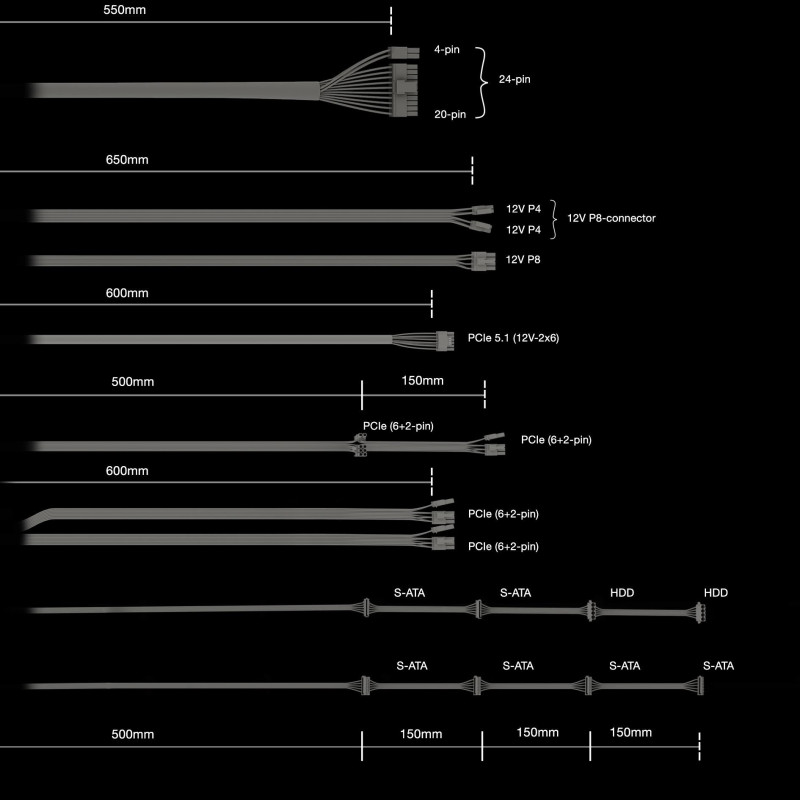

| CPU power cable length | 650 mm |
| CPU power connector (4+4 pin) | Yes |
| Depth | 160 mm |
| Efficiency | 92.6 % |
| EPS power connector (8-pin) | Yes |
| EPS version | 2.92 |
| Fan diameter | 120 mm |
| Fan speed | 0 - 1800 RPM |
| Height | 86 mm |
| Hold time | 28.62 ms |
| Max output current (+12V1) | 62.5 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Mean time between failures (MTBF) | 100000 h |
| Model name | Pure Power 12 |
| Motherboard power cable length | 550 mm |
| Motherboard power connector | 20+4 pin ATX |

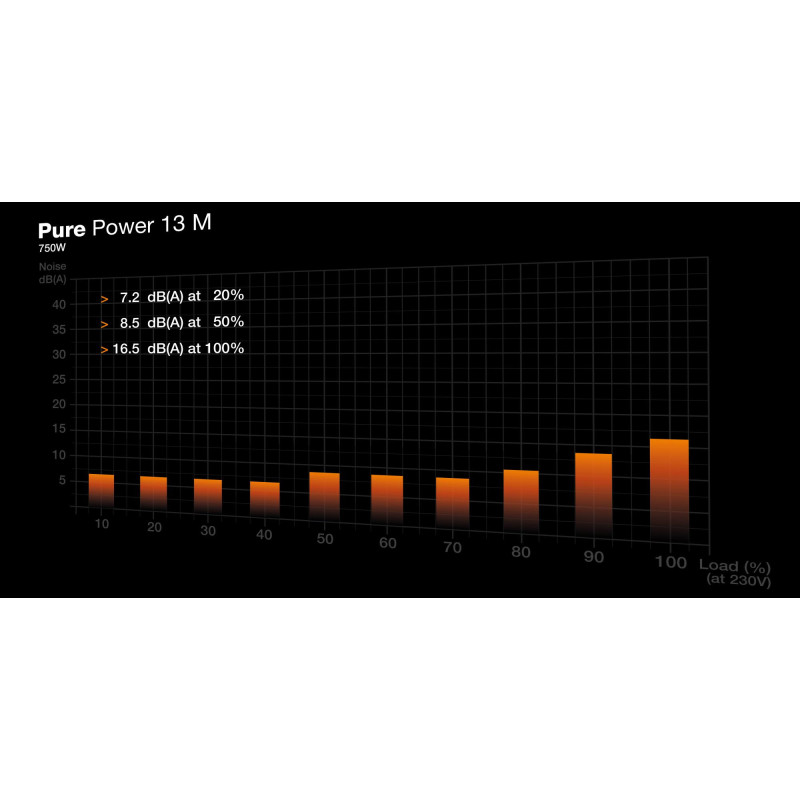

| Noise level | 20.8 dB |
| Number of +12V rail(s) | 1 |
| Number of fans | 1 fan(s) |
| Number of SATA power connectors | 6 |
| On/off switch | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Package depth | 320 mm |
| Package height | 133 mm |
| Package weight | 3200 g |
| Package width | 210 mm |
| PCI Express power connectors (12-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| Peak power | 820 W |
| Peripheral (Molex) power cable length | 800/950 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Product Net Weight | 2.46 kg |
| Products per shipping (inner) case | 6 pc(s) |
| Purpose | PC |
| SATA power cable length | 500/650/800/950 mm |
| Screws included | Yes |
| Shipping (inner) case gross weight | 21500 g |
| Shipping (inner) case height | 233 mm |
| Shipping (inner) case length | 580 mm |
| Shipping (inner) case width | 325 mm |
| Shipping Box Depth | 63 cm |
| Shipping Box Height | 24 cm |
| Shipping Box Weight | 18.8500003814697 kg |
| Shipping Box Width | 34 cm |
| Summary | be quiet! Pure Power 13 M | 750W. Total power: 750 W, AC input voltage: 100 - 240 V, Peak power: 820 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA |
| Sustainability certificates | ENERGY STAR/ErP |
| Total power | 750 W |
| Unit Box Height | 0.205 |
| Unit Box Length | 0.29 |
| Unit Box Width | 0.1 |
| Unit Calculated Volume | 0.008568 cubm |
| Unit Calculated Weight | 3.14 kg |
| Units per Shipping Box | 6 |
| Vendor Homepage | https://www.bequiet.com/en/download/powersupply/5931?utm_source=newsletter |
| Weight | 2460 g |
| Width | 150 mm |
