CASE PSU ATX 500W / GPS-500A8 CHIEFTEC
Product reference:
2-4710713239531
CASE PSU ATX 500W / GPS-500A8 CHIEFTEC
Product reference:
2-4710713239531
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days
Not available

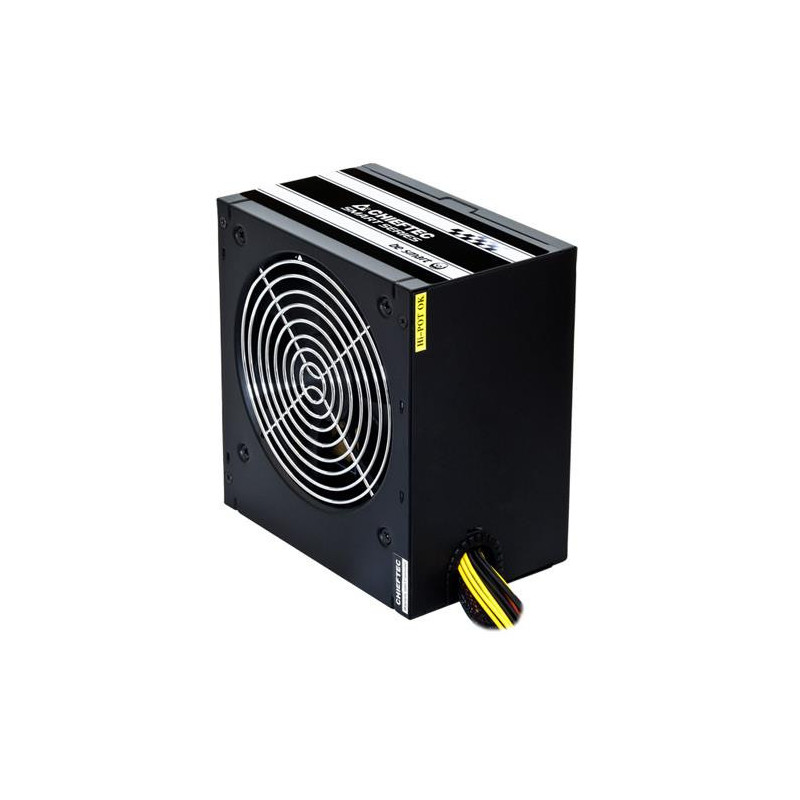

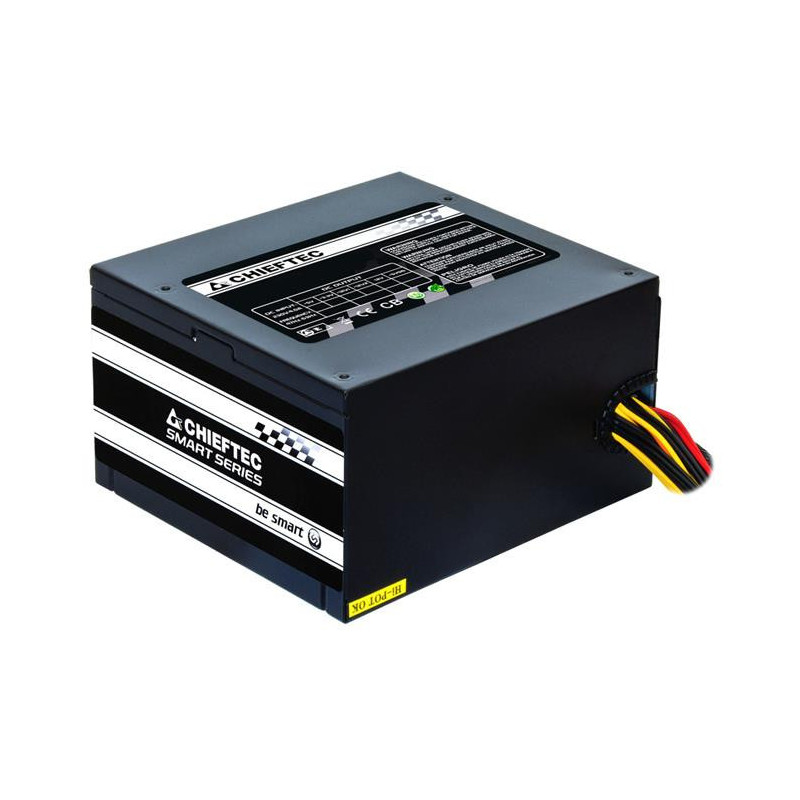

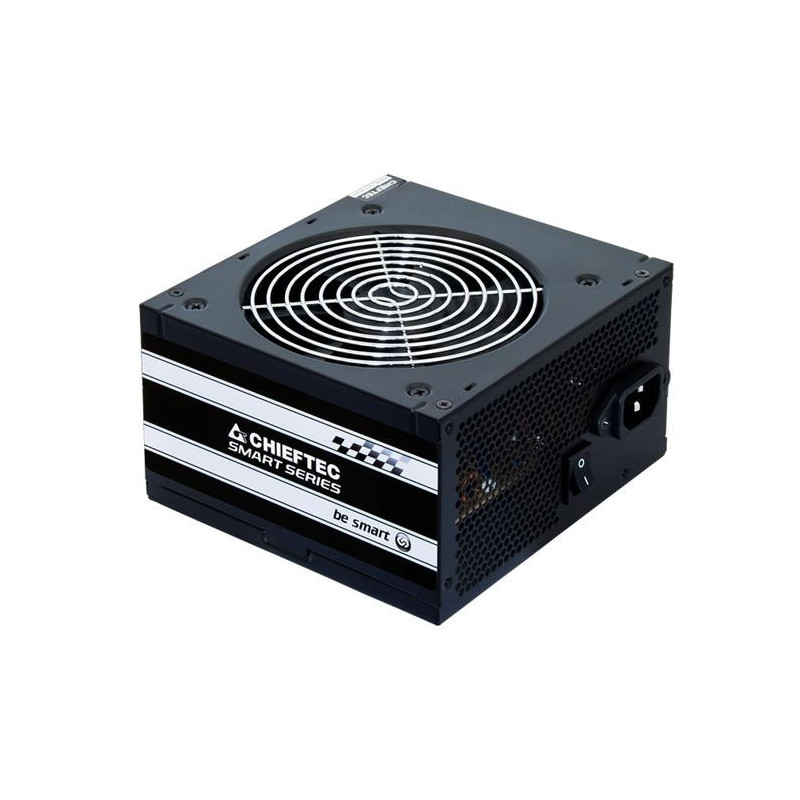

The smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.
| 80 PLUS certification | No |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 230 V |
| ATX version | 2.3 |
| Cabling type | Non-Modular |
| Combined power (+12V) | 408 W |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Cooling type | Active |
| Depth | 140 mm |
| Efficiency | 80 % |
| Fan diameter | 120 mm |
| Floppy drive power connector | 1 |
| Height | 87 mm |
| Max output current (+12V) | 12.5 A |
| Max output current (+12V1) | 24 A |
| Max output current (+12V2) | 21 A |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 19 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Power protection features | Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Purpose | PC |
| Summary | Chieftec Smart GPS-500A8. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm |
| Total power | 500 W |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.235 |
| Unit Box Width | 0.17 |
| Unit Calculated Volume | 0.005105 cubm |
| Unit Calculated Weight | 1.67 kg |
| Units per Shipping Box | 10 |
| Vendor Homepage | https://www.chieftec.eu/products-detail/178/SMART_SERIES/239/GPS-500A8 |
| Width | 150 mm |
