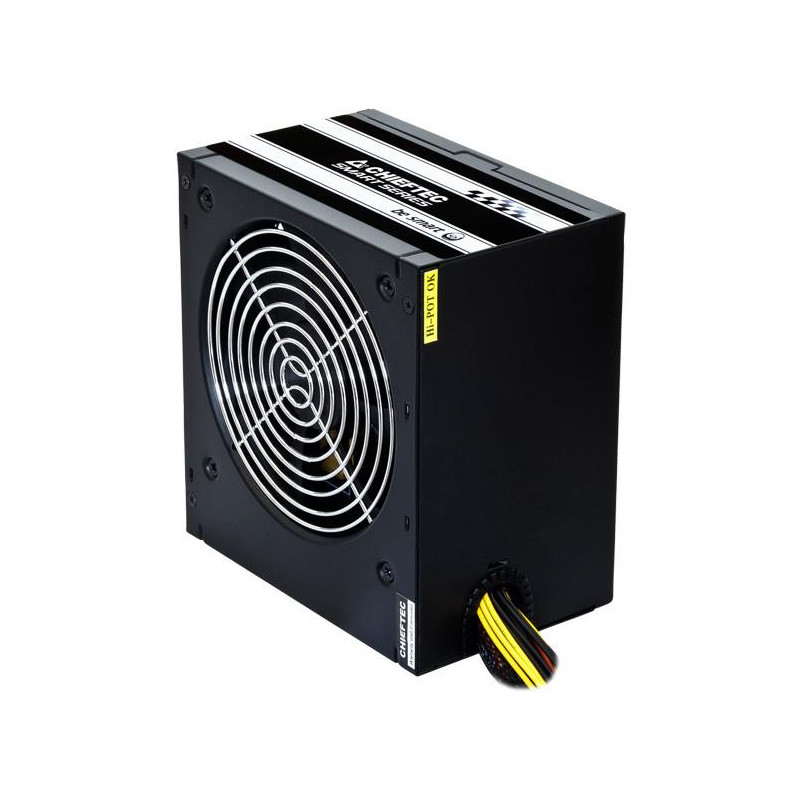

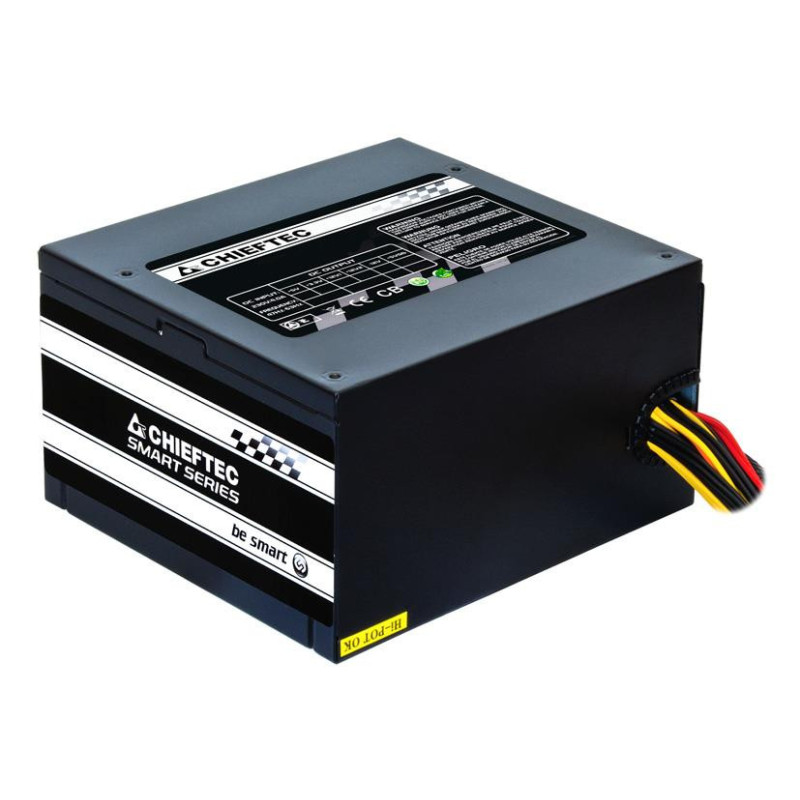

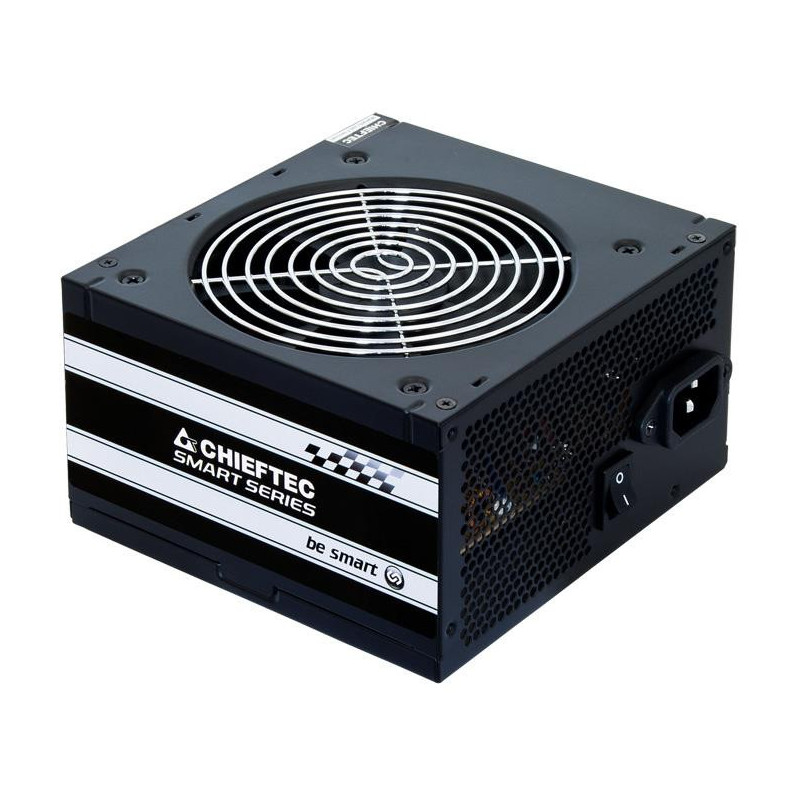

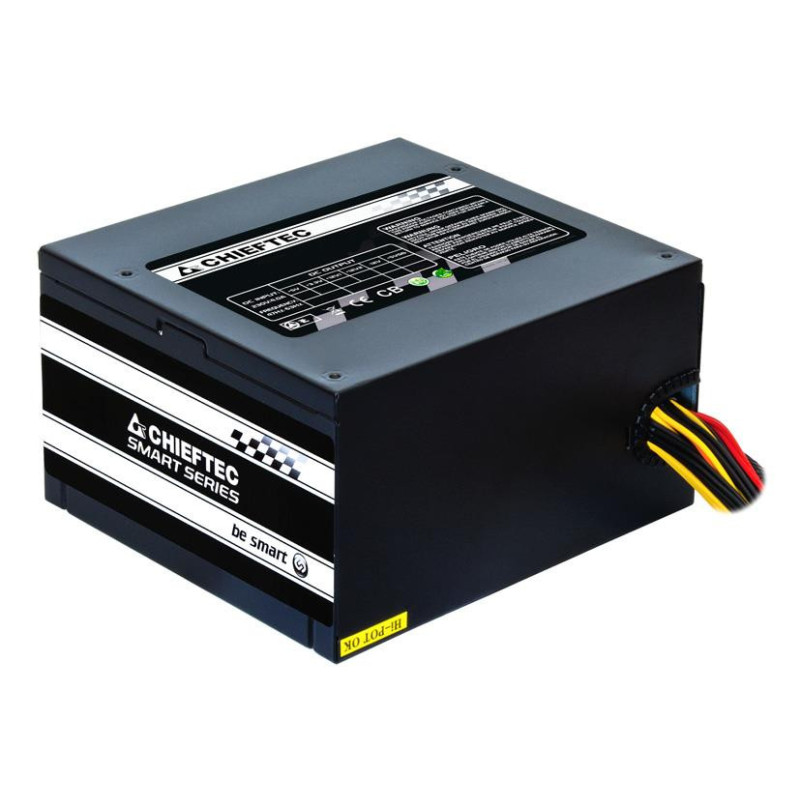

ATX 2.3 power supply Chieftec Smart 400W 80 PLUS Black (GPS-400A8)
The smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 230V |
| Certificates of conformity | RoHS |
| ATX version | 2.3 |
| Height | 87 mm |
| Total power | 400 W |
| Gross weight | 1.63 kg |
| CPU P4 connector (4 pins) | 1 |
| Maximum output voltage (+12 V1) | 18 A |
| Maximum output voltage (+12 V2) | 17 A |
| Maximum output voltage (+12 VSB) | 3 A |
| Maximum output voltage (+3.3 V) | 22 A |
| Maximum output voltage (+5 V) | 18 A |
| Maximum output voltage (-12 V) | 0.3 A |
| Power Factor Correction (PFC) Type | Active |
| Length | 140 mm |
| Connector(s) | 20+4 PIN ATX 1 8 PIN EPS(4+4) 1 8 PIN PCIe (6+2) 1 3 HOURS MOLEX/FLOPPY 2/1 |
| Complex power (+3.3 V) | 120 W |
| Complex power (+5 VSB) | 12.5 W |
| Complex power (+5V) | 120 W |
| Complex power (-12 V) | 3.6 W |
| Power protection features | Overvoltage protection/Overload protection/Undervoltage protection/Short circuit |
| Power supply unit (PSU) form factor | ATX |
| Motherboard power connector | 20+4 pin ATX |
| Net weight | 1.3 kg |
| Purpose | PC |
| PCI Express power connectors (6 + 2 pins) | 1 |
| Wired transmission type | Non-modular |
| Peripheral (Molex) power cable length | 150/500 mm |
| Peripheral (Molex) power connector (4-pin) | 2 |
| Width | 150 mm |
| Product color | Black |
| Number of SATA electrical connectors | 3 |
| SATA power cable length | 150/500 mm |
| 80 PLUS certificate | Yes |
| Shipping Box Depth | 51 cm |
| Shipping Box Height | 26 cm |
| Shipping Box Weight | 16.3 kg |
| Shipping Box Width | 38.5 cm |
| Summary | Chieftec Smart GPS-400A8. Total power: 400 W, AC input voltage: 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Fan diameter: 12 cm. Compliance certificates: RoHS |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.235 |
| Unit Box Width | 0.17 |
| Unit Ugly Volume | 0.005105 cubm |
| Vendor Homepage | https://www.chieftec.eu/products-detail/178/SMART_SERIES/238/GPS-400A8 |
| Fan diameter | 120 mm |
| Unit height | 9.5 cm |
| Unit depth | 23.5 cm |
| Unit width | 17 cm |
| Number of units per shipping box | 10 |
| Input current | 4 A |
