Renogy One Core monitoring system

Renogy ONE Core monitoring system (ONE Connect 2.0)

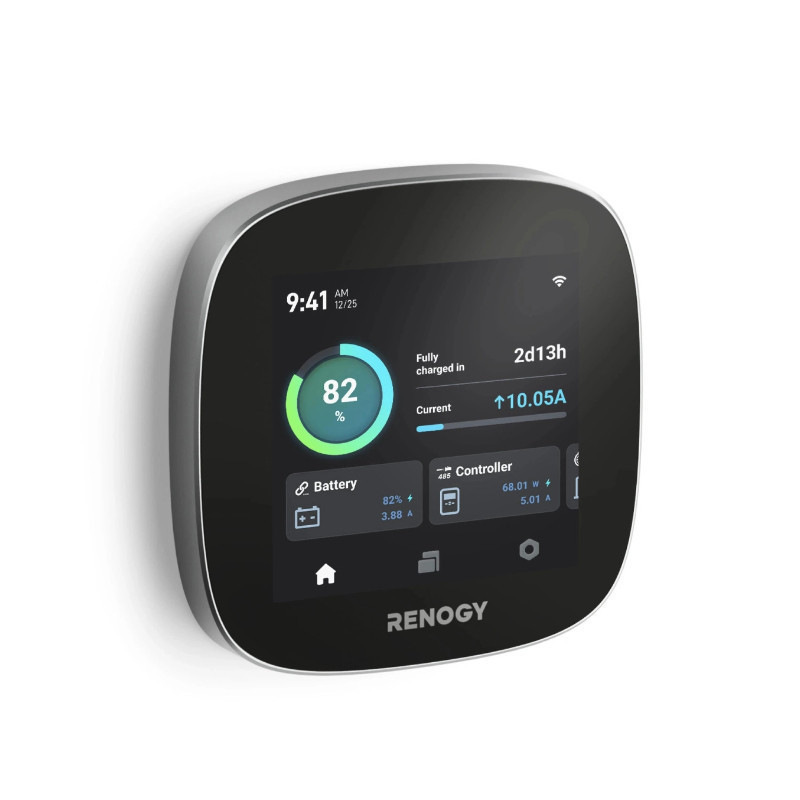

Renogy ONE Core is a central panel and "hub" for monitoring and analyzing energy in off-grid and mobile systems (e.g. RV/camper).
It provides constant access to energy data locally on the built-in screen and remotely via the Renogy ONE portal and the DC Home app.
Thanks to ONE Connect 2.0 technology, the user can control and analyze the system's operation 24/7, as well as integrate smart accessories
to automate functions in the building.

Key benefits

• 24/7 energy monitoring - continuous monitoring of parameters and consumption thanks to Bluetooth (BLE Mesh) and RS-485 connectivity.


• Remote access from anywhere - preview in the DC Home app and the Renogy ONE portal.


• Multifunctional hub - combines energy monitoring, smart device control and security functions in one panel.


• RV Leveling Assistant - the built-in leveling sensor provides precise information about the vehicle's stability on the panel and in the application.


• OTA updates - Internet updates provide access to the latest features and fixes.

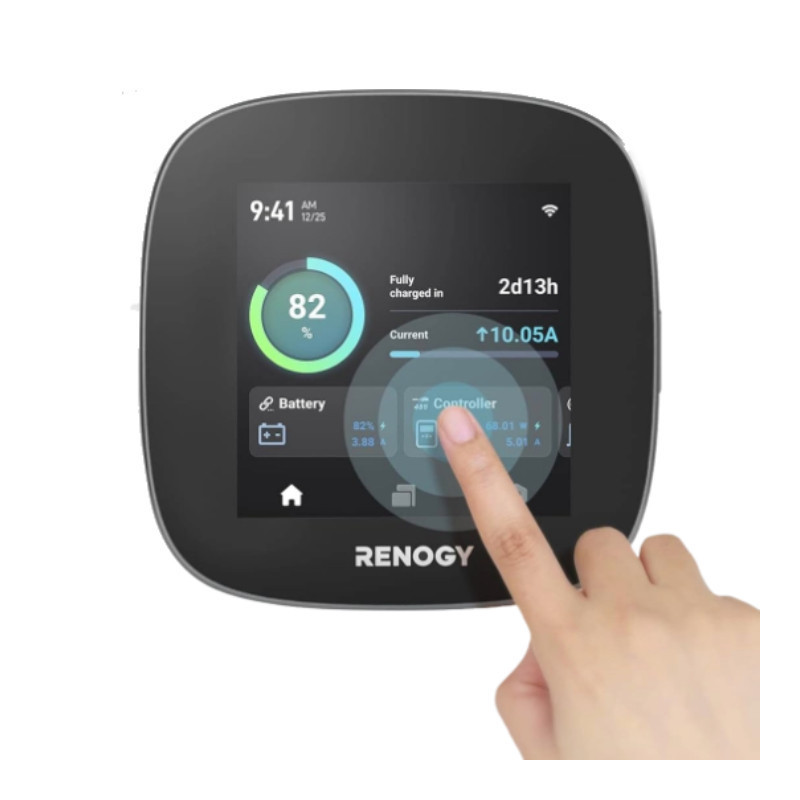

• 4" touch screen - convenient local operation and quick access to data (480 × 480).


• Wide operating temperature range - from -20°C to 70°C.

Functions and Applications

ONE Core enables energy analysis across multiple devices 24/7 and serves as the system's "command center."
Thanks to compatibility with smart accessories, you can create automations (e.g., control of lighting, ventilation, air conditioning, or security elements). Additionally, the panel can detect unexpected movements in the camper, increasing protection in suspicious situations.

Main features

• Energy analysis across multiple devices 24/7


• A central hub for connecting and controlling smart devices


• RV Leveling Assistant with Built-in Sensor


• Remote monitoring via ONE Connect 2.0


• Over-the-Air (OTA) updates


• 4-inch touchscreen display


• High operating temperature range: -20°C to 70°C

Technical specifications

• Model: Renogy ONE Core


• Operating voltage: 8-60 VDC (5 VDC for USB Type-C)


• Power consumption at 12V:



  • Operation, Wi-Fi on, 100% illumination: 3.2 W


  • Operation, Wi-Fi on, 50% illumination: 2.4 W


  • Operation, Wi-Fi on, 0% illumination: 1.9 W


  • Off, logger still active: 1.5 W






• Communication:



  • Wi-Fi (IEEE 802.11b/g/n 2.4 GHz)


  • Bluetooth LE and Bluetooth Mesh


  • Zigbee 3.0 (IEEE 802.15.4)


  • RS-485






• Touch screen: 4 inches, 480 × 480p


• Leveling range and accuracy: ±89°, 0.1°


• Operating temperature: -20°C to 70°C


• Operating humidity: 0% to 95% RH


• Working height: below 5000 m above sea level

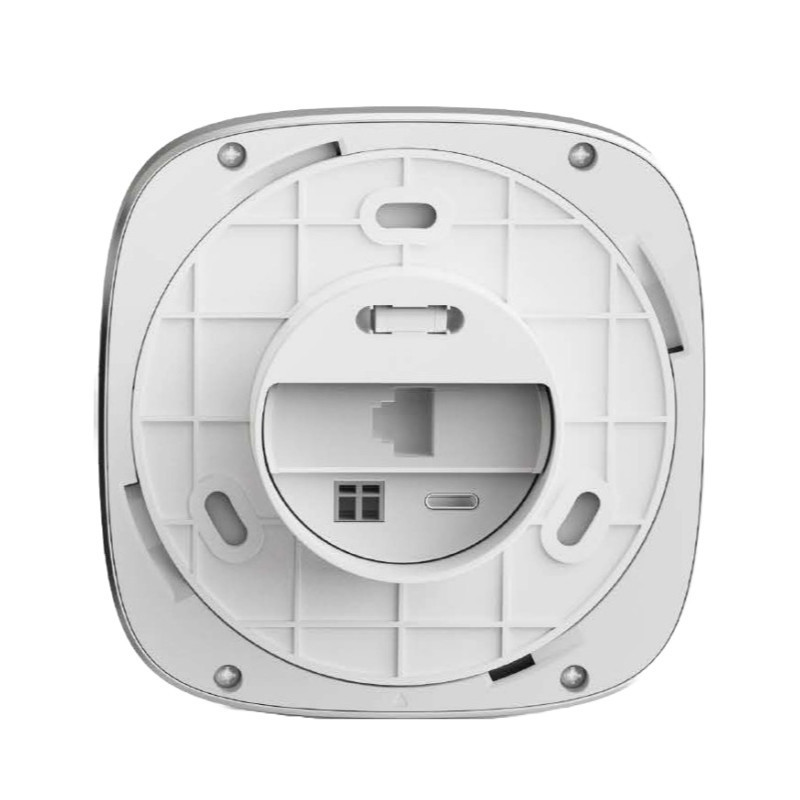

• Installation: flush mounting or tabletop placement

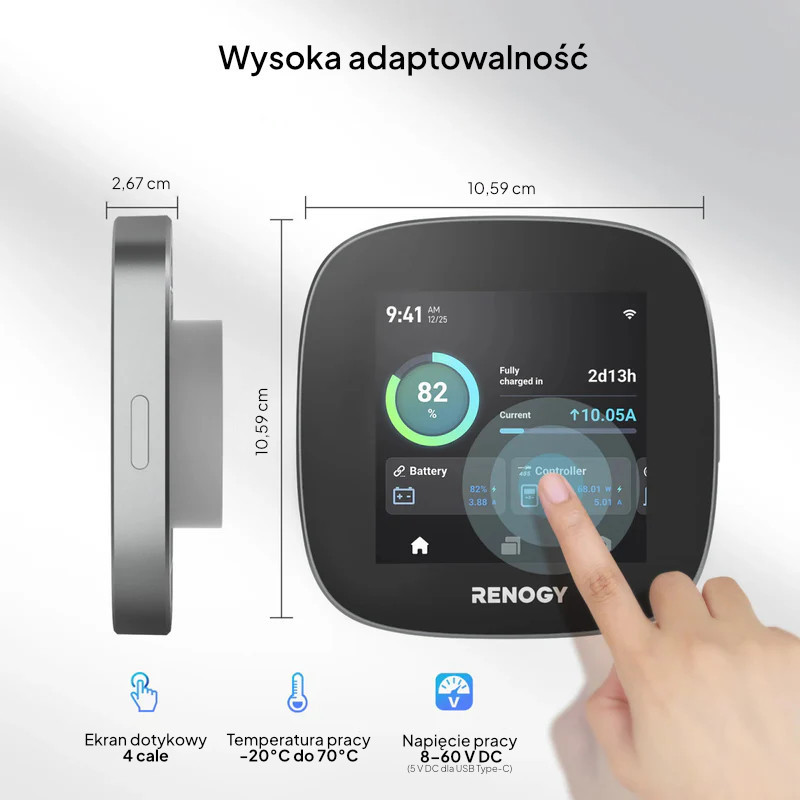

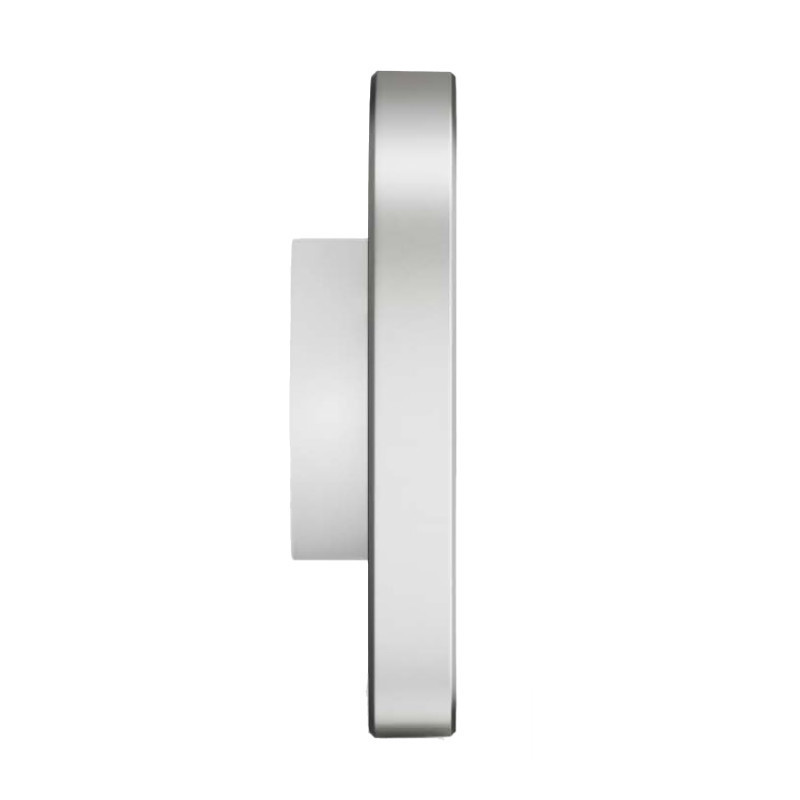

• Dimensions: 106 × 106 × 26.6 mm


• Libra: 128 g

Certificates and warranty

• Certificates: CE, FCC, RoHS, TSCA, BQB, IC-ID


• Guarantee: 2 years
