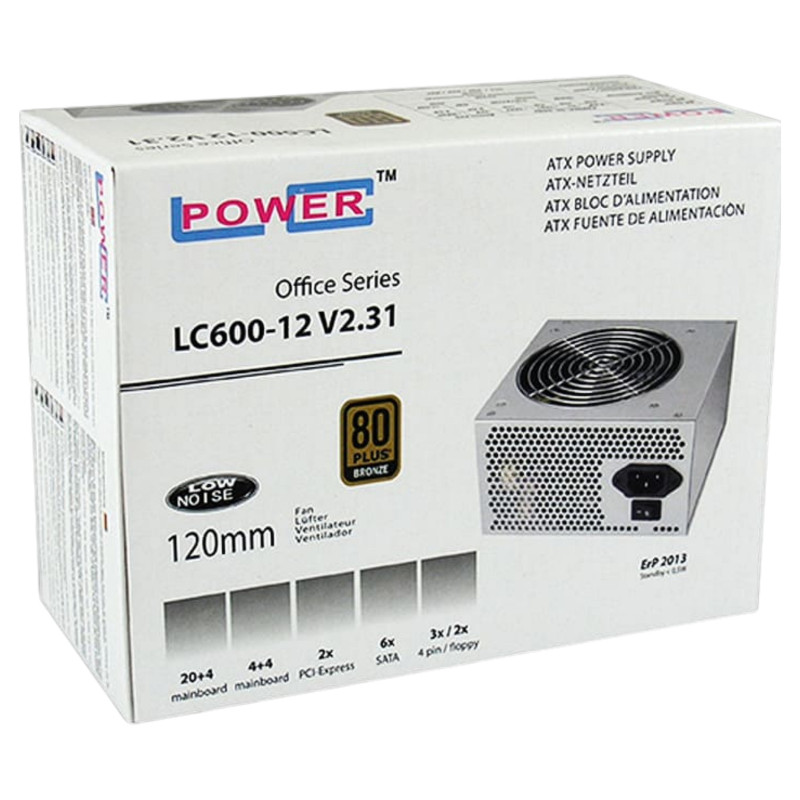

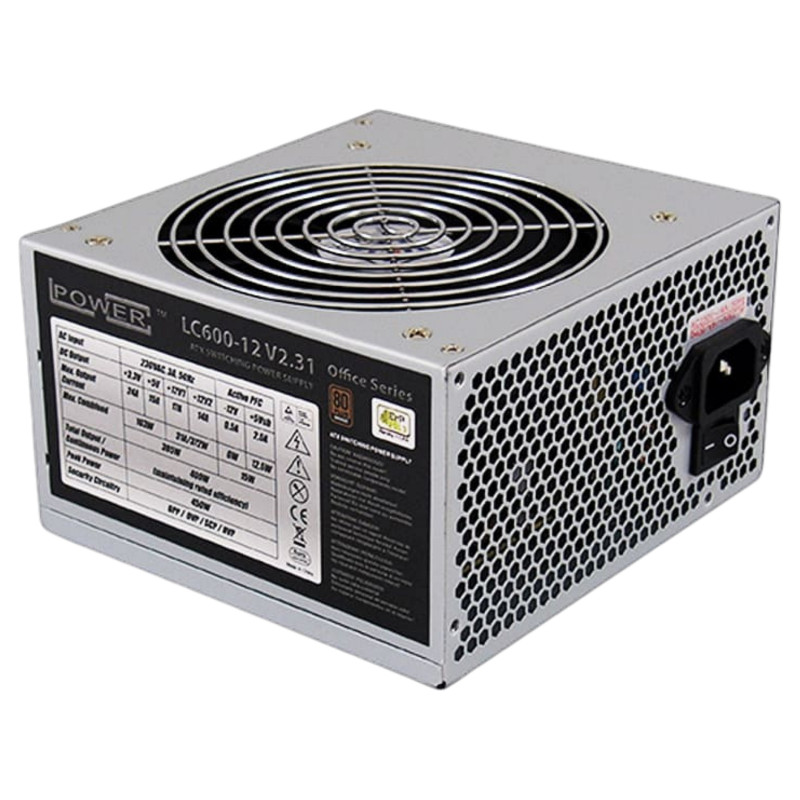

LC-Power LC600-12 V2.31 power supply unit

LC-Power LC600-12 V2.31. Total power: 400 W, AC input voltage: 230 V, Peak power: 450 W. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Grey, Fan diameter: 12 cm, Number of fans: 1 fan(s). Certification: TÜV, CE

- 450W max. / peak
- 80 PLUS® BRONZE 230V EU certified
- Efficiency up to 89,14%
- Standby consumption: 0,16W
- 120mm fan
- 1x PCI-Express 6 pin, 1x PCI-Express 6+2 pin
- Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry

Power

Total power: 400 W
Peak power: 450 W
AC input voltage: 230 V
AC input frequency: 50 Hz
Input current: 3 A
Maximum input current (@110V): +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Power Factor Correction (PFC) type: Active
Combined power (-12V): 6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 24 A
Max output current (+12V1): 17 A
Max output current (+12V2): 14 A
Max output current (+5V): 15 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 2.5 A
Efficiency: 89.14%
Power protection features: Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
Number of PATA power connectors: 3
PCI Express power connectors (6-pin): 1
PCI Express power connectors (6+2 pin): 1
Feature: CPU power connector (4+4 pin)
Feature: ATX power connector (20+4 pin)
Floppy drive power connector: 2
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Power supply unit (PSU) form factor: ATX
ATX version: 2.31

Design

Product colour: Grey
Fan diameter: 12 cm
Number of fans: 1 fan(s)

Certificates

Certification: TÜV, CE

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 85 mm
Weight: 1.44 kg

Logistics data

Harmonized System (HS) code: 84733020
