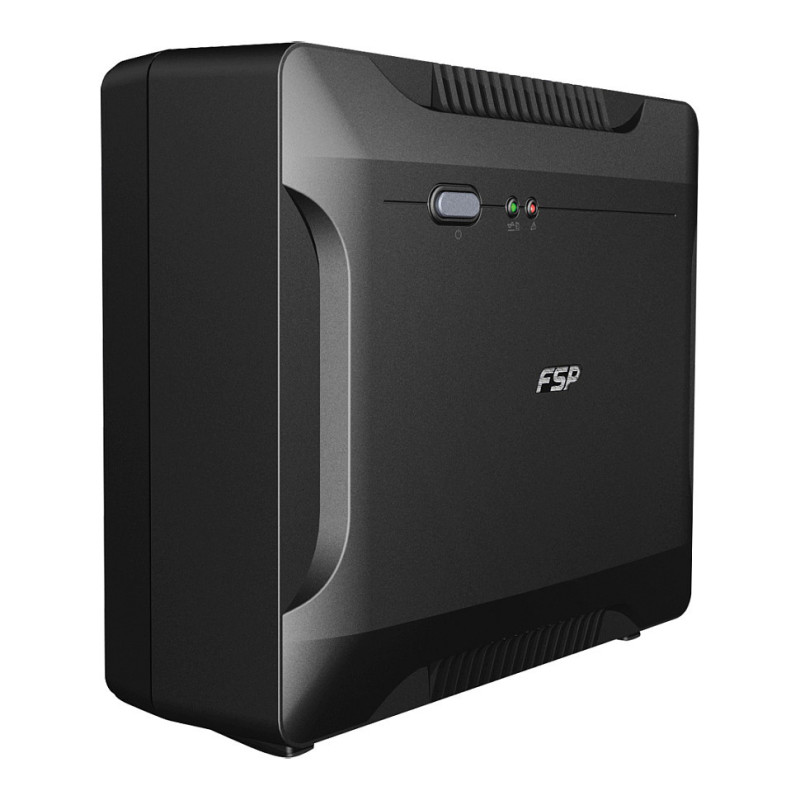

FSP Nano 600 uninterruptible power supply (UPS)

FSP Nano 600. UPS topology: Standby (Offline), Output power capacity: 0.6 kVA, Output power: 360 W. AC outlet types: Type F, AC outlets quantity: 2 AC outlet(s). Battery capacity: 7 Ah, Battery voltage: 12 V, Typical backup time at full load: 10 min. Form factor: Compact, Product colour: Black. Width: 82.5 mm, Depth: 228 mm, Height: 207 mm
The Nano UPS provides comprehensive protection in a small and economic package. The UPS is more compact and offers greater comprehensive power protection against surges and spikes.
This UPS will continue providing stable power to connected equipment and enable to shutdown PC safely during power failure.
Its embedded microprocessor controller guarantees high reliability and it's perfect any home or small office application.
- Compact size with stand and mounting flexibility
- Excellent microprocessor control guarantees high reliability
- Auto restart while AC is recovering
- Simulated sine wave
- Cold start function
- Full protection: discharge, overcharge, short circuit and thermal protection

Features

UPS topology: Standby (Offline)
Output power capacity: 0.6 kVA
Output power: 360 W
Waveform: Sine
Input operation voltage (min): 180 V
Input operation voltage (max): 270 V
Input frequency: 50/60 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 220 V
Output frequency: 50/60 Hz
Response time: 6 ms
Power protection features: Overcharge, Overdischarge, Overheating, Short circuit
Audible alarm(s): Yes
Auto-restart: Yes

Ports interfaces

AC outlet types: Type F
AC outlets quantity: 2 AC outlet(s)

Battery

Battery capacity: 7 Ah
Battery voltage: 12 V
Number of batteries supported: 1
Typical backup time at full load: 10 min
Battery recharge time: 8 h

Design

Form factor: Compact
Product colour: Black
LED indicators: Yes

Operational conditions

Operating relative humidity (H-H): 0 - 90%

Weight dimensions

Width: 82.5 mm
Depth: 228 mm
Height: 207 mm
Weight: 2.7 kg

Packaging data

Package width: 288 mm
Package depth: 120 mm
Package height: 280 mm
