EPEVER MPPT XTRA2210N G3 BLE 20A Charge Controller

is an advanced device for managing photovoltaic systems, which, thanks to MPPT technology, significantly increases the efficiency of solar energy conversion. The innovative MPPT algorithm ensures optimal tracking of the maximum power point, which translates into increased energy efficiency by 20-30% compared to traditional PWM regulators. This allows the system to deliver more energy even under changing weather conditions.
Controller from the series XTRA N It offers exceptional adaptability to various photovoltaic system configurations, making it an incredibly versatile tool. Compatibility with various battery types, including AGM, gel, lithium, and LiFePO4, ensures the device will perform well in any environment. Built-in Bluetooth and LCD display enable full control over the system without the need for a permanent Internet connection, which significantly facilitates monitoring and management of the system.
One of the key elements that distinguishes EPEVER MPPT XTRA2210N G3, is an extremely high MPPT tracking efficiency of over 99.5%. This ensures the system always operates at maximum efficiency, minimizing energy loss. This device also offers power and charging current limiting function, which ensures stable operation even in the most demanding conditions, such as high temperatures. Additionally, real-time energy statistics function allows the user to track system parameters, which enables accurate analysis of energy production and consumption.

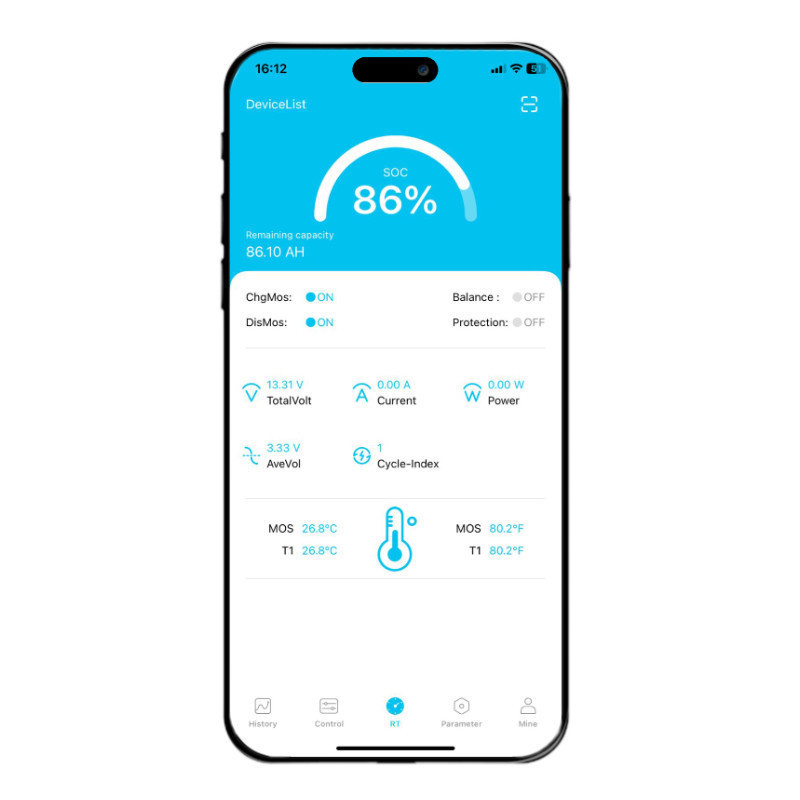

Advanced technology XTRA2210N G3 BLE 20A makes it one of the most reliable charge regulators on the market. Automatic reduction of charging power In case of excessive temperatures, it protects the system from overheating, and the possibility of remote control via a mobile application or PC software adds even greater flexibility to the user.

Reliable and Sustainable Solution

It has been designed with long-term reliability in mind, as evidenced by its robust construction and careful manufacturing process. Housing with IP33 protection class protects against dust and water, making the device ideal for use in harsh environmental conditions. Additionally, the use of advanced technological solutions, such as MPPT control algorithm, enables a quick response to changing environmental conditions, maximizing the use of available energy from solar panels.
Moreover, EPEVER MPPT XTRA2210N G3 BLE 20A It contributes to environmental protection by promoting the use of renewable energy. Thanks to efficient energy management, the device helps reduce the carbon footprint, which is especially important in today's growing environmental awareness.

Technical Specifications

• Model: XTRA2210N G3 BLE 20A


• Nominal system voltage: 12/24VDC/Auto


• Controller operating voltage range: 8～31V


• Rated charging current: 20A


• Rated discharge current: 20A


• Maximum PV open circuit voltage: 100 V (at minimum operating temperature), 92 V (at 25 )


• MPPT voltage range: (Battery voltage + 2V) ~ 72V


• Rated charging power: 260W/12V, 520W/24V


• Maximum conversion efficiency: 98.30%


• Maximum load efficiency: 96.40%


• Static losses (communication port enabled): ≤ 15mA (12V), ≤ 9mA (24V)


• Static losses (communication port disabled): ≤ 8mA (12V), ≤ 6mA (24V)


• Voltage drop in the discharge circuit: ≤ 0.23V


• Temperature compensation: -3 mV/ /2 V (default)


• Type of grounding: common negative pole


• RS485 port: 5VDC/200mA (RJ45)


• LCD backlight time: default: 60 s, range: 0~999 s (0 s: backlight on all the time)


• Dimensions: 217×158×56.5mm


• Installation dimensions: 160×149mm


• Dimensions of mounting holes: Φ5mm


• Terminal: 6AWG(16mm²)


• Recommended wire size: 10AWG(6mm²)


• Net weight: 0.97kg


• Operating temperature range: -25 ~+50


• Storage temperature range: -20 ~+70


• Relative humidity: ≤95%, NC


• Case: IP33 (protection against solid objects larger than 2.5 mm in diameter and against water drops at an angle of up to 60°)


• Degree of pollution: PD2

Charge controller EPEVER MPPT XTRA2210N G3 BLE 20A It's the perfect solution for those seeking efficient and reliable photovoltaic system management. Its high efficiency, advanced monitoring features, and robust design make it one of the best devices in its class. Thanks to MPPT technology and its versatility, this controller will satisfy even the most demanding users.
