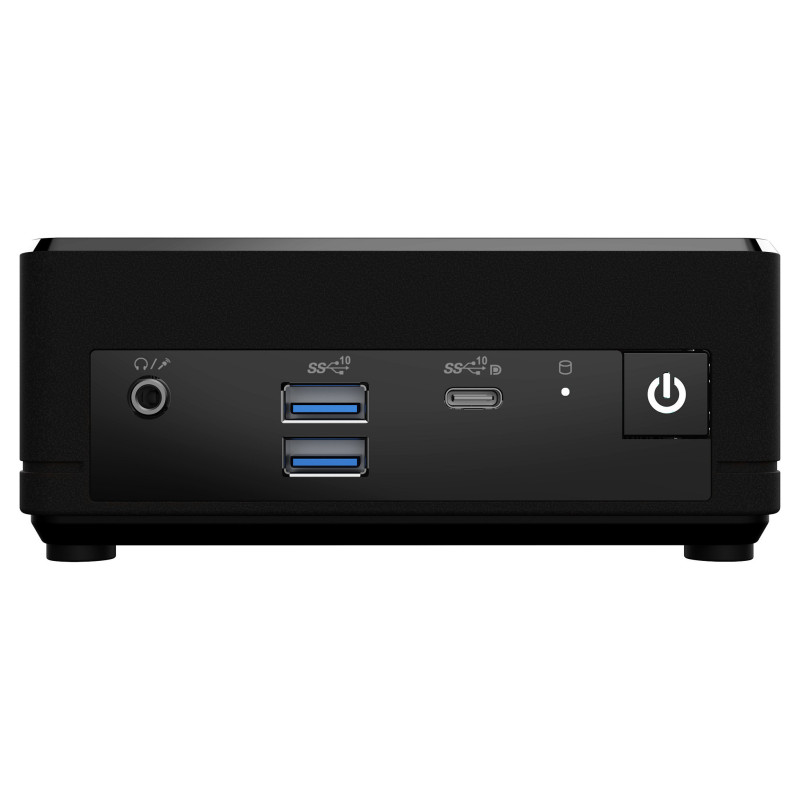

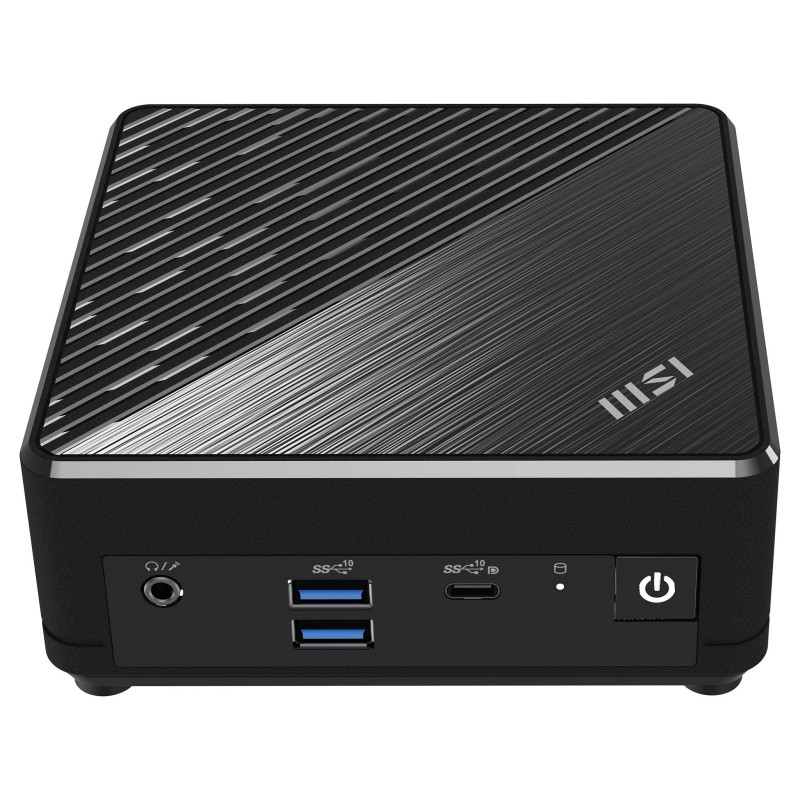

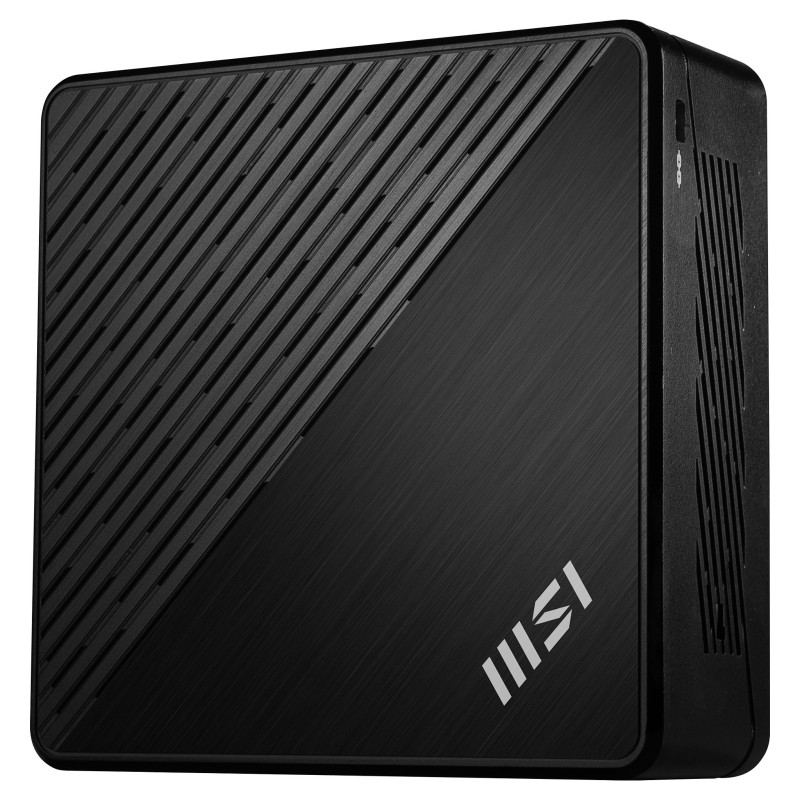

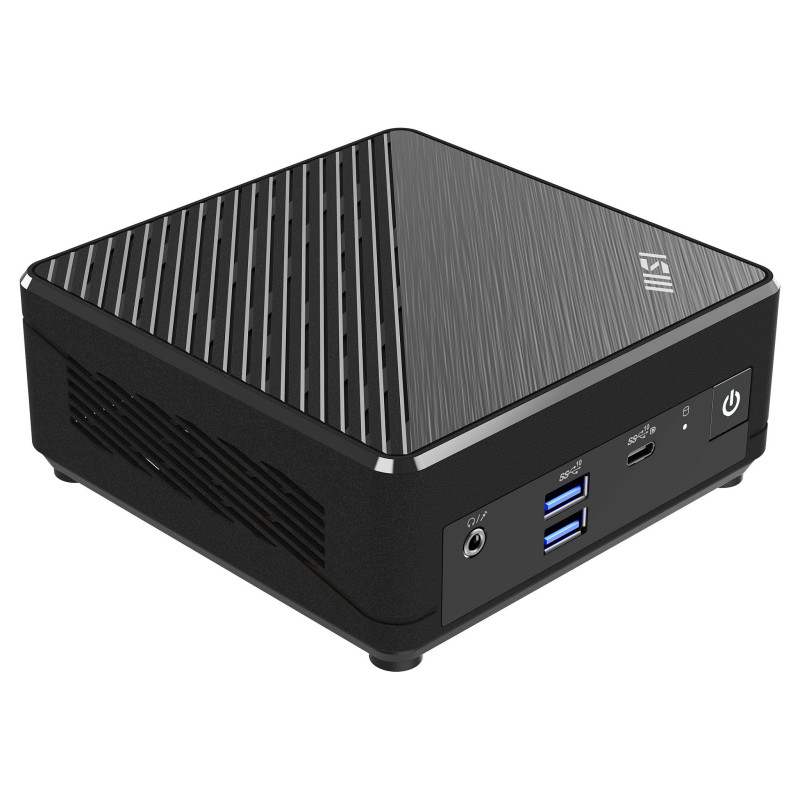

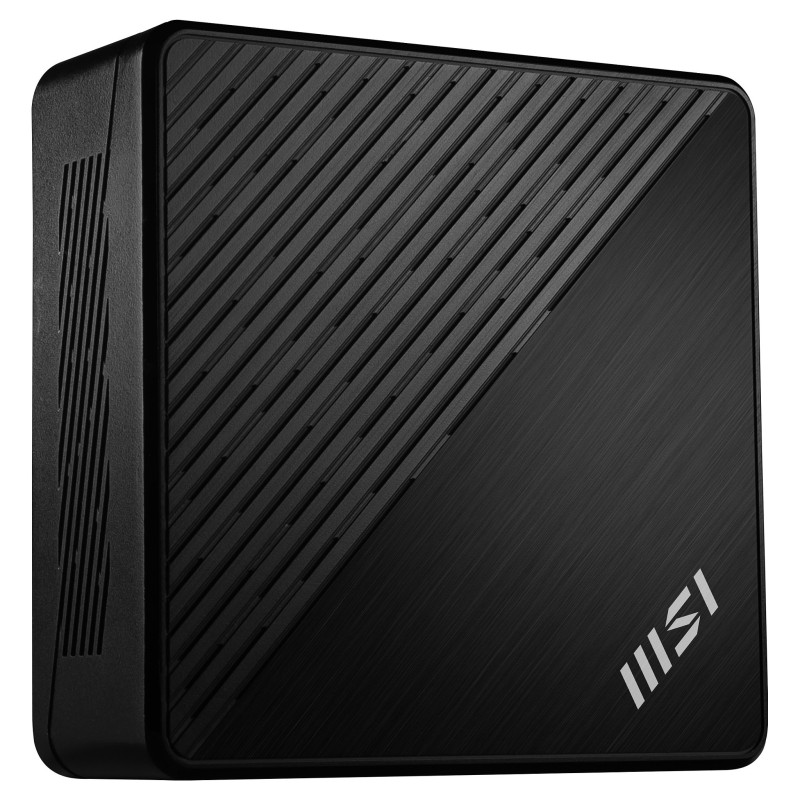

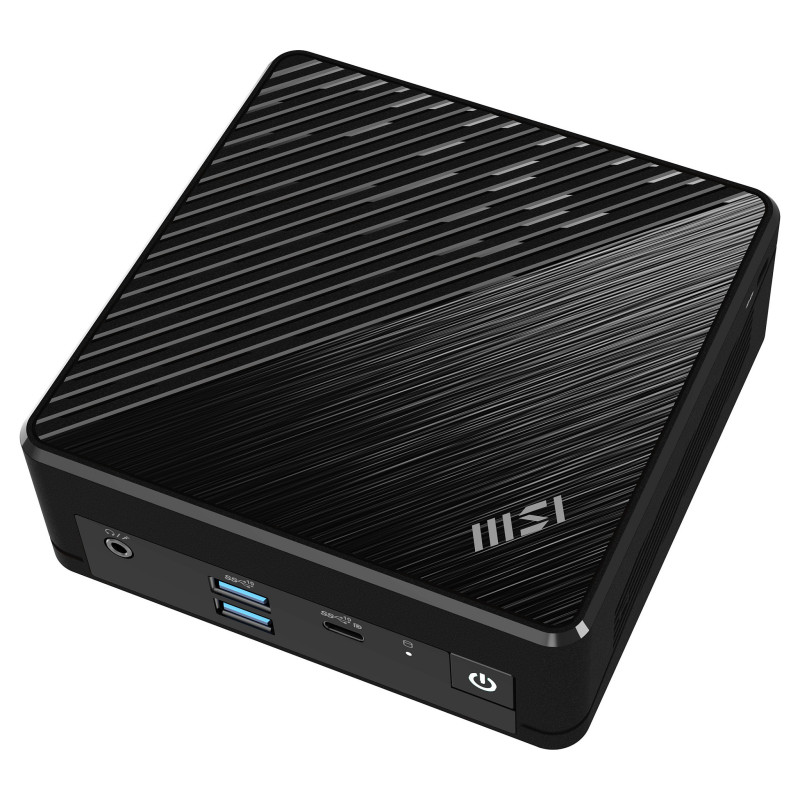

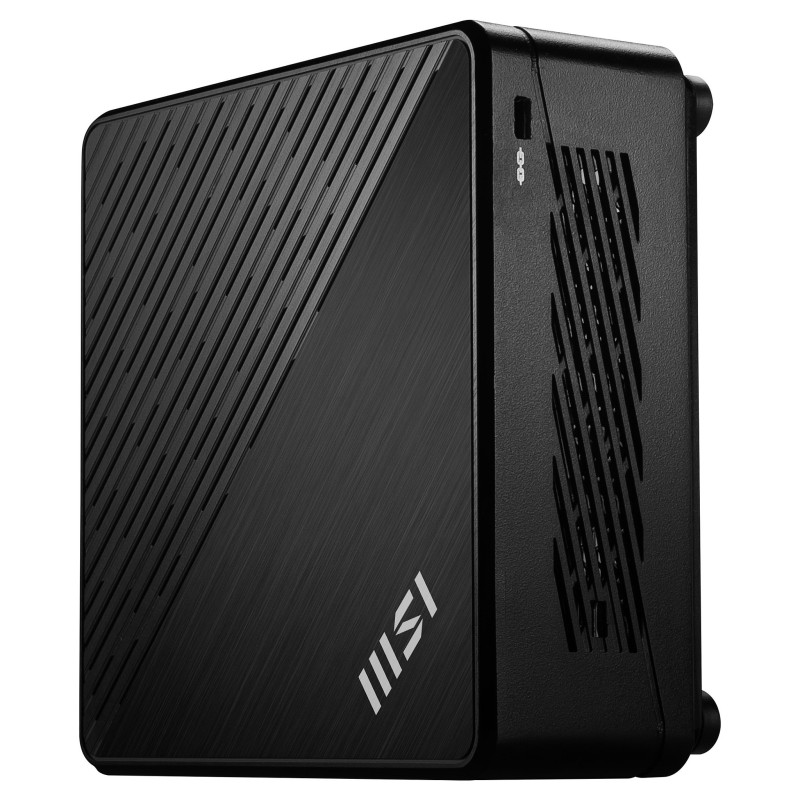

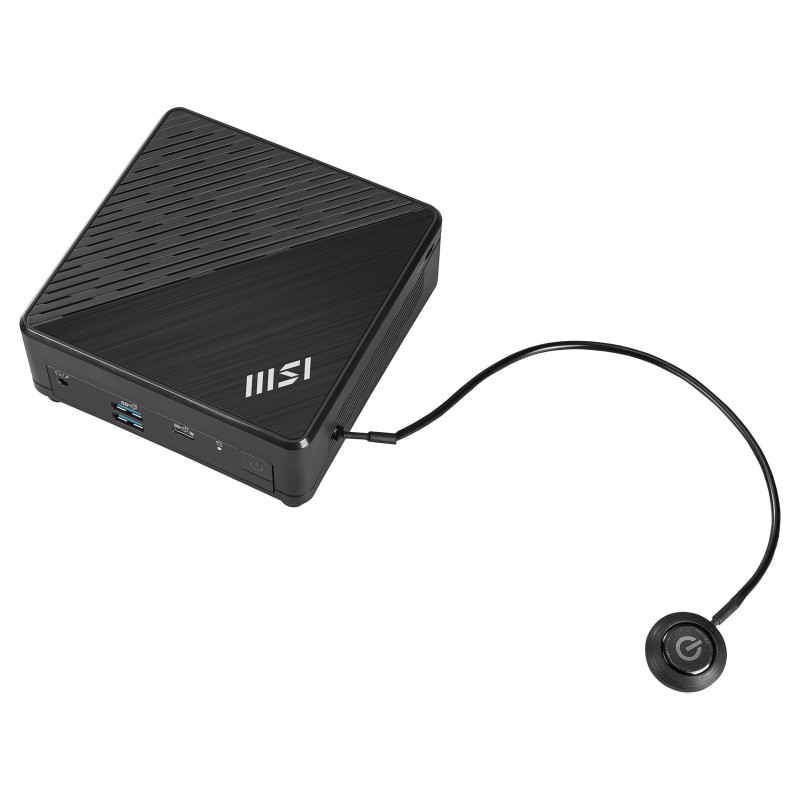

MSI Cubi N ADL-002BEU

MSI Cubi N ADL-002BEU. Chassis type: 0.69L sized PC, Product type: Mini PC barebone. Motherboard chipset: Intel SoC. Supported memory types: DDR4-SDRAM, Number of memory slots: 1, Maximum internal memory: 16 GB. Supported storage drive types: HDD & SSD. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 5 (802.11ac), Bluetooth version: 5.0. Cooling type: Active. Power supply: 65 W

Resilient and Pioneering
Spirit of Your Business
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.

Small But Powerful
Compact and versatile, this 0.66-liter mini PC is ideal for small workspaces, home entertainment sets, and a variety of industries.

With built-in UHD Graphics, 4 cores, and 4 threads, Cubi N save more power and energy source while satisfying your usage requirements with only 6W TDP.

Support up to Three Displays in 4K Resolution
With HDMI™, DP, and Type-C port, Cubi N allows you to extend to three monitors to preview your E-commerce content & data at home or in the office, enhancing your efficiency.

Limitless Wireless Connection
MSI Cloud Center + Wifi
Fast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS devices faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.

HW TPM 2.0 Support
dTPM 2.0 (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions.You can store your sensitive data & passwords by encryption keys for advanced security.

USB 3.2 Type-C Connect All You Need
Type C offers a universal solution for connecting devices with high-speed data transfer, display capabilities, and charging functionality. It's a game-changer for device compatibility and connectivity, enabling easy data transfer and device powering.

Processor

Processor manufacturer: Intel
Processor family: Intel® Pentium®
Processor model: N100
Processor cores: 4
Processor threads: 4
Processor boost frequency: 3.4 GHz
Feature: Built-in processor
Processor cache: 6 MB
Processor cache type: Smart Cache

Memory

Memory slots type: SO-DIMM
Number of memory slots: 1
Maximum internal memory: 16 GB
Supported memory clock speeds: 3200 MHz
Supported memory types: DDR4-SDRAM

Storage

Supported storage drive types: HDD & SSD
Storage drive sizes supported: M.2
Feature: NVMe
Number of storage drives supported: 2

Graphics

Feature: On-board graphics card
Graphics card family: Intel
On-board graphics card model: Intel® UHD Graphics
Discrete graphics card model: Not available

Performance

Motherboard chipset: Intel SoC
Optical drive type: No
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0

Network

Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: Wi-Fi 5 (802.11ac)
WLAN controller model: Intel Dual Band Wireless-AC 9462
Feature: Ethernet LAN
Feature: Wi-Fi
LAN controller: Realtek RTL8111H
Feature: Bluetooth
Bluetooth version: 5.0

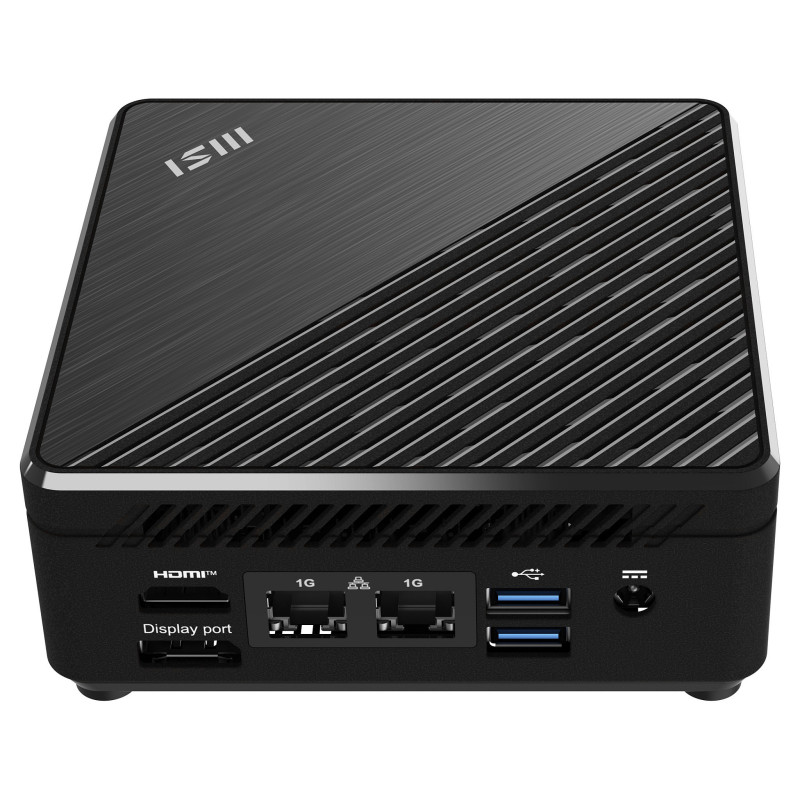

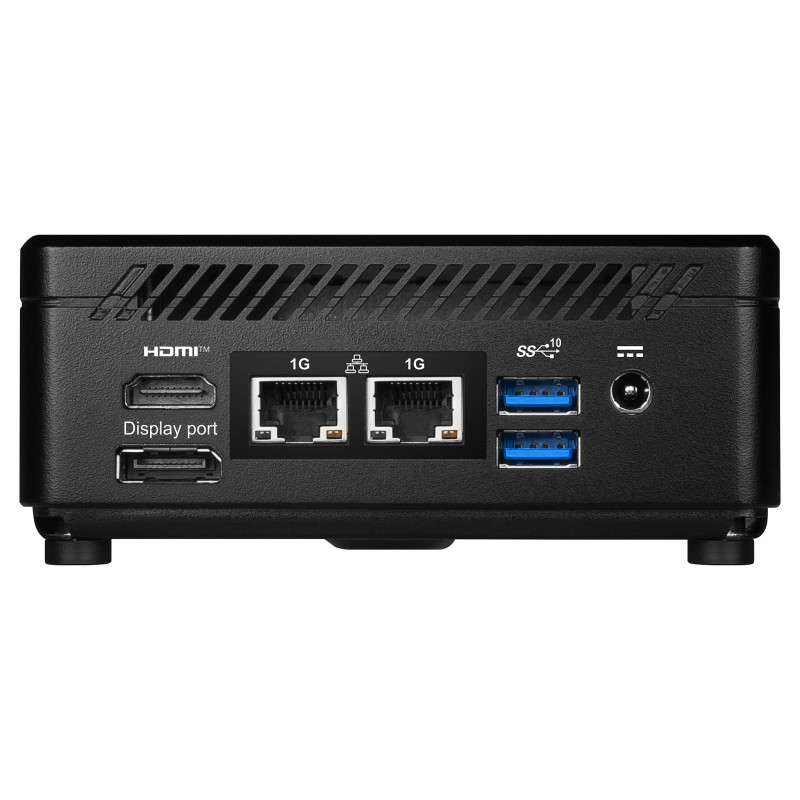

Ports & interfaces

USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Feature: Combo headphone/mic port
Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack

Design

Chassis type: 0.69L sized PC
Product colour: Black
Cooling type: Active
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Product type: Mini PC barebone
Market positioning: Business

Certificates

Certification: FCC(Class B)CB/CEUL(CUL)BSMIVCCIRCM(C-Tick)

Software

Operating system installed: No

Power

Power supply type: External AC adapter
Power supply: 65 W

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 85%
Storage relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 124 mm
Depth: 124 mm
Height: 53.7 mm
Weight: 540 g
Package width: 221 mm
Package depth: 506 mm
Package height: 469 mm
Package weight: 1.39 kg

Other features

Number of processors installed: 1
Warranty period: 2 year(s)
