Chieftec Visio GM-30B-TG-OP Black

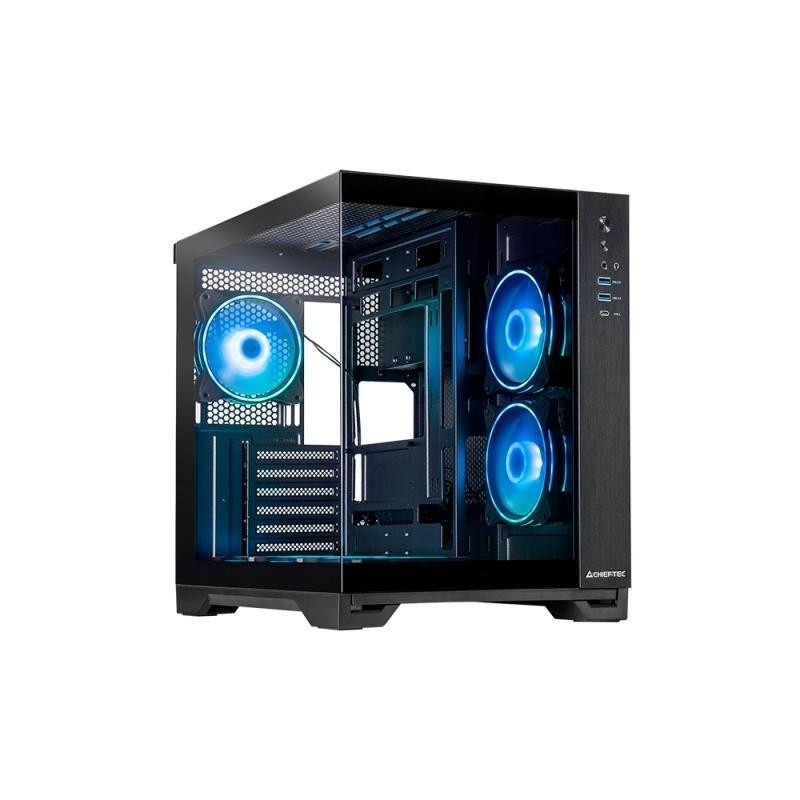

The CHIEFTEC Visio features tempered glass panels on both the left and front sides, incorporating a dual-chamber layout to accommodate the latest back-connect motherboards (ASUS BTF and MSI Project Zero compatible). This design streamlines cable management for a clean interior view and unobstructed airflow.



The refined internal layout supports the mounting of 360mm radiators on the top and bottom, 240mm radiators on the motherboard side, and CPU tower coolers up to 175mm in height. High-end GPUs up to 410mm can be easily accommodated, thanks to its spacious and well-ventilated conguration.



The case comes with six pre-installed 120mm A-RGB fans and a control hub for motherboard synchronization of A-RGB and PWM fan speed control. 5 of these fans are designed with reverse airflow fan blades to enable the optimum intake on the sides and the bottom without sacricing on the aesthetics. Designed with gamers in mind, the CHIEFTEC Visio provides the opportunity to create a distinctive build.


  • Tempered glass front & side panels

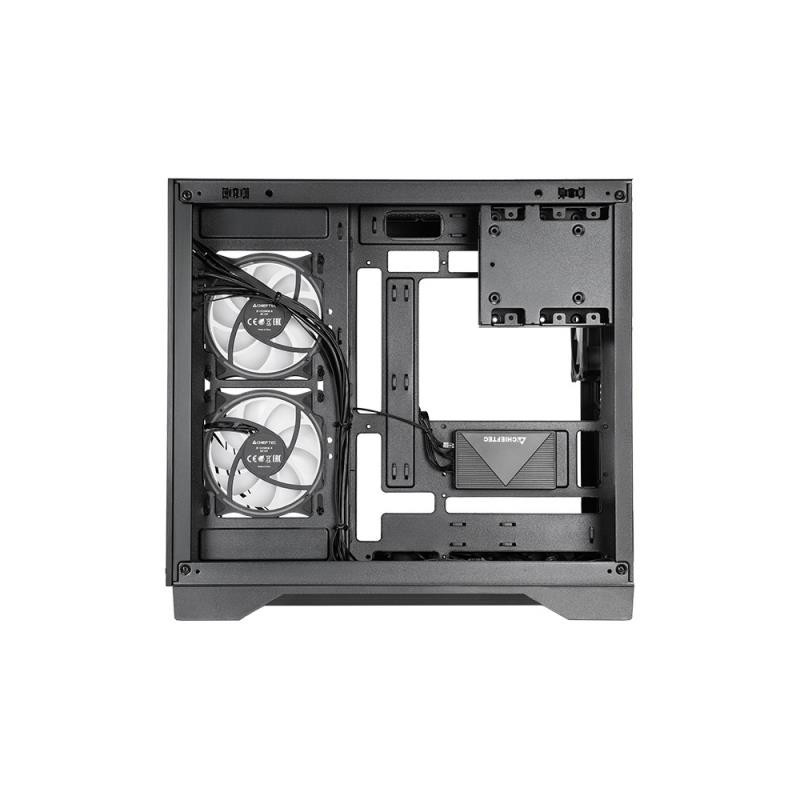

  • Dual-chamber design

  • Compatibility with back-connect motherboards

  • 6 x 120mm A-RGB fans pre-installed

  • A-RGB control hub with M/B sync and PWM fan speed control

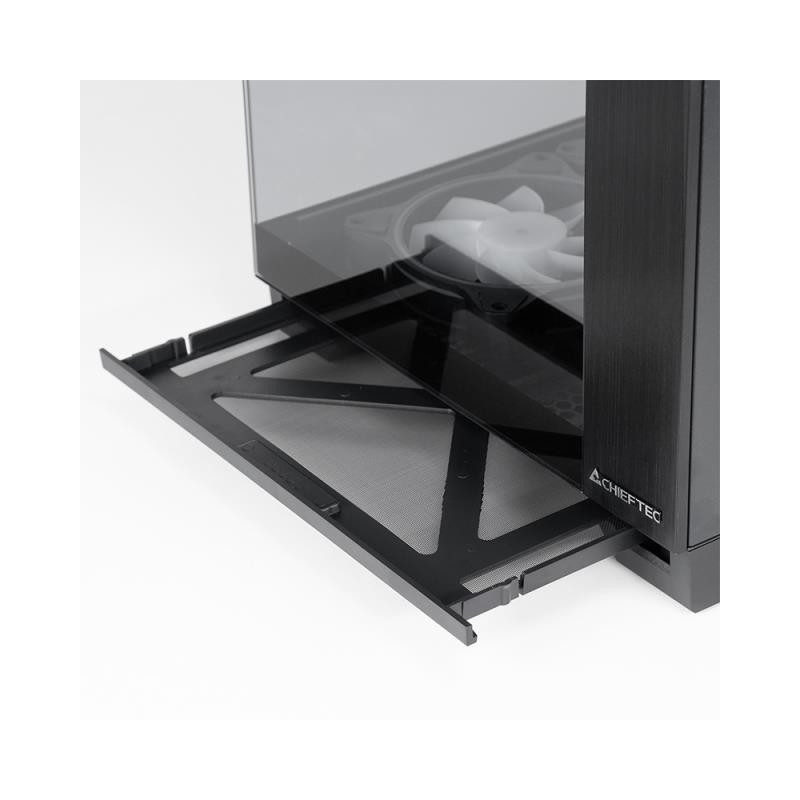

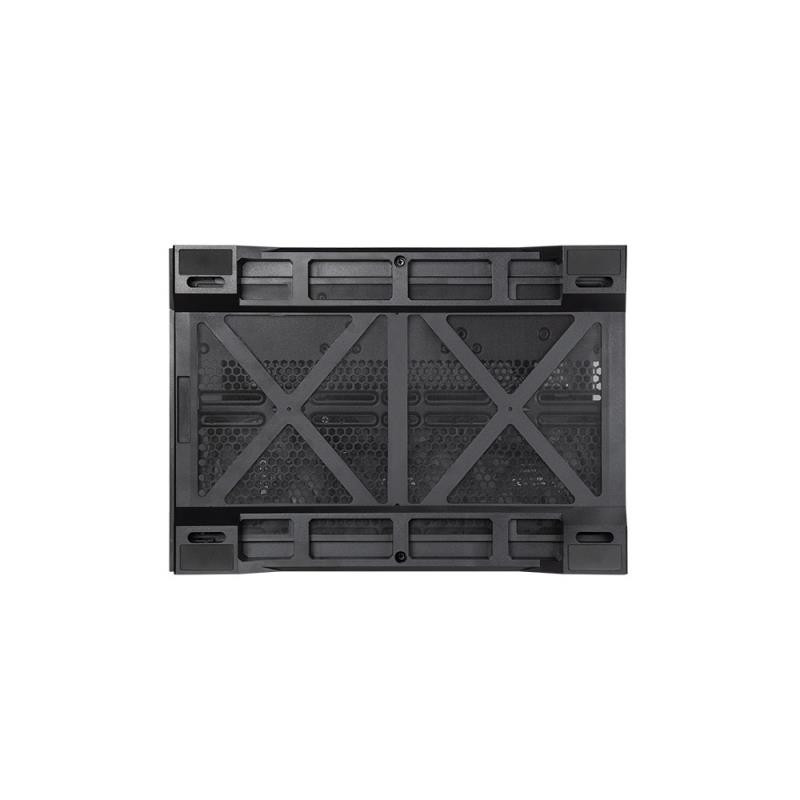

Anti-dust filter Yes
Bottom fans installed 3x 120 mm
Case product features Transparent panel
Combo headphone/mic port Yes
Depth 430 mm
Fan speed control Yes
Form factor Cube
Full-Height expansion slots 6
HDD/SSD combo cage Yes
Height 390 mm
Illumination Yes
Illumination colour Multi
Liquid cooling capability Yes
Maximum CPU cooler height 175 mm
Maximum graphics card length 410 mm
Maximum PSU length 200 mm
Model GM-30B-TG-OP
Model name Chieftec Visio GM-30B-TG-OP Black
Number of 2.5" bays 2
Number of 3.5" bays 2
Number of expansion slots 6
Number of internal 3.5" bays 2
Number of storage drives supported 4
Power supply included No
Product colour Black
Product Net Weight 7.3 kg
Rear fans installed 1x 120 mm
Shipping Box Depth 48 cm
Shipping Box Height 51.5 cm
Shipping Box Weight 8.6700000763 kg
Shipping Box Width 37 cm
Side fans installed 2x 120 mm
Side window Yes
Suitable for Gaming
Summary Chieftec Visio GM-30B-TG-OP schwarz Tempered Glass x 2. Form factor: Cube, Type: PC, Product colour: Black. Side fans installed: 2x 120 mm, Rear fans installed: 1x 120 mm, Bottom fans installed: 3x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 295 mm, Depth: 430 mm, Height: 390 mm
Supported HDD sizes 2.5/3.5 "
Supported motherboard form factors ATX/micro ATX
Tempered glass panel(s) Yes
Top radiator sizes supported 240/280/360 mm
Type PC
Unit Box Height 0.515
Unit Box Length 0.48
Unit Box Width 0.37
Unit Calculated Volume 0.09146 cubm
Unit Calculated Weight 8.67 kg
Units per Shipping Box 1
USB 3.0 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Vendor Homepage https://www.chieftec.eu/products-detail/589/GM-30B-TG-OP
Weight 7300 g
Width 295 mm
