Case, CHIEFTEC, Pro mini, MidiTower, MicroATX, MiniITX, Colour Black, AZ-01B-OP
Product reference:
2-0753263078674
Case, CHIEFTEC, Pro mini, MidiTower, MicroATX, MiniITX, Colour Black, AZ-01B-OP
Product reference:
2-0753263078674
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days
Not available

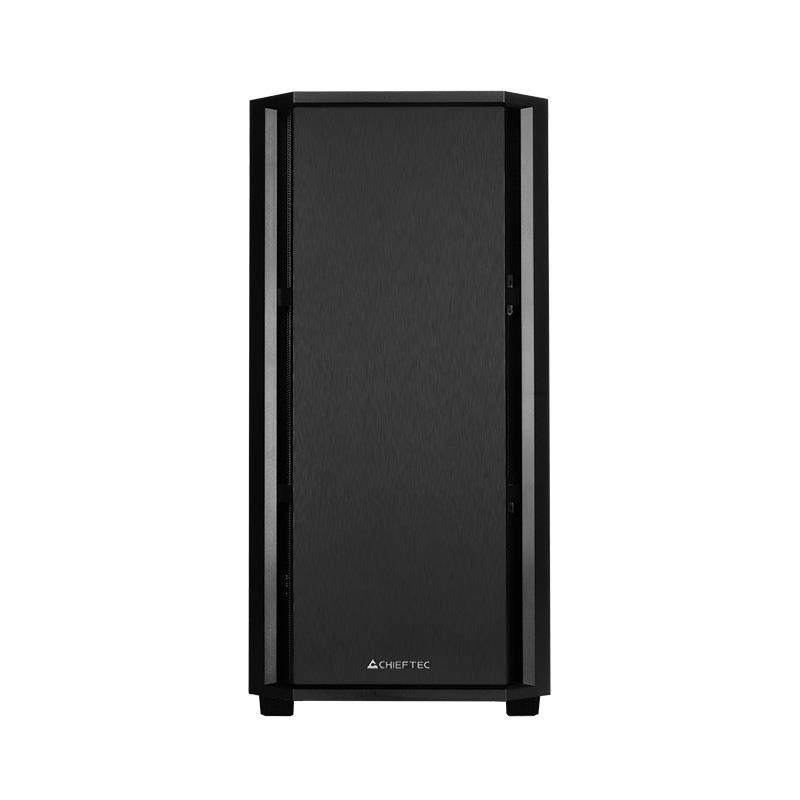

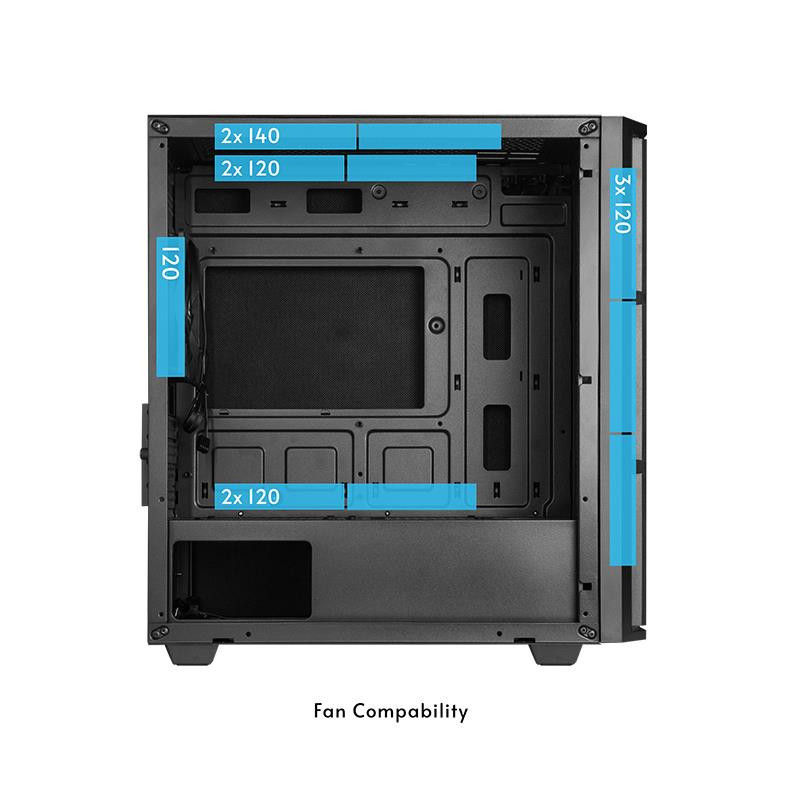

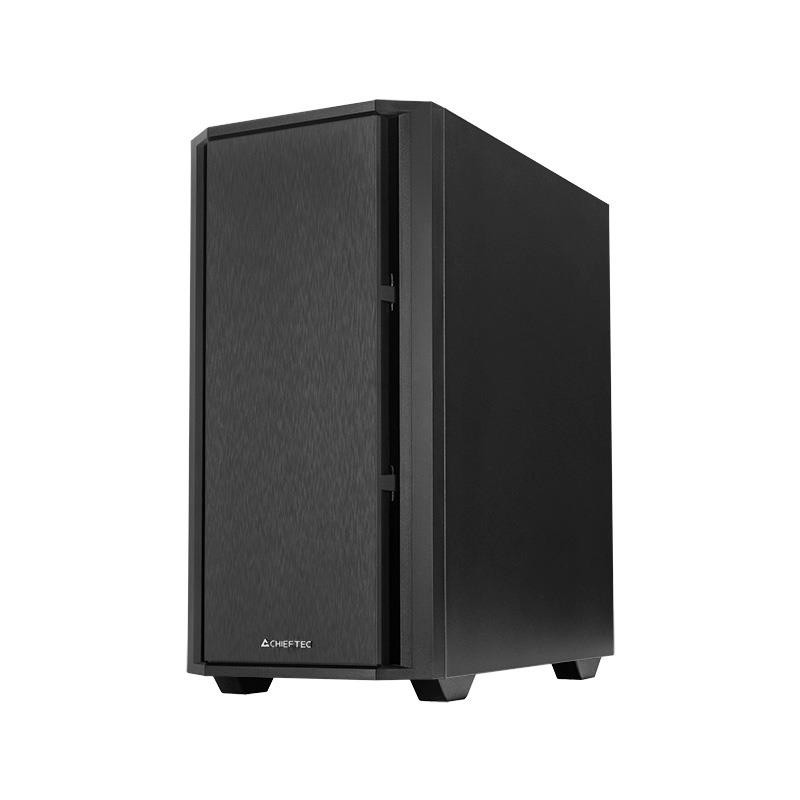

The CHIEFTEC Pro Mini presents a modern m-ATX mini tower PC case with a timelessly elegant, brushed front panel, complemented by an interior designed with a modern layout for optimal hardware and cooling compatibility. The CHIEFTEC Pro Mini features added sound-absorbing material on the side and front panels to provide an optimized noise level, while a total of 8 possible fan mounts provides flexible cooling configurations. The Pro Mini is ready to deliver customers an ideal combination of performance, noise and quality design.
- Elegant & modern design

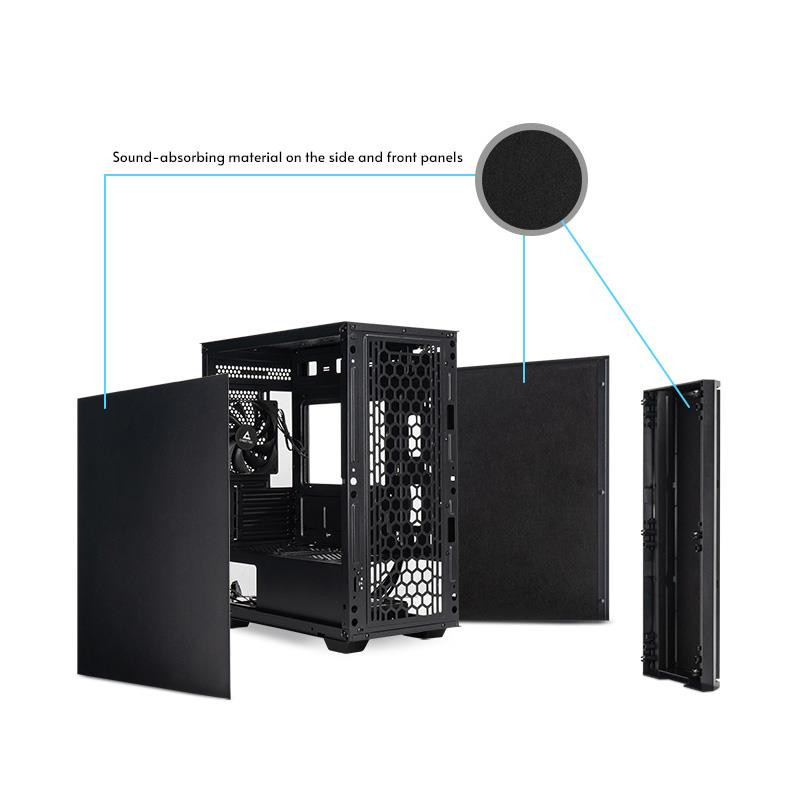

- Sound-absorbing material
- 1x 120mm PWM fan pre-installed
| Anti-dust filter | Yes |
| Audio input | Yes |
| Audio output | Yes |
| Depth | 360 mm |
| Form factor | Mini Tower |
| Front fans diameters supported | 120/140 mm |

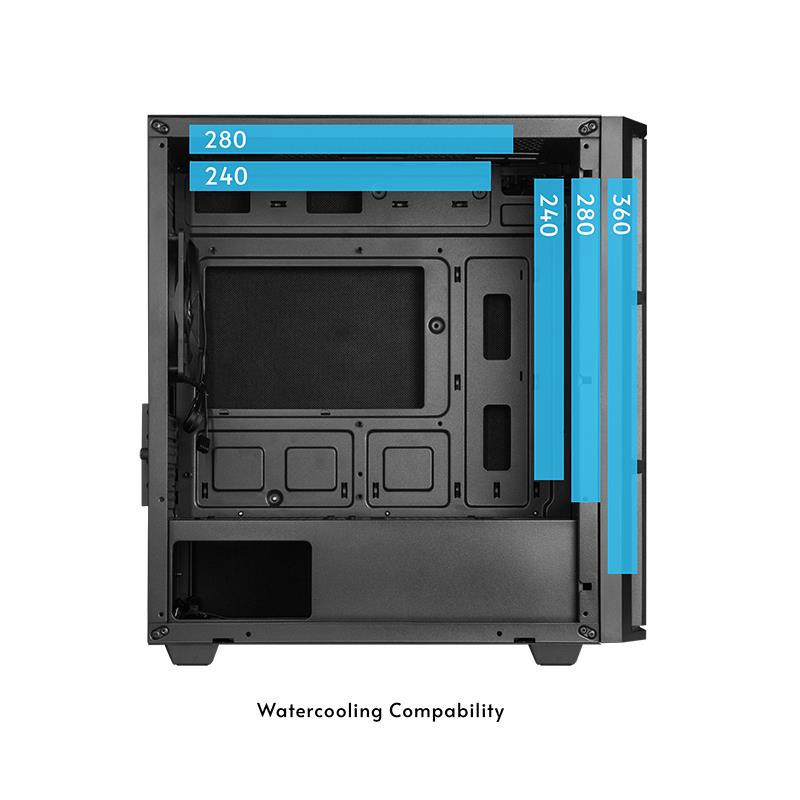

| Front radiator sizes supported | 240/280/360 mm |
| Full-Height expansion slots | 4 |
| Height | 420 mm |
| Illumination | No |
| Liquid cooling capability | Yes |
| Material thickness | 0.6 mm |
| Maximum CPU cooler height | 165 mm |
| Maximum graphics card length | 330 mm |
| Maximum PSU length | 180 mm |
| Model | AZ-01B-OP |
| Model name | AZ-01B-OP |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 1 |
| Number of expansion slots | 4 |
| Number of front fans supported (max) | 3 |
| Number of internal 3.5" bays | 1 |
| Number of rear fans supported (max) | 1 |
| Number of storage drives supported | 3 |
| Number of top fans supported (max) | 2 |
| On/off button | Yes |
| Package weight | 6000 g |
| Power supply included | No |
| Product colour | Black |
| Rear fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Reset button | Yes |
| Side window | No |
| Summary | Chieftec AZ-01B-OP. Form factor: Mini Tower, Type: PC, Product colour: Black. Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 212 mm, Depth: 360 mm, Height: 420 mm. Package weight: 6 kg |
| Supported HDD sizes | 2.5/3.5 " |

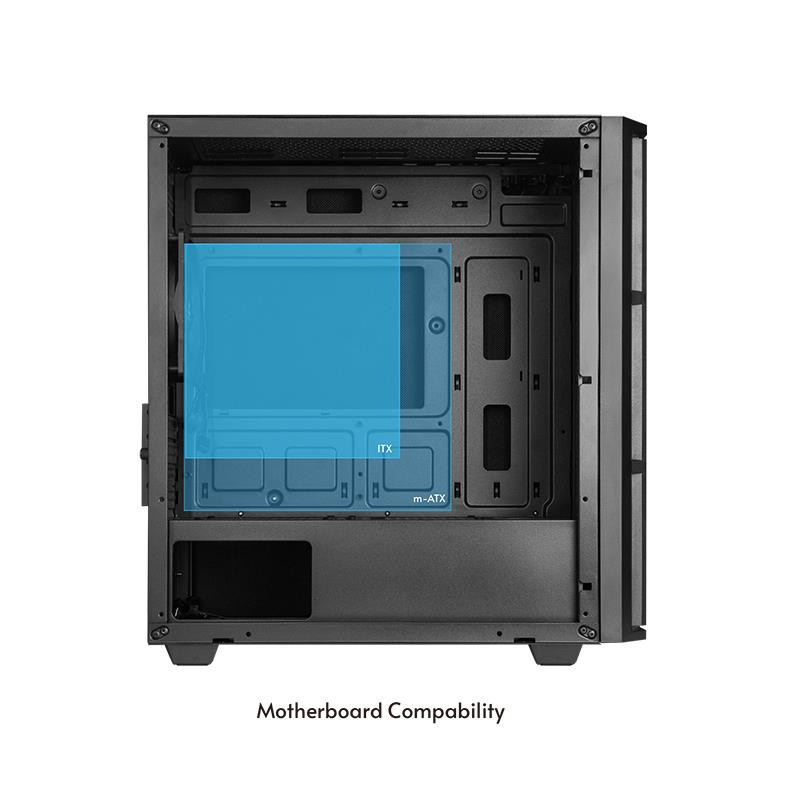

| Supported motherboard form factors | micro ATX/Mini-ITX/uATX |
| Tempered glass panel(s) | No |
| Top fans diameters supported | 120/140 mm |
| Top radiator sizes supported | 240/280 mm |
| Type | PC |
| Unit Box Height | 0.48 |
| Unit Box Length | 0.48 |
| Unit Box Width | 0.275 |
| Unit Calculated Volume | 0.06336 cubm |
| Unit Calculated Weight | 5.9 kg |
| Units per Shipping Box | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.0 | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Vendor Homepage | https://www.chieftec.eu/products-detail/587/AZ-01B-OP |
| Weight | 5150 g |
| Width | 212 mm |
