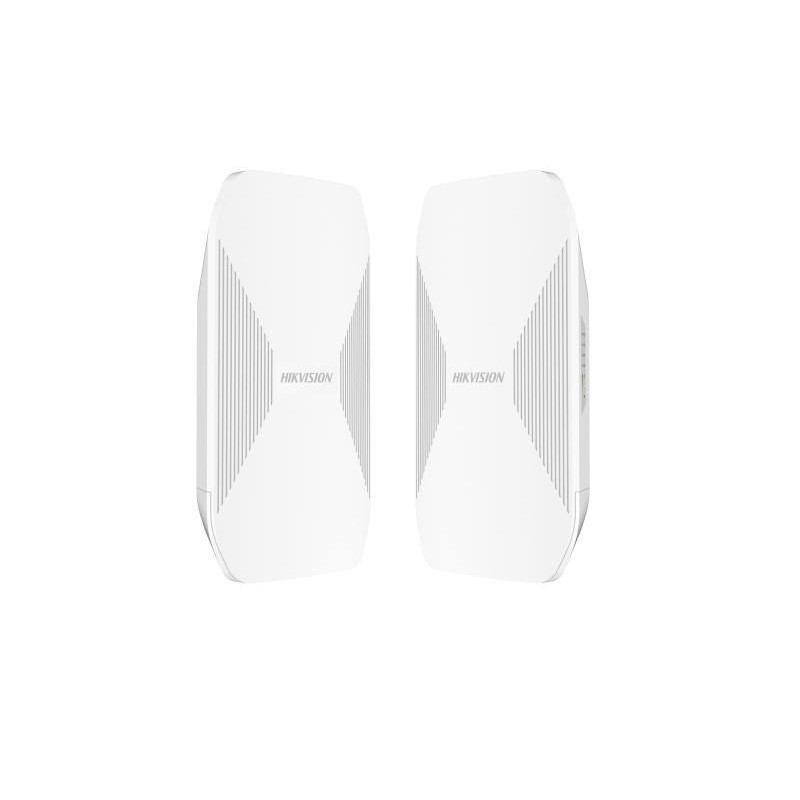

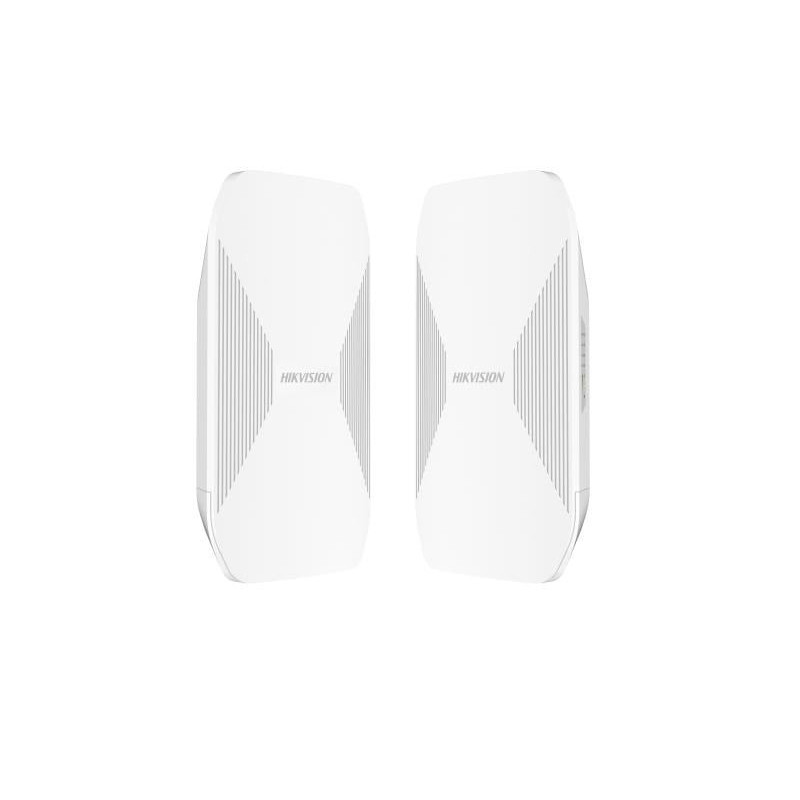

Wireless BRIDGE transmission Hikvision DS-3WF5000-SI-5ACG / 2P (5GHz, 867Mbps, 5km, 2 pcs.)

Product reference: 26-6936422174361

Wireless BRIDGE transmission Hikvision DS-3WF5000-SI-5ACG / 2P (5GHz, 867Mbps, 5km, 2 pcs.)

Product reference: 26-6936422174361

You have 3 products in compare list, please remove someone and try again

Add to compare

19646 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Approvals
Certification of chemical components CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Radio EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
Security CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)

General information
Total weight 2.76 kg (6.08 lb)
Protection against dust and moisture IP55
Installation Mode Wall Mounting,Pole Mounting
Net weight 0.54 kg (1.19 lb) per device
Packaging Dimensions (W × H × D) 341 mm × 360 mm × 100 mm (13.43" × 14.17" × 3.94")
In the package Wireless Bridge x 2, PoE Adapter (48.0V, 1.0A) x 2, Power Cord x 2, Universal Joint Nut x 2, Universal Joint x 2, Mounting Bracket x 2, Screw Pack x 2, Hose Clamp x 2, Quick Start Guide x 1, Regulatory Compliance and Safety Information x 1
Packing Method Packing in pairs
Energy consumption 3.5 W for typical (1-ch 2MP IPC), Max. 7.7 W
Product dimensions (W × H × D) 134.21 mm × 235.00 mm × 58.73 mm (5.28'' × 9.25'' × 2.31'')
Storage humidity 5% to 95% (no condensation)
Storage temperature -40 °C to 80 °C (-40 °F to 176 °F)
Operating humidity 5% to 95% (no condensation)
Operating temperature -30 °C to 65 °C (-22 °F to 149 °F)

Hardware Parameters
LED indicator Power indicator, LAN indicator, Signal intensity indicator
Network interface 3 × 100/1000 Mbps RJ45 ports
Power source 48V PoE/12~24V DC; Check the physical interface image below for more details.
Reloading Hardware reset button

PoE
Max PoE port power 28W
PoE Distance 100 m
PoE port AP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT, LAN3 802.3 af PoE OUT
PoE power budget 40W

Software features
Application Function IFM, IPM, DFS, TPC
Channel Selection Auto/manual selection
Channel width 20/40/80MHz
HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Reboot device2. Restore device3. Display the topology information4. Display the connection status between AP and CPEs, including signal intensity, background noise, sending receiving rate. 5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power6. Bridge alignment7. Spectrum scanning8. PoE output management
Management Method HCP,Web,iVMS-4200,HPP
Protocols NTP (network time synchronization), SADP (auto search for IP address), HTTPS/HTTP (web management), SSH (debugging)
Security Mechanism Wireless network name hidden
Security Mode WPA2-PSK
System log Syslog, Control center information
Upgrade Web,iVMS-4200,HCP,HPP

Wireless settings
Antenna Angle (H) Beamwidth [3 dB] 32° (V) Beamwidth [3 dB] 17°
Antenna amplification 16 dBi
Max. Transmission Rate of Air Interface ≤ 867Mbps
Receiving Sensitivity -88 ±2dBm@AC80-MCS0
Throughput Rate PTP: 290 Mbps/1 KM(AC80), 270 Mbps/3 KM(AC80), 250 Mbps/5 KM(AC80); PTMP(1 to 8): 150Mbps/5KM(AC80)
Transmission power 29 dBm @11ac 80MHz MCS0 (Note: Transmitting power may vary with local regulations.)
Wireless communication standard IEEE 802.11/a/n/ac
Working Frequency Band 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz

Weight

2.261 kg
