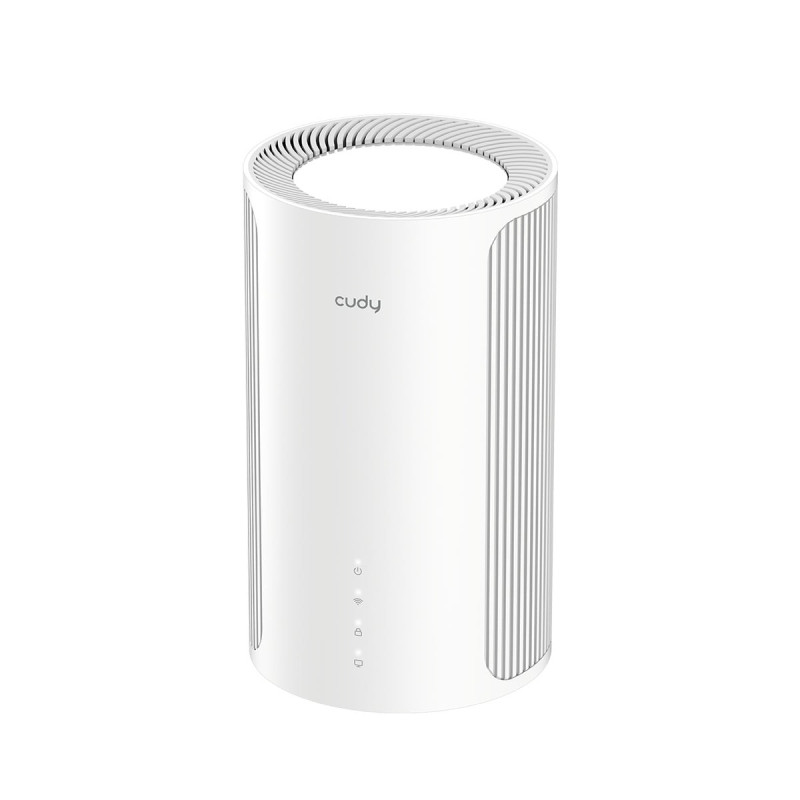

Wi-Fi Mesh system Cudy M11000 1.0 (2 pcs.)
Product reference: 26-6971690793623
  • Type: Wi-Fi Mesh System (2 pcs)
  • Brand: Cudy
  • Model: M11000 (1.0)
  • Color: White
  • Technology: Wi-Fi 7 (Tri-Band)
  • Frequency bands: 6 GHz - 5765 Mbps, 5 GHz - 2402 Mbps, 2.4 GHz - 574 Mbps
  • MIMO: 2×2
  • Memory: Flash 128 MB, RAM 512 MB
  • Channel width: 160 MHz
  • Security: WPA/WPA2/WPA3
  • Range: Up to 260 m
  • Connectors: 3× 2.5G RJ45 LAN, 1× 2.5G WAN
  • Operating temperature: 0 40 °C
  • In stock
Wi-Fi Mesh system Cudy M11000 1.0 (2 pcs.)

Wi-Fi Mesh system Cudy M11000 1.0 (2 pcs.)

Product reference: 26-6971690793623
  • Type: Wi-Fi Mesh System (2 pcs)
  • Brand: Cudy
  • Model: M11000 (1.0)
  • Color: White
  • Technology: Wi-Fi 7 (Tri-Band)
  • Frequency bands: 6 GHz - 5765 Mbps, 5 GHz - 2402 Mbps, 2.4 GHz - 574 Mbps
  • MIMO: 2×2
  • Memory: Flash 128 MB, RAM 512 MB
  • Channel width: 160 MHz
  • Security: WPA/WPA2/WPA3
  • Range: Up to 260 m
  • Connectors: 3× 2.5G RJ45 LAN, 1× 2.5G WAN
  • Operating temperature: 0 40 °C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
35017 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General characteristics
  • Model M11000 (BE11000)
  • Wi-Fi standard Wi-Fi 7 (802.11be)
  • CPU Qualcomm IPQ5322, 1.5 GHz Quad-Core ARM Cortex-A53
  • Flash/ROM 128MB (1Gbit) NAND
  • RAM 512MB (4Gbit) DDR4
  • Wi-Fi Speed ​​(6 GHz) 5765 Mbps
  • Wi-Fi Speed ​​(5 GHz) 4324 Mbps
  • Wi-Fi Speed ​​(2.4 GHz) 688 Mbps
  • Wi-Fi Streams 2×2 MIMO on all bands (6 GHz, 5 GHz, 2.4 GHz)
  • Antenna Configuration 6× fixed antennas
  • Antenna amplification 6 GHz: 4 dBi, 5 GHz: 5 dBi, 2.4 GHz: 5.5 dBi
  • High-Power FEM 6 GHz: 2× high-power, 5 GHz: 2× high-power, 2.4 GHz: 2× standard
  • Max Coverage 2-pack: 250 m² (2700 sq ft), 3-pack: 350 m² (3700 sq ft)
  • Maximum range 260 m (853 ft)
  • Wi-Fi features MLO, 4K-QAM, 320 MHz bandwidth, Multi-RUs, Beamforming, OFDMA, MU-MIMO, BSS Coloring
  • Max Clients 768 (recommended 300)
  • Max Channel Width 320MHz
  • Wi-Fi security WPA/WPA2/WPA3
  • Guest Network Supported (2.4 GHz, 5 GHz, 6 GHz)
  • Ethernet ports 4× 2.5G RJ45 (1× WAN + 3× LAN)
  • Power input DC 12V 2A
  • Energy consumption Max: 22W, Idle: 12W
  • Installation Type: Desktop, Dimensions: Φ116×202 mm (4.57×7.95 inches)
  • Operating temperature 0 ~ 40 (32 ~ 104)
  • Storage temperature -40 ~ 70 (-40 ~ 158 )
  • Humidity Operating: 10% ~ 90% non-condensing, Storage: 5% ~ 95% non-condensing
  • Mesh System Cudy Mesh with support for Wireless and Wired Backhaul
  • Operation Modes Wi-Fi Router, Access Point, Range Extender, WISP, Client
  • WAN types DHCP, Static IP, PPPoE, PPTP, L2TP
  • IPv6 Support Dynamic (SLAAC/DHCPv6), Static, Passthrough, 464XLAT, MAP-E, DS-Lite
  • VPN support Client Server: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
  • Firewall SPI Firewall, DoS Protection, DMZ, Port Forwarding, Port Triggering
  • Application Layer Gateway SIP, FTP, TFTP, H323, RTSP, IGMP Proxy/Snooping
  • Parental control Content filtering, Internet schedule, Online time control
  • Quality of Service (QoS) Per-user rate limiting, device prioritization
  • Management Cloud app, Web UI (HTTPS), Local control, Firmware OTA updates
  • Diagnostic tools Ping, Traceroute, NSLookup, System Log
  • LED indicators System, LAN, Wi-Fi, Mesh
  • Languages ​​Supported 30+ languages ​​including English, Spanish, German, French, Chinese, etc.
  • Certificates FCC, CE
  • Package contents Main unit, Power adapter, Ethernet cable, Installation guide

Manufacturer codeCUDYM110002P
ManufacturerCudi
Weight0.853 kg
