Tenda O1-5G Outdoor CPE 5 GHz WiFi-AC 867 Mb / s, 9 dBi, IP65, pasívny PoE rozbočovač + adaptér

Tenda O1-5G is a wireless external Wi-Fi CPE unit with support for access point modes (Access Point) a Station, supports the 802.11a/n/ac standard in the 5 GHz band with a speed of up to 867 Mb/s. Contains 1x LAN port, supports passive PoE or power adapter (power adapter and power adapter are included in the package). VPN Pass-Through, SSID Hidden, Transparent Bridge are other technologies. O1-5G supports many types of security: 64/128 WEP, WPA-PSK, WPA2-PSK, WPA WPA2-PSK, WPA, WPA2, the option to order the broadcast of a wireless network name (SSID), setting the output power and many other advanced network functions. The device is equipped with an antenna with dual polarization with a signal of 9 dBi. Of course, there is increased resistance to environmental influences and a degree of protection IP65.
Main parameters Tenda O1-5G
- WiFi 5 GHz 867 Mb/ss dosahom 1 km+
- Antenna with dual polarization 9 dBi, pokrytie 30° horizontal, 30° vertical
- External waterproof construction IP65
- Two modes of operation: Access Point, Station
- Point to Point, Point to MultiPoint
Tenda O1-5G supports two operating modes
Prístupový bod - Access Point - in this mode, the O1-5G is connected to the network using an ethernet cable and transmits a wireless network.
The station - O1-5G is connected to the WiFi network and provides connectivity to the LAN port, which contains, and the connection of other devices using the cable. The other WiFi network is no longer connected.
Technical parameters
WiFi 802.11a/n/ac 867 Mb/s 5 GHz
Power supply: passive PoE power supply or power adapter, power adapter and power adapter included in the package 12 V DC 1 A
Passive PoE: using PoE/LAN (piny 4.5 +, piny 7.8 -), voltage: 9-13 V DC, distance unit from rozbočovača up to 60 m
Support for active power supply PoE: Nie
Prevádzkové regimes: AP - access point / stanica
Maximum performance and sensitivity: 11a 6Mbps -92dBm±1,5dBm, 11n MCS7 HT20 -72dBm±1,5dBm, 11ac MCS9 HT80 -64dBm±1,5dBm_
Power setting: áno, po 1 dBm
VPN Pass-Through: L2TP, PPTP
Degree of protection against weathering effects: IP65
Energy consumption: 4.7 W
Antenna - polarization: duálna polarizácia
Antenna - gain: 9 dBi
Antenna - pokrytie: 30° horizontal, 30° vertical, 30° elevácia
LED indication: PoE/LAN, LED1, LED2
Security 64/128 WEP, WPA-PSK, WPA2-PSK, WPA&WPA2-PSK, WPA, WPA2, isolation of WiFi clients
Umisjenanie na mastjar aj na stenu

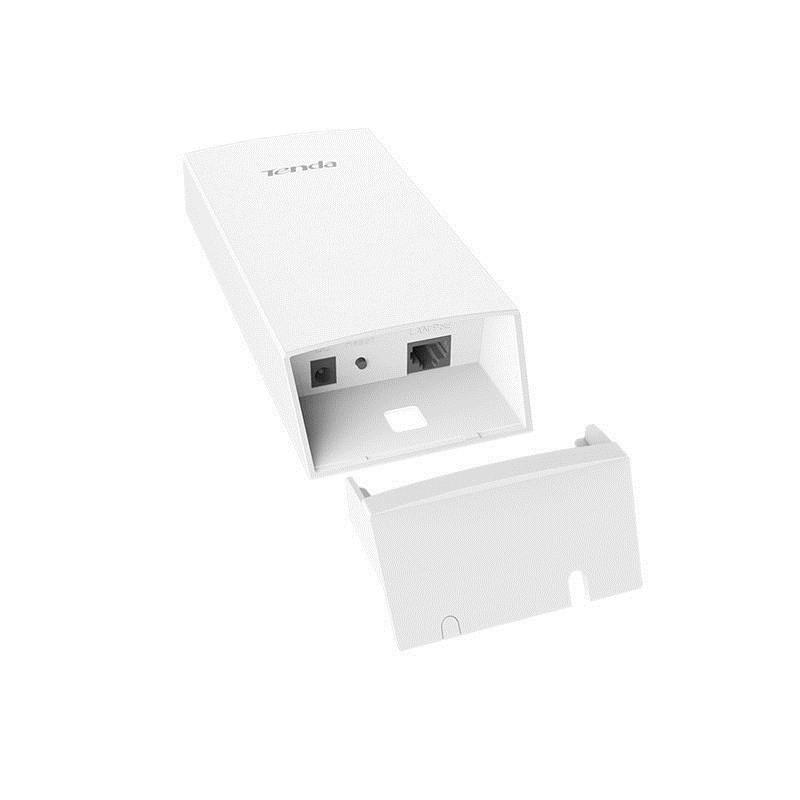

Porty: 1x LAN 10/100 Mb/ss podporou pasívneho PoE, another power supply connector
Centralized management: using PC software "CPE Assistant"
Broadband: 20/40/80 MHz
Network diagnostics: Ping, Traceroute, Signal Scan
Other functions: Vypnutie/Zapnutie WiFi, Hidden SSID, Isolation SSID, Isolation of wireless clients, Control of access to a wireless network, Limitation of clients with weak signals, Support WMM, Support APSD, Transparent bridge, Remote web access, Planned restart, Time limit pages, Ping Watchdog
Administration: Restart, Obnovenie továrenských settings, Systemové protocols, Aktualizácia firmvéru, Setting the date, Zálohovanie/obnovenie konfiguratione, Správa průžuje
Certifikacia: FCC/CE/RoHS
Tlakidlá: 1x Reset
Rozmery: 132 x 72 x 46 mm
Prevádzková temperature: -30 °C to +55 °C
Package contents
1x Tenda O1-5G

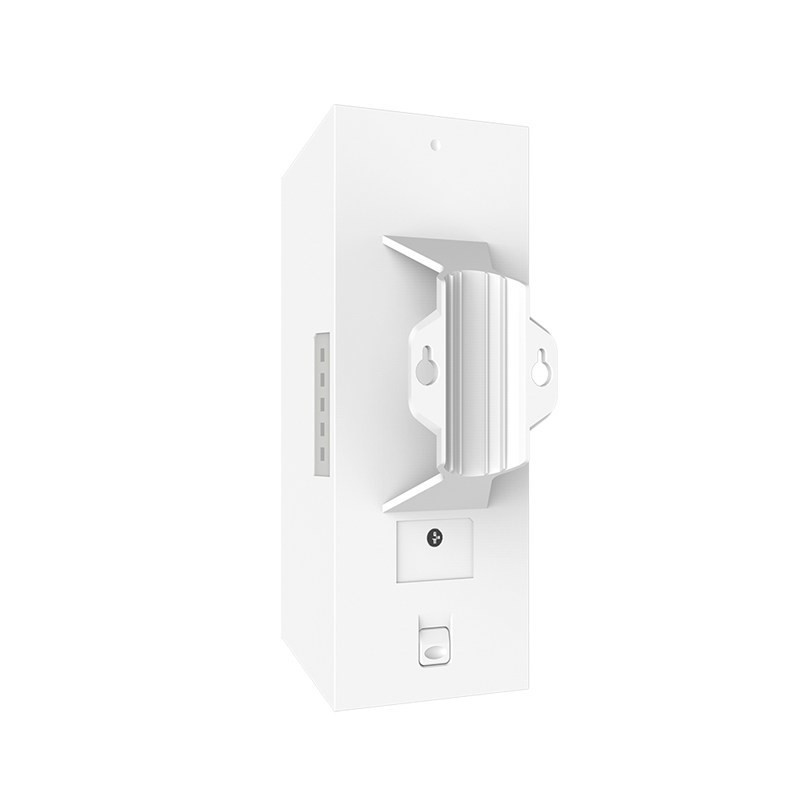

1x holder for mounting on the pole on the wall
1x power adapter 12 V DC 1 A
1x pasívny PoE napájácí rozbočovač
1x stručný instačný úží (CZ, SK, PL)
1x accessories na upevnenie
