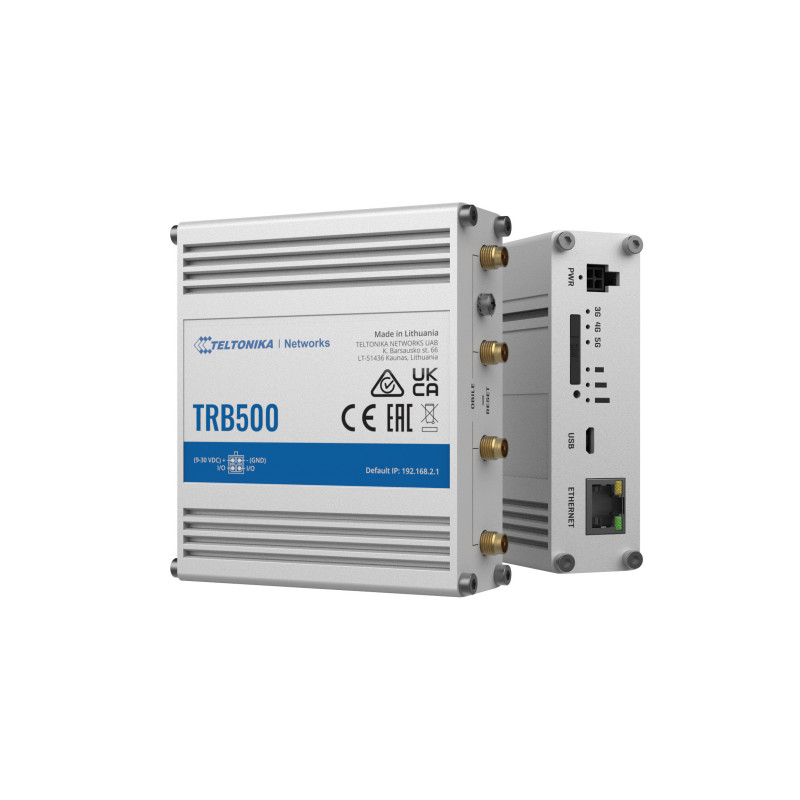

TELTONIKA industrial 5G network interface LTE TRB500

Product reference: 26-LTETRB500

You have 3 products in compare list, please remove someone and try again

Add to compare

41415 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Mobile connection
Mobile module 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) - LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G - 42 Mbps DL, 5.76 Mbps UL
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID.
SMS/Call SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/white list Operator black/white list
Group management Band lock, Used band status display
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Transfer Gateway assigns its mobile WAN IP address to another device on LAN

Internet
Internet protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
Route Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
Communication monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation
DDNS Supported > 25 service providers, others can be configured manually
SSHFS Possibility to mount remote file system via SSH protocol

Security
Authentication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
Burglary prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLANs Port and tag-based VLAN separation
Mobile quota control Set up custom data limits for SIM > card
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
GRE GRE tunnel
IPsec IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
PPTP, L2TP Client/Server services can run simultaneously, L2TPv3 support
SSTP SSTP client instance support
TUNNEL Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code
DMVPN Method of building scalable IPsec VPNs
WireGuard WireGuard VPN client and server support
ZeroTier ZeroTier VPN

Modbus TCP Slave
ID filtering Respond to one ID in range [1;255] or any
Remote access permission Allow access through WAN
Custom registers MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality

Modbus TCP master
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

MQTT gateway
Gateway Allows sending commands and receiving data from MODBUS Master through the MQTT broker

Monitoring and management
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log
PHOTO Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP traps
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)

IoT Platforms
Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulonimbus Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT Hub Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server

Settings
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
PHOTO Update FW
RMS Update FW/configuration for multiple devices
Remembering settings Update FW without losing current configuration

Exits/Entrances
Configurable I/O 2 x Configurable Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 40 V detected as logic high. Open collector output, max output 30 V, 300 mA
Output control HTTP POST/GET, Schedule
Events SMS, EMAIL
I/O juggler Allows setting certain I/O conditions to initiate event

System parameters
Connectors 4-pin industrial DC power socket
Input voltage range 9 - 30 VDC, reverse polarity protection, surge protection > 33 VDC 10us max
Energy consumption Idle: <3W, Max <6W

Physical interfaces (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Network 1 x RJ45 port, 10/100/1000 Mbps
I/Os 2 x Configurable I/O pins on 4-pin power connector
USB 1 x Virtual network interface via micro USB
LED indicators 3 x connection type status LEDs, 3 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
SIM 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V
System parameters 1 x 4-pin DC power connector
Anntena 4 x SMA for Mobile
Reloading Reboot/User default reset/Factory reset button
Grounding Grounding screw terminal
