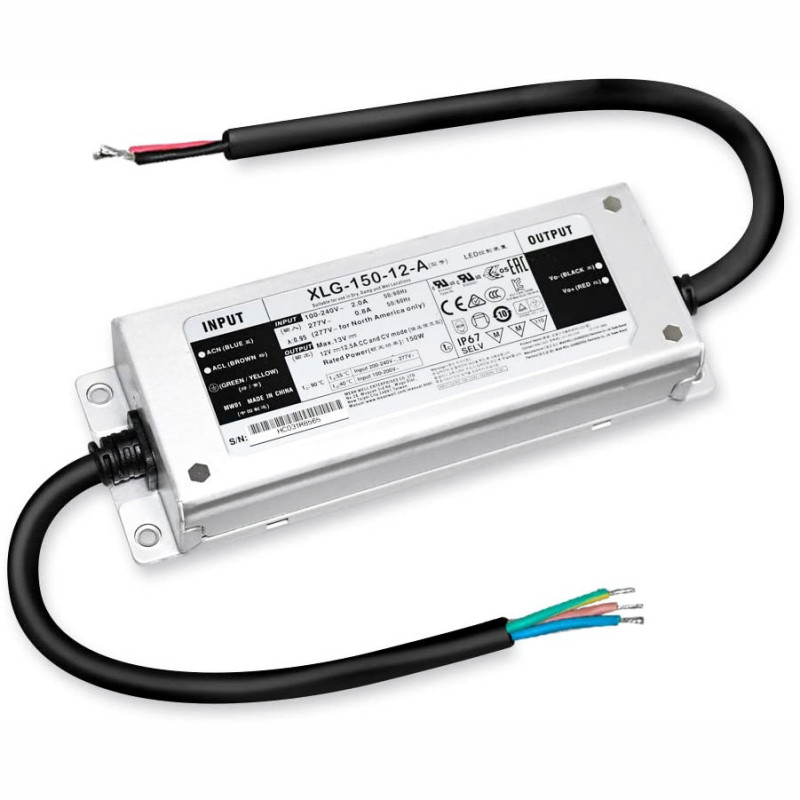

Switching power supply LED 150W 12V 12.5A IP67, dimmable, Mean well XLG-150-12-A
Product reference: 26-4711287457161
  • Type: Switching power supply for LED
  • Model: XLG-150-12-A
  • Output voltage: 12 V
  • Power: 150W
  • Current: 12.5 A
  • Protection class: IP67
  • Brand: MEAN WELL
Switching power supply LED 150W 12V 12.5A IP67, dimmable, Mean well XLG-150-12-A

Switching power supply LED 150W 12V 12.5A IP67, dimmable, Mean well XLG-150-12-A

Product reference: 26-4711287457161
  • Type: Switching power supply for LED
  • Model: XLG-150-12-A
  • Output voltage: 12 V
  • Power: 150W
  • Current: 12.5 A
  • Protection class: IP67
  • Brand: MEAN WELL
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
4029 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General information
  • Model XLG-150-12-A
  • DC voltage 12V
  • Rated current 12.5A
  • Current Adjustment Range 6.5 ~ 12.5A (adjustable via built-in potentiometer)
  • Rated power 150W
  • Voltage range 8.4~12V
  • Constant Current Region 13.5~18V
  • Noise and vibration (max.) 150mVp-p
  • Voltage error ±3.0%
  • Linear regulation ±0.5%
  • Load regulation ±2%
  • Efficiency (typ.) 91.5%
  • AC Input Range 100~305VAC; 142~431VDC
  • Alternating current strength (typ.) 1.8A / 115VAC; 1.0A / 230VAC; 0.8A / 277VAC
  • Inrush current (typ.) 60A at 230VAC (cold start)
  • Power factor PF ≥ 0.97 / 115VAC, PF ≥ 0.95 / 230VAC, PF ≥ 0.92 / 277VAC (at full load)
  • Total Harmonic Distortion (THD) <10% (@ load ≥ 50% at 115VAC/230VAC; ≥ 75% at 277VAC)
  • No-load power consumption < 0.5W
  • Standby power consumption < 0.5W (AB-Type, Dimming OFF)
  • Set-up, take-off time 500ms, 100ms / 230VAC; 1200ms, 100ms / 115VAC
  • Retention time (typ.) 10ms/230VAC; 10ms/115VAC
  • Surge protection 13.5 ~ 18V, shut down output, re-power on to recover
  • Over Current Protection 110 ~ 160%, hiccup mode, auto recovery
  • Short Circuit Protection Hiccup mode, auto recovery
  • Over Temperature Protection Shut down output, re-power on to recover
  • Operating temperature -40 ~ +80 (Tcase)
  • Max. Case Temperature 90
  • Operating humidity 20 ~ 95% RH non-condensing
  • Storage Temp., Humidity -40 ~ +80, 10 ~ 95% RH
  • Temperature coefficient ±0.06%/ (0 ~ 60 )
  • Vibration 10 ~ 500Hz, 5G 12min./1cycle, 72min. total (X, Y, Z axes)
  • MTBF 2269.5K hrs min. (Telcordia SR-332); 213.3K hrs min. (MIL-HDBK-217F, 25 )
  • Dimensions 180 x 63 x 35.5 mm (L x W x H)
  • Weight 0.8Kg
  • Packaging 16 pcs / 13.4Kg / 0.69CUFT
  • Certificates UL8750 (Type HL), UL879, CSA C22.2 No. 250.13-12, ENEC, EN61347-1, EN61347-2-13, EN62384, EN60335-1, IS15885(Part2/Sec13), EAC TP TC 004, IP67 approved
  • EMC emission EN55015 (CISPR15), GB/T 17743
  • EMC immunity EN61000-4-2 to 4-6, 4-8, 4-11; EN61547
  • Dimming Function 3-in-1 (0~10VDC, 10V PWM, resistance)
  • Max. number of power supplies in 16A fuse 4 units (Type B) / 8 units (Type C) at 230VAC
  • Features 150W constant power LED driver, wide input range (100~305VAC), constant voltage + constant current output, IP67 metal housing for outdoor use, surge protection 6KV/4KV, dim-to-off and isolated dimming circuit, > 50,000 hours lifetime, 5-year warranty

Manufacturer codeMWXLG15012A
ManufacturerMean Well
Weight0.731 kg
