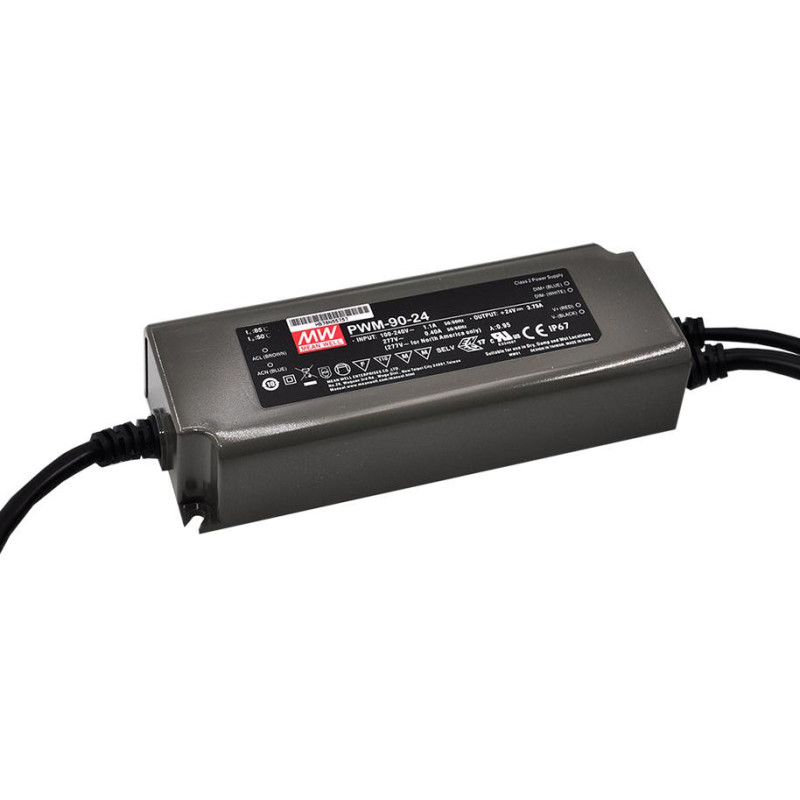

Switching power supply 24V 3.75A 90W IP67, dimmable
Product reference: 26-MWPWM9024
  • Type: Switching power supply
  • Model: PWM-90-24
  • Input voltage range: IN 90-305VAC / 127-431VDC
  • Voltage: 24V
  • Power: 90W
  • Current: 3.75A
  • Operating temperature: -40°C ÷ +70°C
  • Dimming: 3in1 (0-10V; PWM, Resistor)
  • Protection class: OVC II
  • Dimensions: 171 x 63 x 37.5 mm
  • IP rating: IP67
  • Brand: MEAN WELL
Switching power supply 24V 3.75A 90W IP67, dimmable

Switching power supply 24V 3.75A 90W IP67, dimmable

Product reference: 26-MWPWM9024
  • Type: Switching power supply
  • Model: PWM-90-24
  • Input voltage range: IN 90-305VAC / 127-431VDC
  • Voltage: 24V
  • Power: 90W
  • Current: 3.75A
  • Operating temperature: -40°C ÷ +70°C
  • Dimming: 3in1 (0-10V; PWM, Resistor)
  • Protection class: OVC II
  • Dimensions: 171 x 63 x 37.5 mm
  • IP rating: IP67
  • Brand: MEAN WELL
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
5497 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General data
  • Model PWM-90-24
  • Output voltage 24V DC
  • Rated current 3.75A
  • Rated power 90W
  • Output Type Constant Voltage PWM style
  • PWM Frequency 1.47kHz (Blank/DA type), 2.5kHz (DA2 type)
  • Dimming Function 3-in-1 dimming (0-10VDC, 10V PWM, Resistance)
  • Dimming Range 0 - 100%
  • Minimum Dimming Duty Cycle 0.15% (0% possible under specific conditions)
  • Input voltage range 90 - 305VAC / 127 - 431VDC
  • Frequency range 47 - 63 Hz
  • Power factor ≥0.98 @ 115VAC, ≥0.96 @ 230VAC, ≥0.92 @ 277VAC (full load)
  • Efficiency (typ.) 90.5%
  • AC Current 0.95A @ 115VAC, 0.5A @ 230VAC, 0.4A @ 277VAC
  • Inrush current 60A @ 230VAC (cold start)
  • Leakage current <0.25mA @ 277VAC
  • Overload protection 108-130% of rated power, hiccup mode, auto recovery
  • Surge protection 28 - 34V, shutdown, re-power to recover
  • Over Temperature Protection Shutdown, auto recovery
  • Hold-up Time 16ms @ 115/230VAC
  • Setup Time 500ms, Rise Time 80ms @ 115/230VAC
  • Operating Temperature (Tcase) -40°C to +85°C
  • Max. Case Temperature +85°C
  • Working humidity 20 - 95% RH (non-condensing)
  • Storage Temperature/Humidity -40 to +80°C / 10 - 95% RH
  • Isolation Voltage I/PO/P: 3.75kVAC
  • Insulation resistance ≥100MΩ @ 500VDC / 25°C / 70% RH
  • EMC standards EN55015, EN61000-3-2 (Class C), EN61000-3-3, EN61547, EAC TP TC 020
  • EMC immunity EN61000-4-2~6,8,11; surge immunity 2kV (Line-Line)
  • Safety Approvals UL8750, CSA C22.2 No.250.13-12, EN61347-1/-2-13, EN62384, BIS, GB19510.1/.14, IP67, EAC TP TC 004
  • DALI/DALI-2 Support DA/DA2 versions available with IEC62386 compliance
  • Housing IP67 rated plastic housing, fully encapsulated, Class II
  • Cooling Method Fanless (natural convection)
  • MTBF > 2.39M hours (Telcordia); > 224k hours (MIL-HDBK-217F @ 25°C)
  • Dimensions 171 × 63 × 37.5 mm (L × W × H)
  • Weight 0.77 kg; Packing: 18 pcs / 14.9 kg / 0.97 CUFT
  • Wiring AC Input Brown (L), Blue (N)
  • Wiring DC Output Red (+V), Black (-V)
  • Wiring Dimming Purple (DIM+), Pink (DIM-)
  • Usage LED strip lighting, indoor LED, decorative, architectural, and industrial lighting
  • Warranty 5 years

Weight0.759 kg
