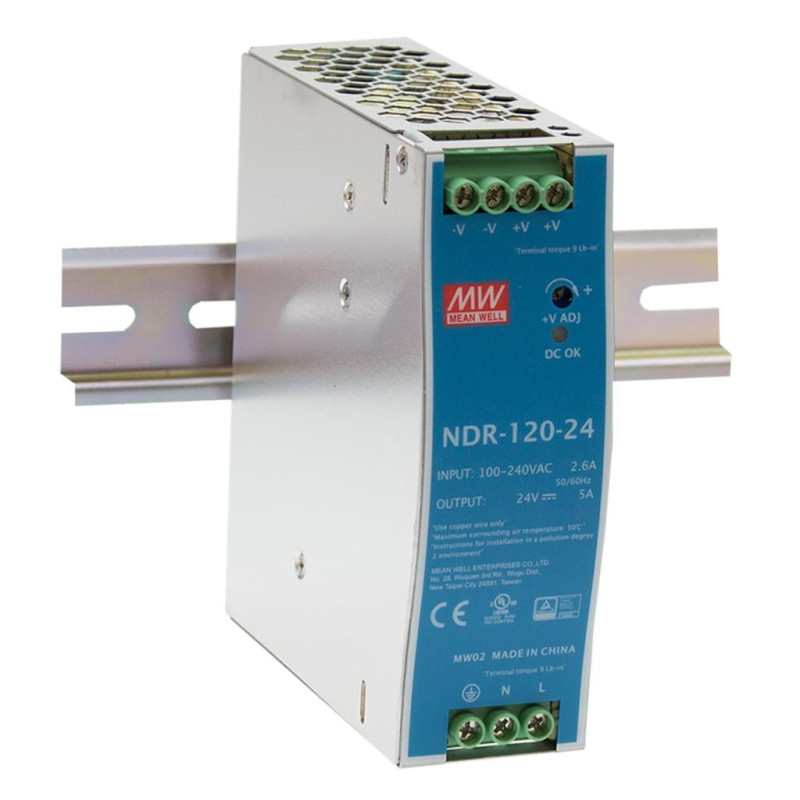

Switching power supply 24V 120W 5A, DIN rail mount, MEAN WELL, NDR-120-24
Product reference: 26-4711287422268
  • Type: Switching power supply
  • Model: NDR-120-24
  • Input voltage: 90-264 VAC
  • Output voltage: 24-28 VDC
  • Power: 120W
  • Current: 5 A
  • Temperature range: -20°C ÷ +70°C
  • Power Factor Correction (PFC): Yes
  • Mounting: On DIN 35 mm rail
  • With potentiometer
  • Protection class: OVC III
  • Dimensions: 40x125.2x113.5 mm
  • Brand: MEAN WELL
Switching power supply 24V 120W 5A, DIN rail mount, MEAN WELL, NDR-120-24

Switching power supply 24V 120W 5A, DIN rail mount, MEAN WELL, NDR-120-24

Product reference: 26-4711287422268
  • Type: Switching power supply
  • Model: NDR-120-24
  • Input voltage: 90-264 VAC
  • Output voltage: 24-28 VDC
  • Power: 120W
  • Current: 5 A
  • Temperature range: -20°C ÷ +70°C
  • Power Factor Correction (PFC): Yes
  • Mounting: On DIN 35 mm rail
  • With potentiometer
  • Protection class: OVC III
  • Dimensions: 40x125.2x113.5 mm
  • Brand: MEAN WELL
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
4440 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Model NDR-120-24
  • DC voltage 24V
  • Rated current 5A
  • Current range 0~5A
  • Power 120W
  • Voltage regulation range 24~28V
  • Ripple Noise (max.) 120mVp-p
  • Voltage tolerance ±1.0%
  • Linear regulation ±0.5%
  • Load regulation ±1.0%
  • Setup and startup time 1200ms, 60ms/230VAC; 2500ms, 60ms/115VAC at full load
  • Retention time (typ.) 16ms/230VAC; 10ms/115VAC at full load
  • Voltage range 90~264VAC; 127 ~ 370VDC (DC input operation possible by connecting AC/L(+), AC/N(-))
  • Frequency range 47~63Hz
  • Performance (typ.) 88%
  • Alternating current (typ.) 2.25A/115VAC; 1.3A/230VAC
  • Inrush current (typ.) 20A/115VAC; 35A/230VAC
  • Leakage Current <1mA/240VAC
  • Overload protection 105 ~ 130% rated output power (constant current limiting, recovers automatically after fault removal)
  • Surge protection 29 ~ 33V (shut down output voltage, re-power on to recover)
  • Over Temperature Protection Shut down output voltage, re-power on to recover
  • Voltage withstand I/PO/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 0.5KVAC
  • Insulation resistance I/PO/P, I/P-FG, O/P-FG: > 100M Ohms / 500VDC / 25°C / 70% RH
  • Operating temperature -20 ~ +70°C (Refer to "Derating Curve")
  • Moisture resistance 20 ~ 95% RH non-condensing
  • Storage temperature and humidity -40 ~ +85°C, 10 ~ 95% RH non-condensing
  • Temp. Coefficient ±0.03%/°C (0 ~ 50°C)
  • Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Compliance to IEC60068-2-6
  • MTBF 2636.8K hrs min. (Telcordia SR-332); 453.3K hrs min. (MIL-HDBK-217F at 25°C)
  • Size 40mm (W) x 125.2mm (H) x 113.5mm (D)
  • Weight 0.6Kg; 20pcs/13Kg/1.02CUFT
  • Certificates IEC62368-1, UL508, BS EN/EN62368-1, EAC TP TC 004, BS EN/EN60204-1
  • EMC radiation BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2, -3, EAC TP TC 020
  • EMC immunity EN61000-4-2,3,4,5,6,8,11, EN55035, EN61000-6-2 (EN50082-2), Heavy Industry Level
  • Working height Up to 2000 meters
  • LED indicator DC OK
  • Cooling method Free air convection
  • Installation Type DIN Rail TS35/7.5 or TS35/15
