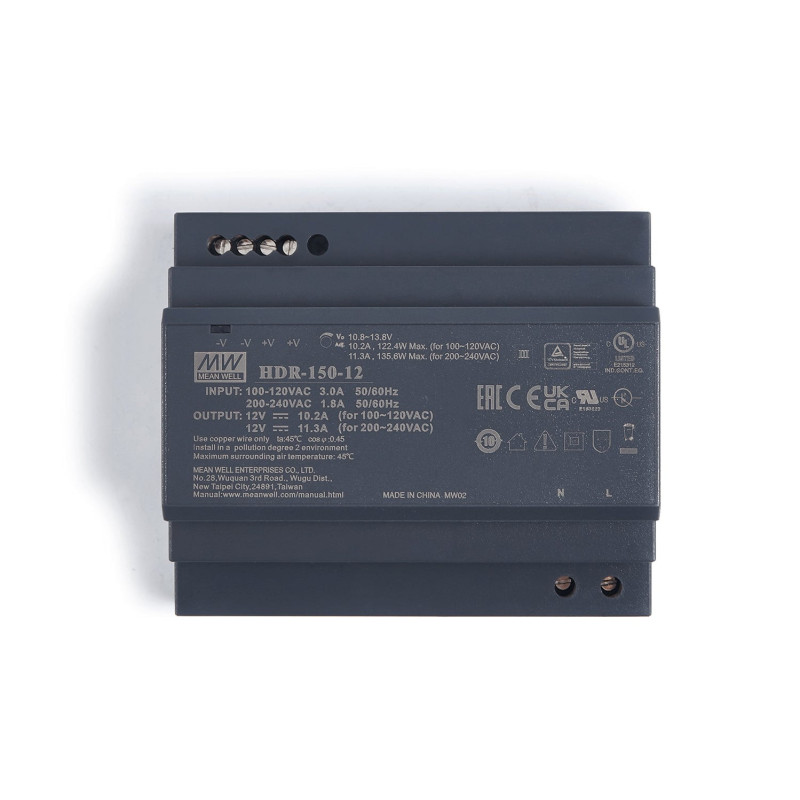

Switching power supply 12V 135.6W 11.3A, DIN rail mount, MEAN WELL, HDR-150-12
Product reference: 26-4711287421841
  • Type: Switching power supply
  • Model: HDR-150-12
  • Input voltage: 85-264 VAC (277 max.)
  • Output voltage: 10.8-13.8 VDC
  • Power: 135.6W
  • Current: 11.3 A
  • Temperature range: -30°C ÷ +70°C
  • Mounting: On DIN 35 mm rail
  • With potentiometer
  • Protection class: OVC III
  • Dimensions: 105x90x54.4 mm
  • Brand: MEAN WELL
Switching power supply 12V 135.6W 11.3A, DIN rail mount, MEAN WELL, HDR-150-12

Switching power supply 12V 135.6W 11.3A, DIN rail mount, MEAN WELL, HDR-150-12

Product reference: 26-4711287421841
  • Type: Switching power supply
  • Model: HDR-150-12
  • Input voltage: 85-264 VAC (277 max.)
  • Output voltage: 10.8-13.8 VDC
  • Power: 135.6W
  • Current: 11.3 A
  • Temperature range: -30°C ÷ +70°C
  • Mounting: On DIN 35 mm rail
  • With potentiometer
  • Protection class: OVC III
  • Dimensions: 105x90x54.4 mm
  • Brand: MEAN WELL
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
5104 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Model HDR-150-12
  • DC voltage 12V
  • Rated current 11.3A
  • Power 135.6W
  • Voltage regulation range 10.2 ~ 13.8V
  • Ripple Noise (max.) 120mVp-p
  • Voltage tolerance ±1.0%
  • Linear regulation ±1.0%
  • Load regulation ±1.0%
  • Setup and startup time 500ms, 30ms/230VAC; 500ms, 30ms/115VAC at full load
  • Retention time (typ.) 30ms/230VAC; 12ms/115VAC at full load
  • Voltage range 85~264VAC; 120 ~ 370VDC (277VAC operational, 390VDC operational)
  • Frequency range 47~63Hz
  • Performance (typ.) 90%
  • Alternating current (typ.) 3A/115VAC; 1.6A/230VAC
  • Inrush current (typ.) Cold start 57A/230VAC
  • Overload protection Constant current limiting, recovers automatically after fault removal
  • Surge protection Shut down o/p voltage, re-power on to recover
  • Voltage withstand I/PO/P: 4KVAC
  • Insulation resistance I/PO/P: 100M Ohms / 500VDC / 25°C / 70% RH
  • Operating temperature -30 ~ +70°C (Refer to "Derating Curve")
  • Moisture resistance 20 ~ 90% RH non-condensing
  • Storage temperature and humidity -40 ~ +85°C, 10 ~ 95% RH non-condensing
  • Temp. Coefficient ±0.03%/°C (0 ~ 45°C)
  • Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Compliance to IEC60068-2-6
  • MTBF 304.63K hrs min. (Telcordia SR-332); 535.9K hrs min. (MIL-HDBK-217F at 25°C)
  • Size 105mm (W) x 90mm (H) x 54.5mm (D)
  • Weight 0.31Kg; 32pcs/11Kg/1.0CUFT
  • Certificates IEC62368-1, UL62368-1, UL61010, BS EN/EN61558-2-16, EAC TP TC 004, BS EN/EN61558-1
  • EMC radiation BS EN/EN55032 (CISPR32) Class B
  • EMC immunity BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11
  • Working height Up to 2000 meters
  • LED indicator Power On
  • Cooling method Free air convection
  • Installation Type DIN Rail TS35/7.5 or TS35/15

Weight0.319 kg
